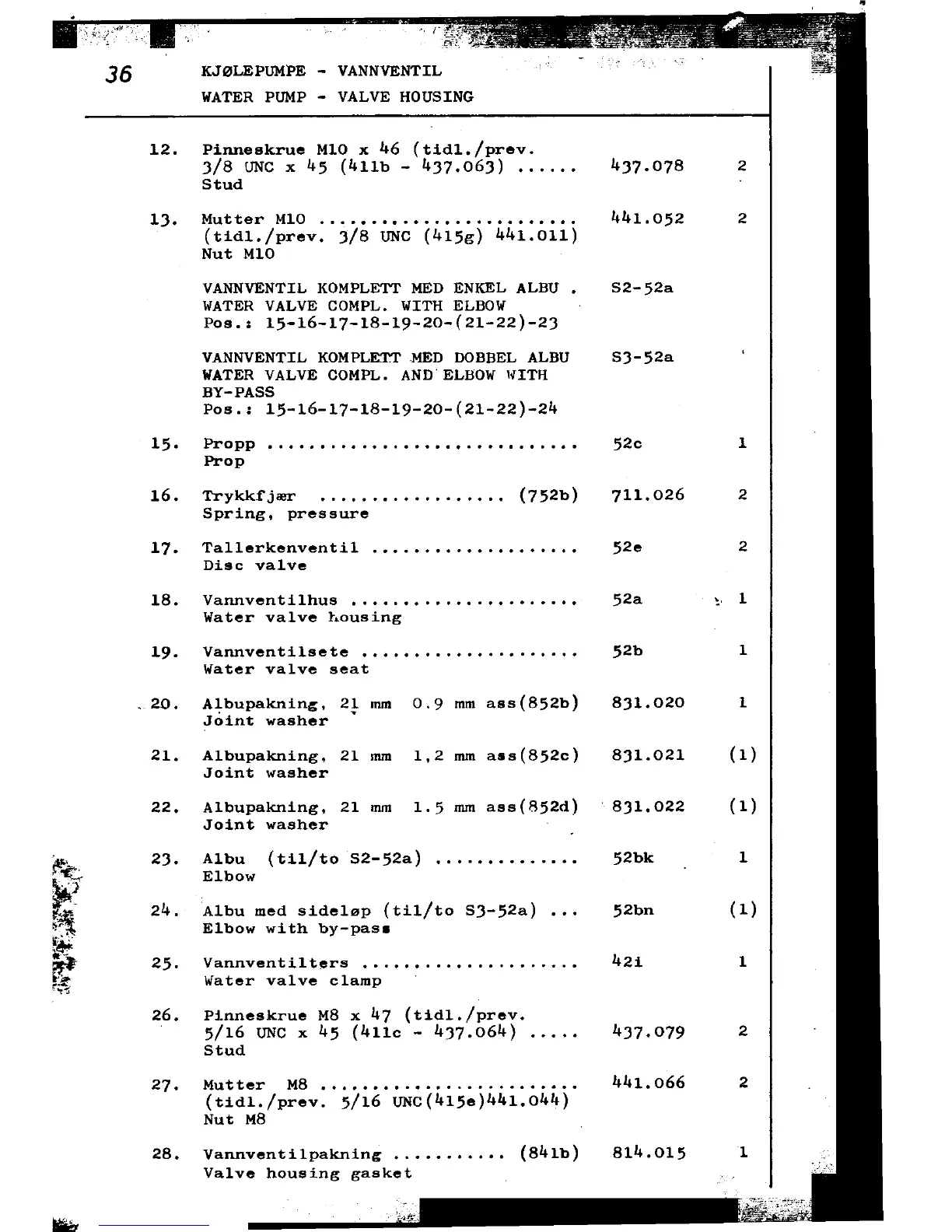

SABB MOTOR 2H - Page 88

~
36 KJ~LEPUMPE - VANNVE
WATER PUMP - VALVE HO
12. Pinneskrue MlO x 46 (tid1./prev.
t 3/8 UNC x 45 (411b - 437.063) .. 437.078 2
Stud
13. Mutter MlO 441.052 2
(tid1./prev. 3/8 UNC (415g) 441.011)
Nut MlO
VANNVENTIL KOMPLETT MED ENKEL ALBU. S2-52a
WATER VALVE COMPL. WITH ELBOW
Pos.: 15-16-17-18-19-20-(21-22)-23
VANNVENTIL KOMPLETT MED DOBBEL ALBU S3-52a
WATER VALVE COMPL. ANDELBOW WITH
BY-PASS
Pos.: 15-16-17-18-19-20-(21-22)-24
15. Propp , 52c 1
Prop
16. Trykkfj~ ... """"" (752b) 711.026 2
Spring, pressure
17. Ta11erkenventil 52e 2
Disc va1ve
18. Vannventilhus 52a ~ 1
Water valve housing
19. Vannventilsete 52b
Water valve Beat
.20. Albupakninc-. 21 'TUD 0.9 mm ass(852b) 831.020 1
Joint washer'
21. Albupakning. 21 mm 1,2 mm ass(852c) 831.021 (1)
Joint washer
22. Albupakning. 21 mm 1.5 mm ass(852d) (1)
Joint washer
23. A1bu (ti1/to S2-52a) 52bk 1
E1bow
24. Albu med side10p (ti1/to S3-52a) ... 52bn (1)
E1bow with by-pas8
25. Vannventilt~rs 42i 1
Water valve clamp
26. P:I.nneskrue M8 x 47 (tidl./prev.
5/16 UNC x 45 (411c - 437.064) 437.079 2
Stud
27. Mutter M8 441.066 2
(tid1./prev. 5/16 UNc(415e)441.044)
Nut M8
28. Vannventilpakning ... 814.015 1
Valve housing gasket
