2.5 RGU Installation
The RGU(Ring Generator Unit) is designed to provide sine-wave ring for Single Line
Telephones connected to the various SLT(Single Line Telephone) interface cards(2/8SLI,
6MWSLI) installed in each universal slots in the system.
The RGU can be mounted in the Basic KSU by offered screw.
The Cable Assembly (4Pin) of RGU should be connected to connector P11 of 008 Base
board. (See Figure 2.9)

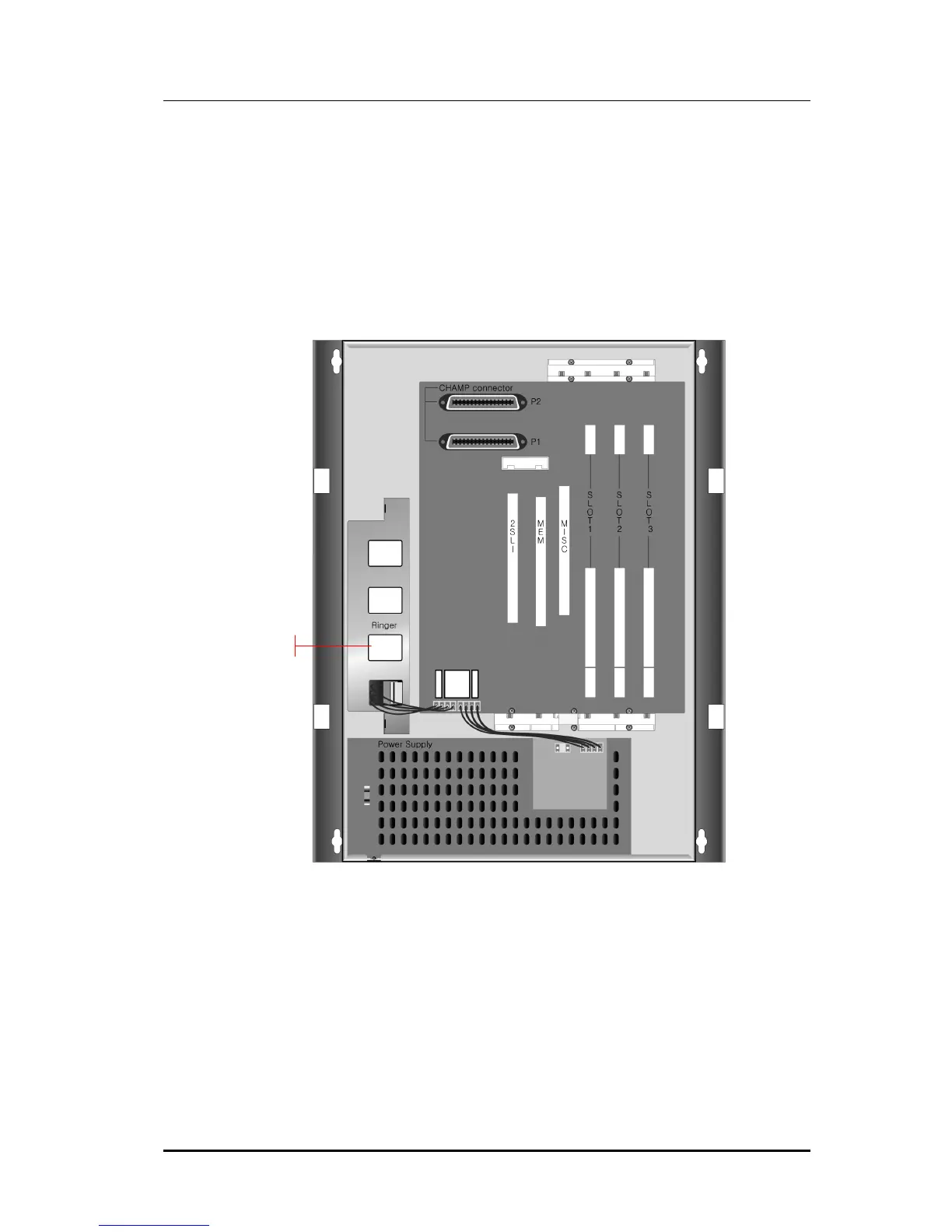

Figure 2.9 Installation of RGU
RGU
