OfficeServ 100 Installation Manual/Ed.00
© SAMSUNG Electronics Co., Ltd. 5-3
25 PAIR CABLE WITH FEMALE CONNECTOR TO BASIC P1
CO-PROVIDED
NETWORK ACCESS JACK
RJ 11C
RJ 14C
RJ 21X
5.2 OPS (Off Premised Station)
Using one pair twisted #24 AWG or #26 AWG wire, cross-connect each any 2SLI port to
telephone company OPS circuits.(See Figure 5.2)
FUNCTION CIRCUIT PIN COLOR
SLT TIP
SLT RING
1
16
41
Blue/yellow
Yellow/blue
SLT TIP
SLT RING
2
15
40
Grey/black
Black/gray

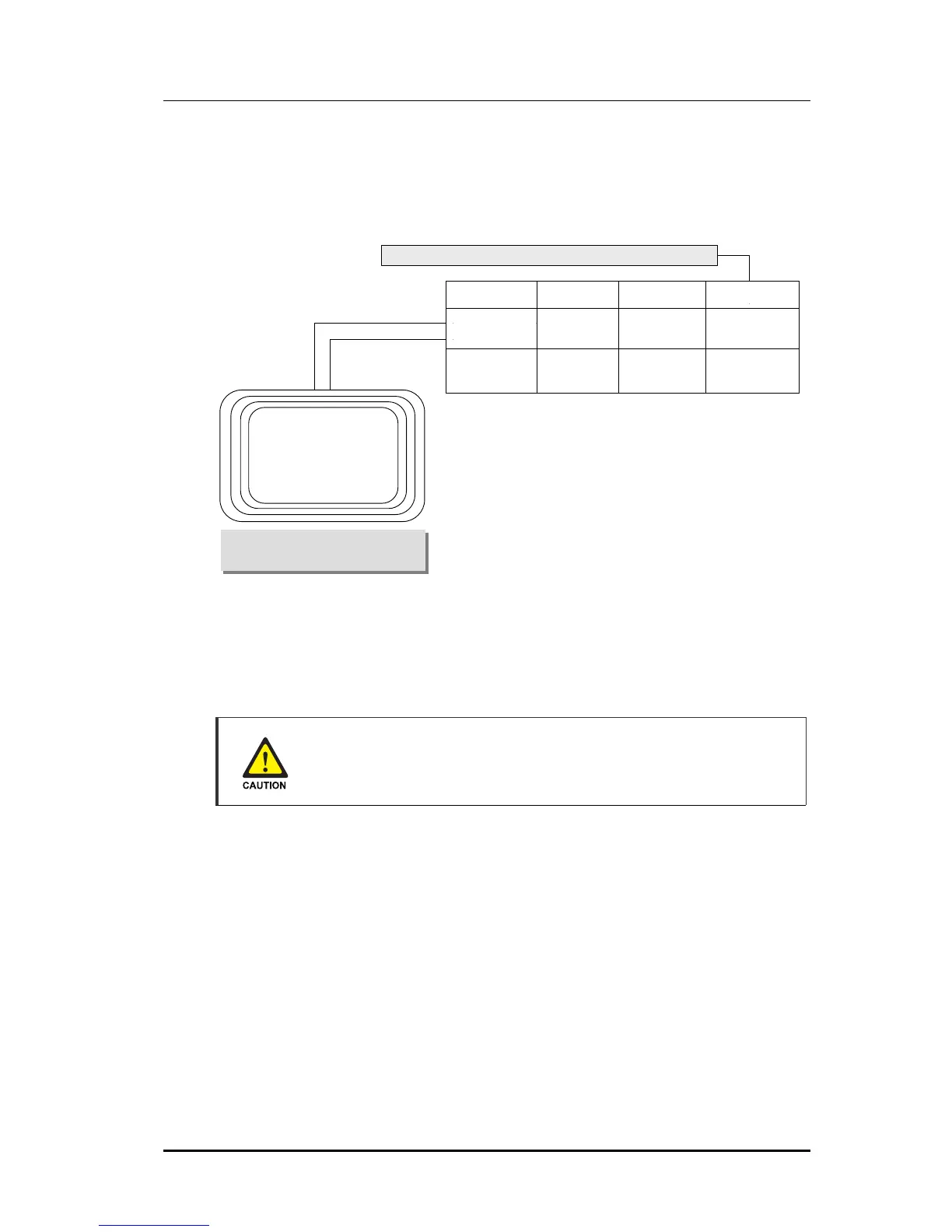

Figure 5.2 MDF Connections Off Premise Extension from 2 SLI Card
Circuit on 2SLI card is specially designed to meet CO requirements for OPS use.
These circuits are provided with the same over voltage and over current protection as CO
Line circuit.
When using long line Extension
Using long line(over 1 Km) Extensions on a 8SLI or KDB SLI may cause damage
to your equipment.
CONNECT TO ANY CIRCUIT
ON 2 SLI CARD
