Samsung OfficeServ 100 - 6.4 Door Phone and Door Lock Release

CHAPTER 6. Connecting Station Equipment
6-8 © SAMSUNG Electronics Co., Ltd.
25 PAIR CABLE WITH FEMALE CONNECTOR TO BASIC P1
6.4 Door Phone and Door Lock Release
Using one pair twisted #24 AWG or #26 AWG wire, cross-connect each DPIM to the DLI
port of your choice(See Figures 6.7 and 6.8). Next, connect the DPIM(Door Phone
Interface Module) to the door phone using #24 AWG or #26 AWG twisted pair wire.
PIN COLOR CIRCUIT FUNCTION
25
50
Grey/purple
Purple/grey
1
DLI TIP
DLI RING
24
49
Brown/purple
Purple/brown
2
DLI TIP
DLI RING
23
48
Green/purple
Purple/green
3
DLI TIP
DLI RING
22
47
Orange/purple
Purple/orange
4
DLI TIP
DLI RING
21
46
Blue/purple
Purple/blue
5
DLI TIP
DLI RING
20
45
Grey/yellow
Yell ow/ grey
6
DLI TIP
DLI RING
19
44
Brown/yellow
Yell ow/ brown
7
DLI TIP
DLI RING
18
43
Green/yellow
Yellow/green
8
DLI TIP
DLI RING

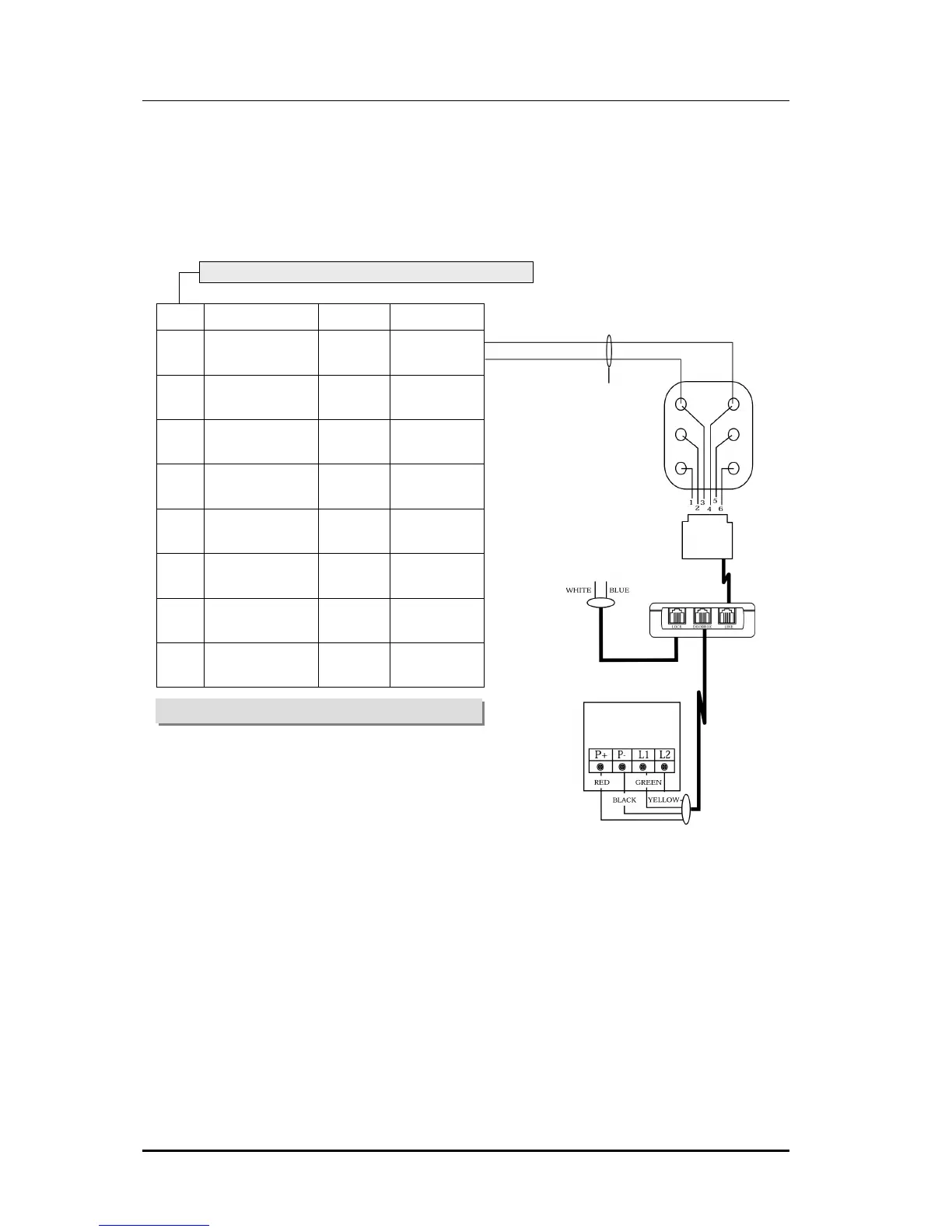

Figure 6.7 MDF Connections Door Phone to Basic KSU P1
CONNECT TO ANY DLI CIRCUIT
DOOR PHONE
ONE PAIR TWISTED
SHEATHED STATION
CABLE 24 OR 26 AWG
TO CUSTOMER-PROVIDED
DOOR LOCK RELEASE
THREE PAIR
MODULAR CABLE
DOOR PHONE
INTERFACE
MODULE(DPIM)
TWO PAIR
MODULAR
CABLE
