Samsung OfficeServ 100 - Figure 6.11 WBS24-4 WLI Wiring Diagram

CHAPTER 6. Connecting Station Equipment
6-14 © SAMSUNG Electronics Co., Ltd.
Wiring Diagram between 4WLI and WBS24
WBS24 Side 4WLI Side
RJ-45 Pin
Base Cabinet
Station #
Signal
50P Champ
Pin
4, 5
D Channel data 25, 50
3, 6
SLOT1
# 1
Sync line 24, 49
4, 5 D Channel data 23, 48
3, 6
SLOT1
# 2
Sync line 22, 47
4, 5 D Channel data 21, 46
3, 6
SLOT1
# 3
Sync line 20, 45
4 5 D Channel data 19, 44
3, 6
SLOT1
# 4
Sync line 18, 43
4, 5 D Channel data 17, 42
3, 6
SLOT2
# 1
Sync line 16, 41
4, 5 D Channel data 15, 40
3, 6
SLOT2
# 2
Sync line 14, 39
4, 5 D Channel data 13, 38
3, 6
SLOT2
# 3
Sync line 12, 37
4, 5 D Channel data 11, 36
3, 6
SLOT2
# 4
Sync line 10, 35
4,5 D Channel data 9, 34
3, 6
SLOT3
# 1
Sync line 8, 33
4, 5 D Channel data 7, 32
3,6
SLOT3
# 2
Sync line 6, 31
4, 5 D Channel data 5, 30
3, 6
SLOT3
# 3
Sync line 4, 29
4, 5 D Channel data 3, 28
3, 6
SLOT3
# 4
Sync line 2, 27

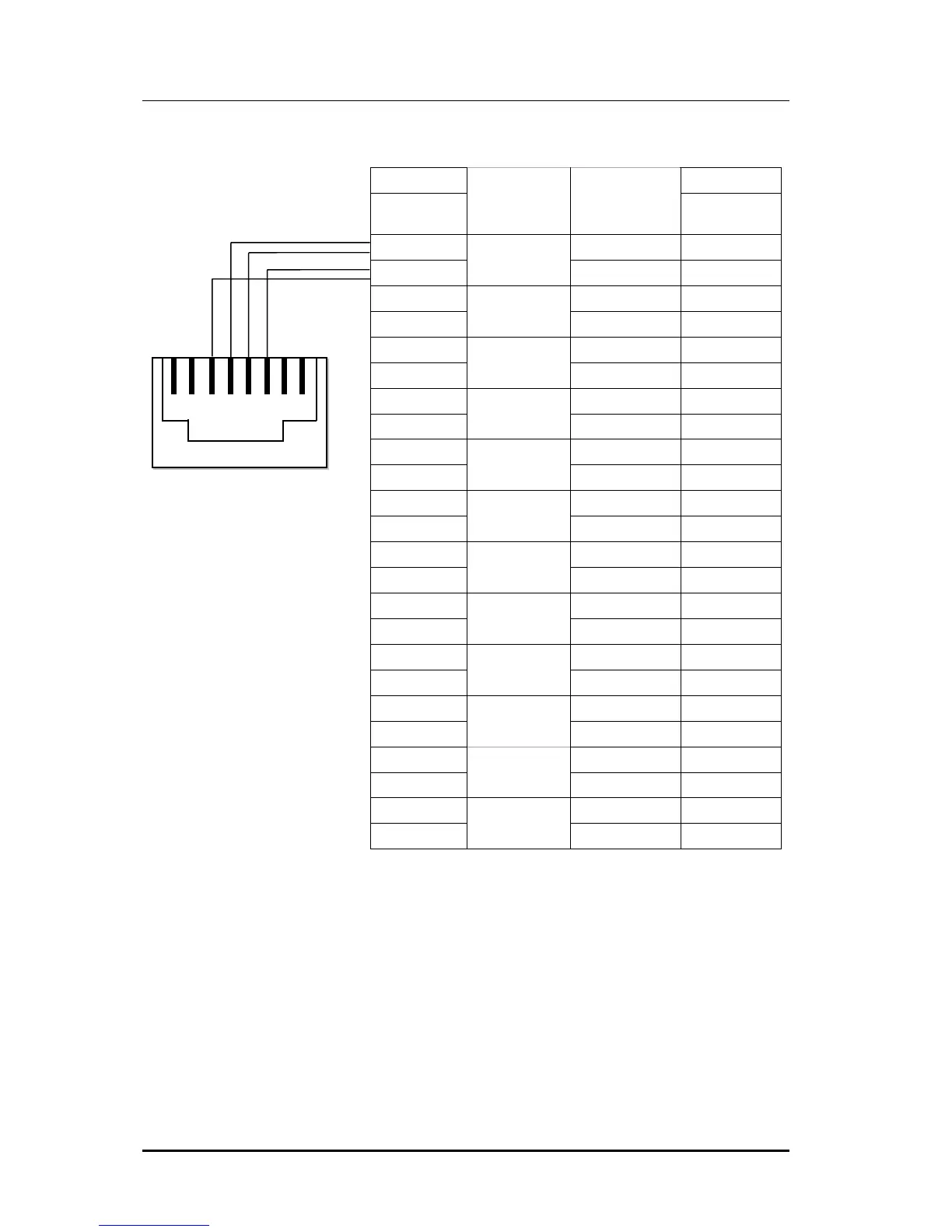

Figure 6.11 WBS24-4WLI Wiring Diagram
1 2 3 4 5 6 7 8
RJ-45 CONNECTOR
