Sanyo PLC-XP200L Service Manual

-11-
Maintenance
Turn off the projector and unplug the AC power cord.
Let the projector to cool for at least 45 minutes.
Loosen the screw and open the lamp cover and pull
out the lamp by using the built in handle.
1
3
Replace the lamp with a new one. Make sure that
the lamp is properly and fully inserted.
4
Open the filter cover.
2
Connect the AC power cord to the projector and turn on
the projector.
6

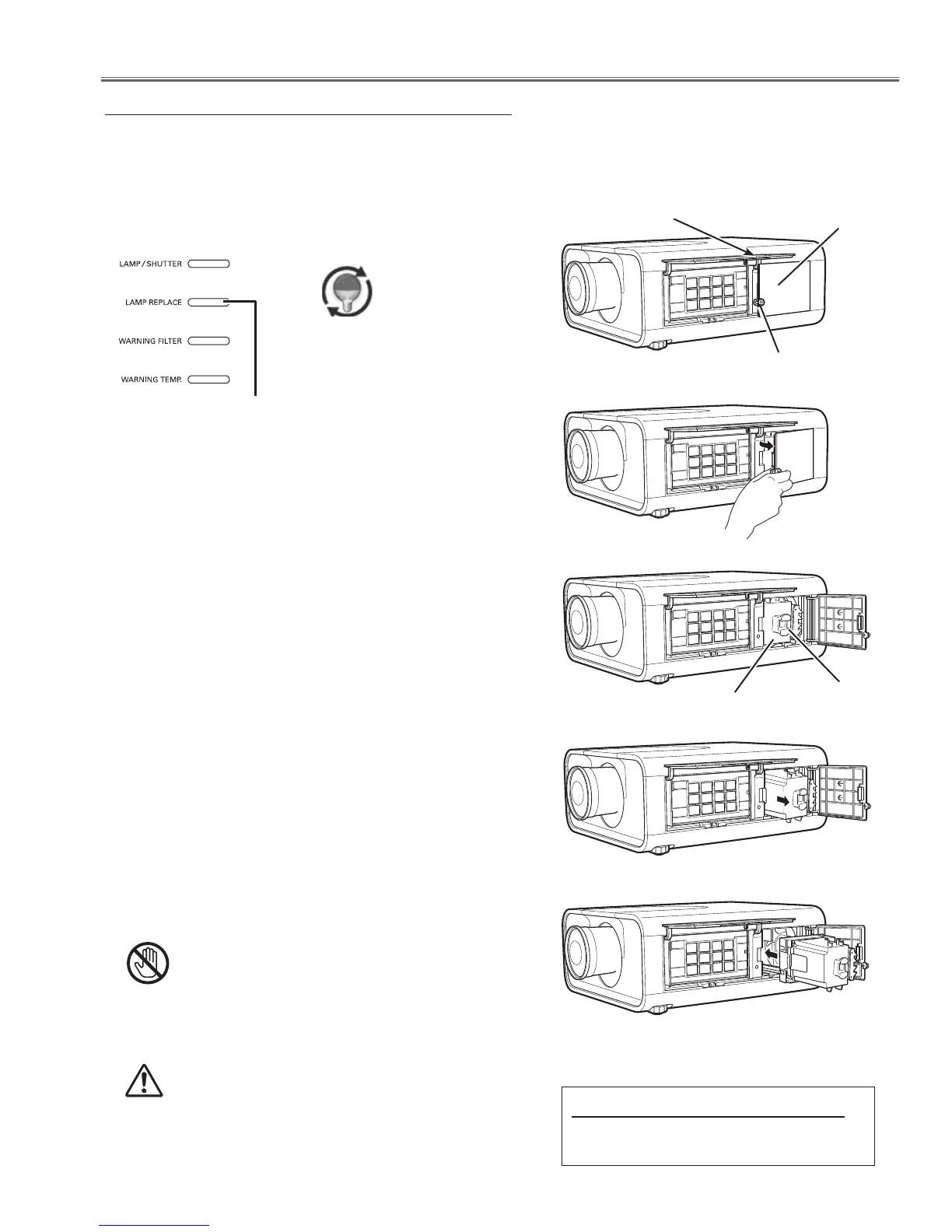

Follow these steps to replace the lamp.
Reset the Lamp replacement counter
5
Note:
• Be sure to insert the lamp in the correct direction.
• Do not reset the Lamp replacement counter when the pro
-
jection lamp is not replaced.
Lamp Replacement
For continued safety, replace with a lamp of the
same type. Do not drop the lamp or touch the glass
bulb! The glass can shatter and may cause injury.
Allow a projector to cool for at least 45 minutes
before you open the lamp cover. The inside of the
projector can become very hot.
CAUTION
CAUTION
When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen
and LAMP REPLACE indicator lights orange. Replace the lamp with a new one promptly. The timing when the LAMP
REPLACE indicator should light is depending on the lamp mode.
Top Panel
LAMP REPLACE indicator
Lamp replacement icon
7
Close the lamp cover and secure the screw, and
close the filter cover.
Lamp
Handle
Lamp cover
Filter cover
Screw
ORDER REPLACEMENT LAMP
Type No. POA-LMP124
Service Parts No. 610 341 1941

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
