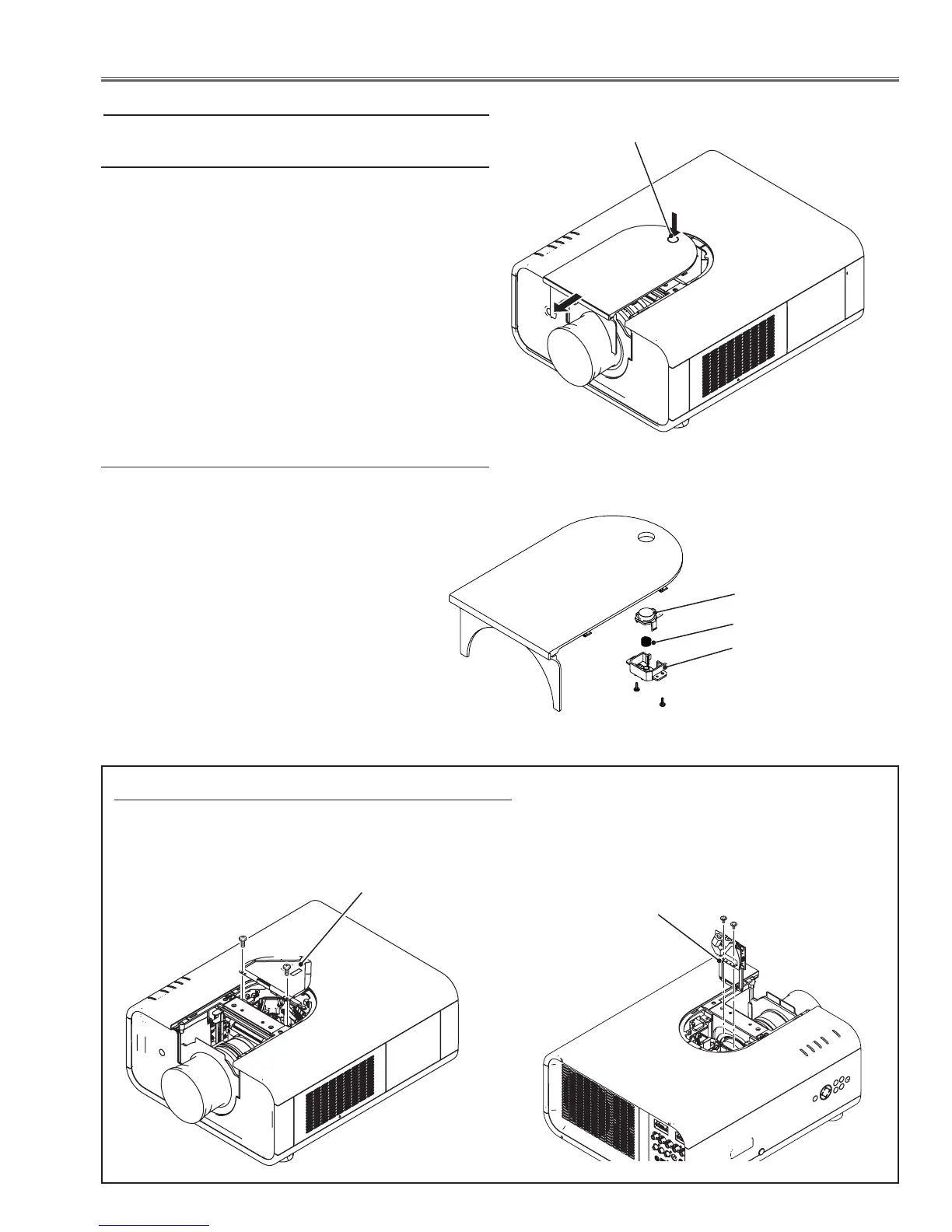

Mechanical Disassembly
Fig. 1-1
Mechanical disassembly
1-1 Cabinet front cover disassembly
1 Remove 2 screws A (T3x8) and take the release but-
ton, button holder and spring off.
Release Button
1 Cabinet front cover removal
1 Press the release button and slide the lamp cover to
the arrow direction and remove it.
Spring
Release button
Button holder
A
A
Shutter assy disassembly
1 Remove 2 screws A (M3x6) and take the prism shield cover off.
2 Remove 2 screws B (M2.5x5) and take the shutter assembly off.
A
A
Prism shield cover
B
B
Shutter assy
