-29-
Disassembly requires a 2.0mm or 2.5mm hex wrench and a slot screwdriver.
Optical Parts Disassembly

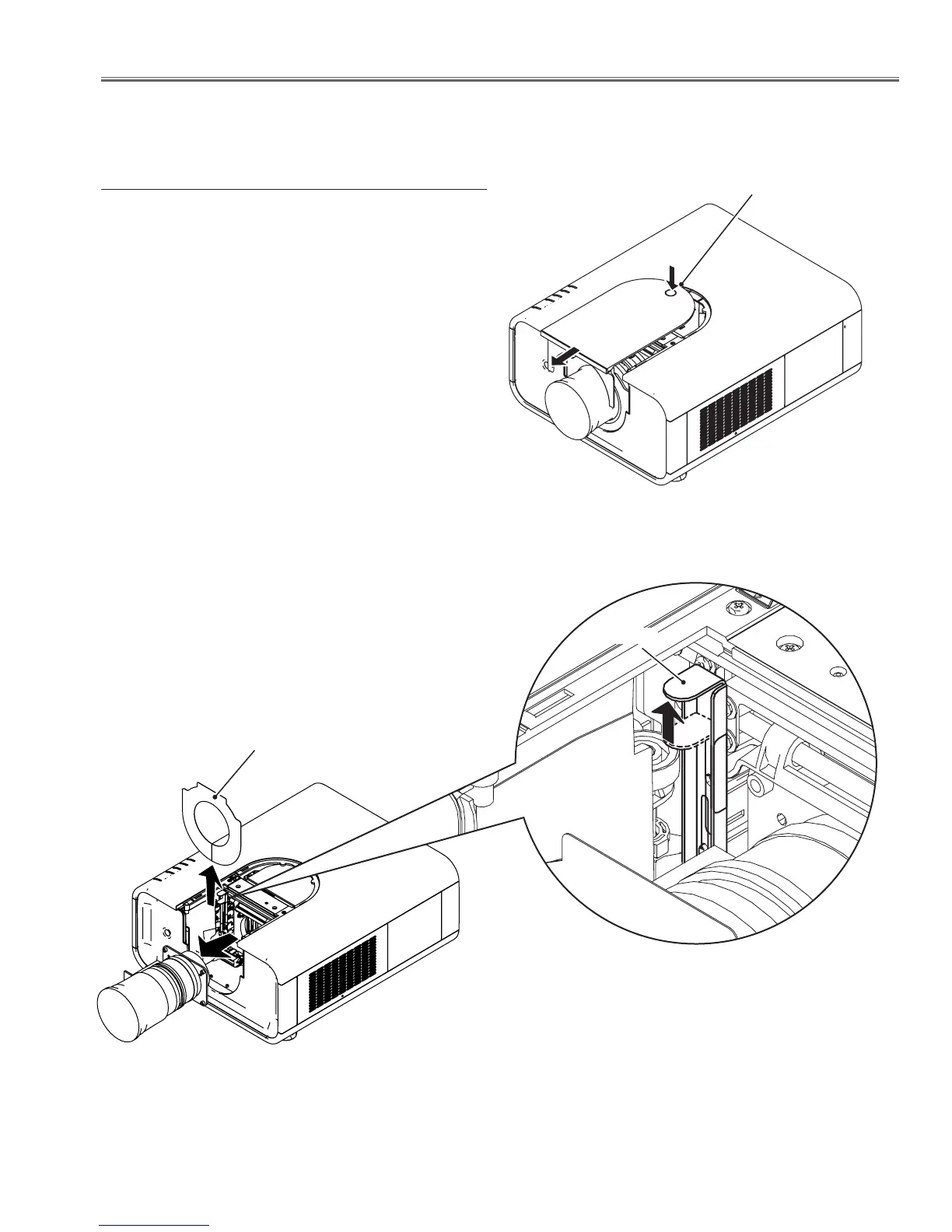

1 Projection lens removal
1 Set the projection lens to center position with lens shift
function.
2 Press and hold the release button on the cabinet front
cover and slide it in the arrow direction as shown in the
figure and open it.
3 Remove the light block plate upward off.
4 Slide the lens lock lever A on the projector to “UN-
LOCK” (UPPER) position and remove the Projection
Lens ass’y off.
Note : When making unlocking, attach your hand to pre-
vent the lens fall.
Lever A
Release button
Light block plate
To Next Page
