Mechanical Disassembly

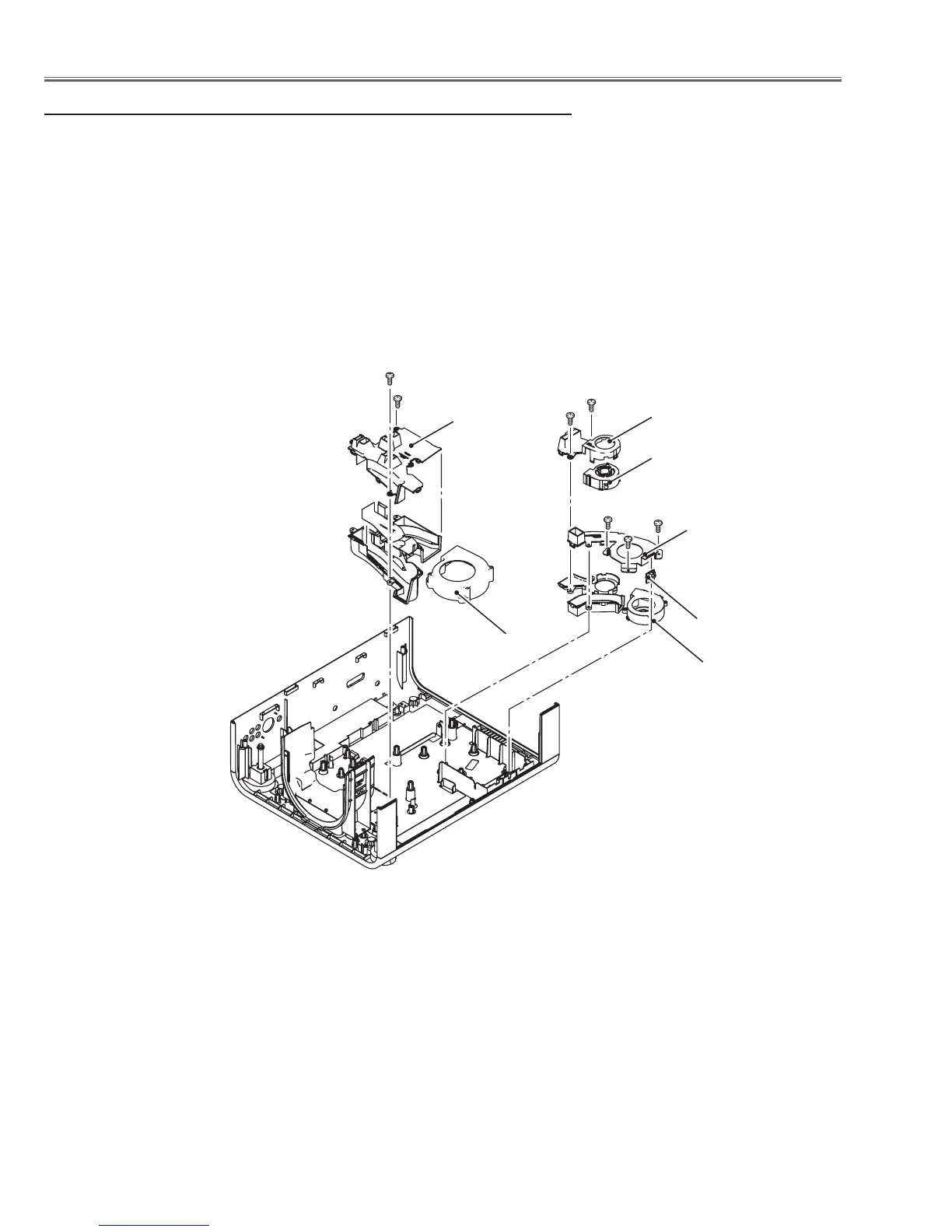

11 Fans (FN902, FN903, FN908) and duct removal
1 Remove fan (FN902) upward off.
2 Remove 2 screws A (T3x8) and take the duct top (LCD) upward off.
3 Remove 5 screws B (T3x8) and take the duct (PBS) upward off and remove
fan (FN908) off.
4 Take the duct top (LMP) upward off and remove the lamp cover switch
board off.
5 Remove fan (FN903) upward off.
B
FN902
A
A B
FN903
Duct (PBS)
Lamp cover
switch board
FN908
Duct top
(LCD)
Duct top (LMP)
