Sanyo PLC-XP200L Service Manual

-24-
Mechanical Disassembly

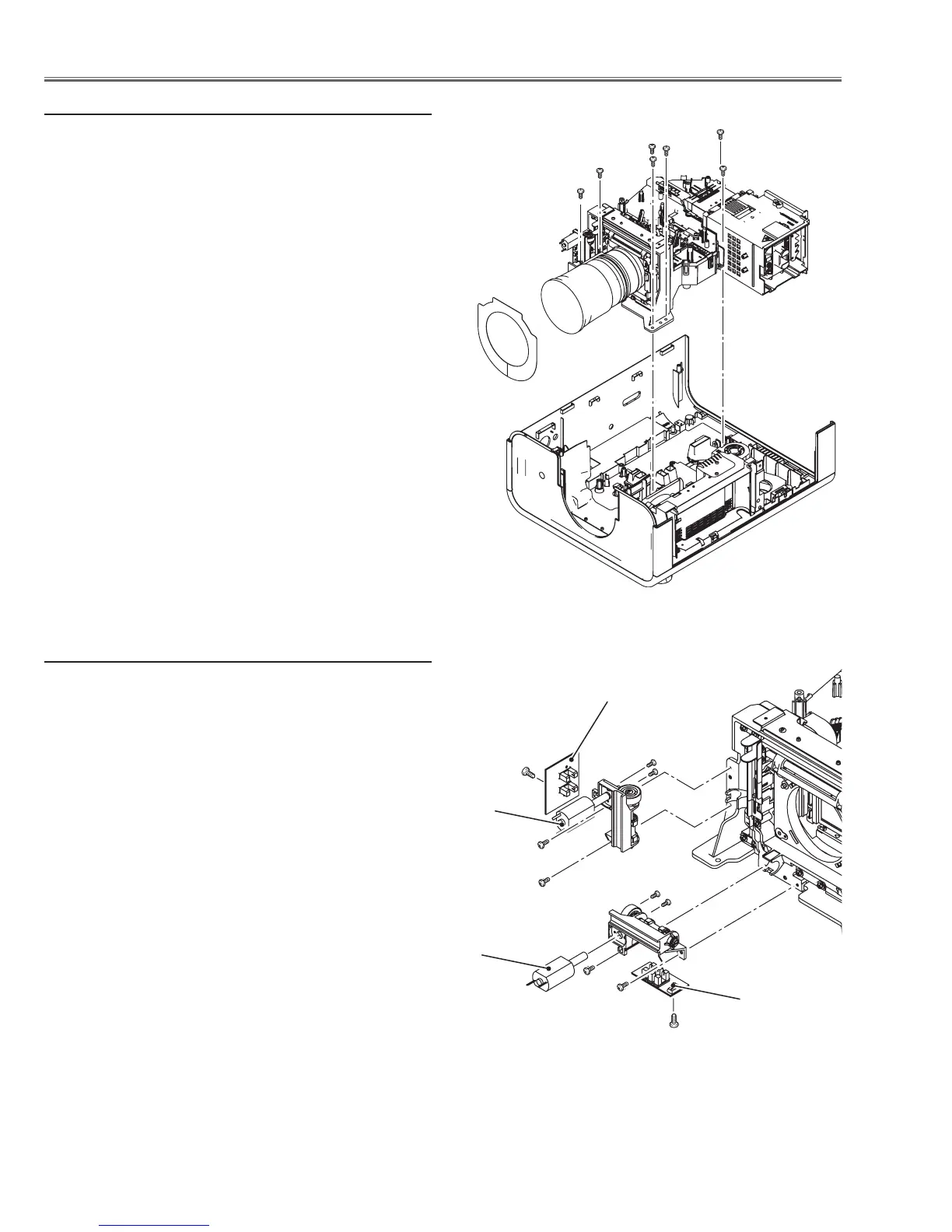

8 Optical unit removal
1 Remove 7 screws A (T4x16), disconnect ballast socket
and take the optical unit upward off.
8-1 Lens shift motor ass’y removal
1 Remove 2 screws B (M3x6) and take the lens shift mo-
tor ass’y off.
2 Remove 1 screw C (T3x6) and take the lens shift sen-
sor board off.
3 Remove 2 screws D (T2x4) and take the lens shift mo-
tor off
Lens shift motor
B
B
B
B
C
C
D
D
Lens shift motor
Sensor board
Sensor board
A
A
A
A
A
AA

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
