Sanyo PLC-XP200L Service Manual

-14-

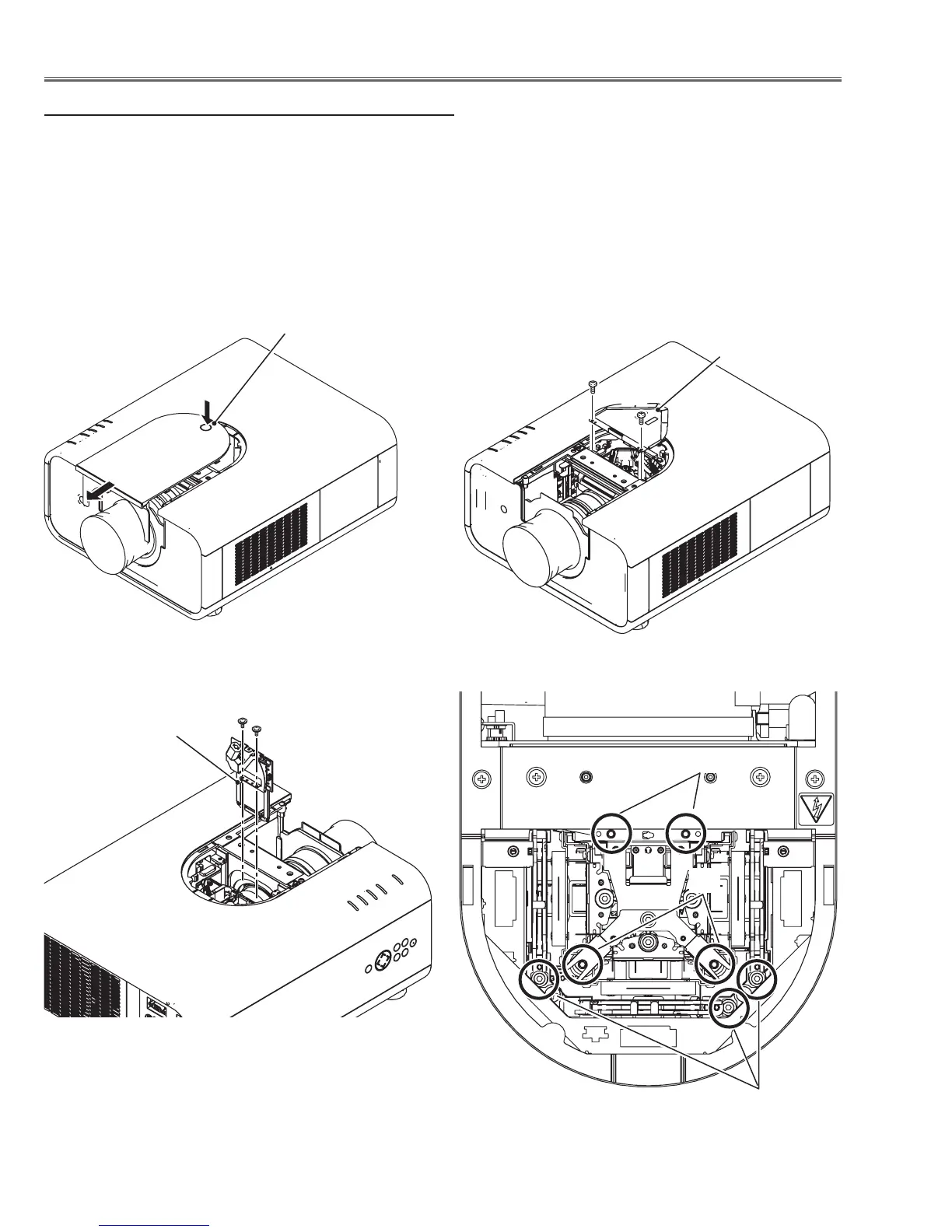

This projector provides a cabinet front cover on the cabinet top to enhance the service maintenance. This enables
service personnel to align the optical adjustment or replace the optical parts without disassembly the cabinet top.
1. Press and hold the release button on the cabinet front cover and slide the cover frontward to take it off (Fig. 1).
2. Remove 2 screws A on the prism shield cover and take prism shield cover off (Fig. 2).
3. Remove 2 screws B and take the shutter assembly off (Fig. 3).
4. Loosen 4 screws C and take the LCD Panel/Prism ass'y upward off.
5. Remove 1 screw D on each stopper of the optical filter ass'y and take the optical filter ass'y upward off.
See chapter "Optical Parts Disassembly" for further information of optical parts disassembly.
Maintenance
Quick maintenance
Release button
Prism shield cover
A
A
C
C
D
Fig. 3
Fig. 4
B
B
Shutter assembly
Fig. 1 Fig. 2

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
