Sanyo PLC-XP200L Service Manual

KR7-XP200L00
-97-
Electrical Parts List

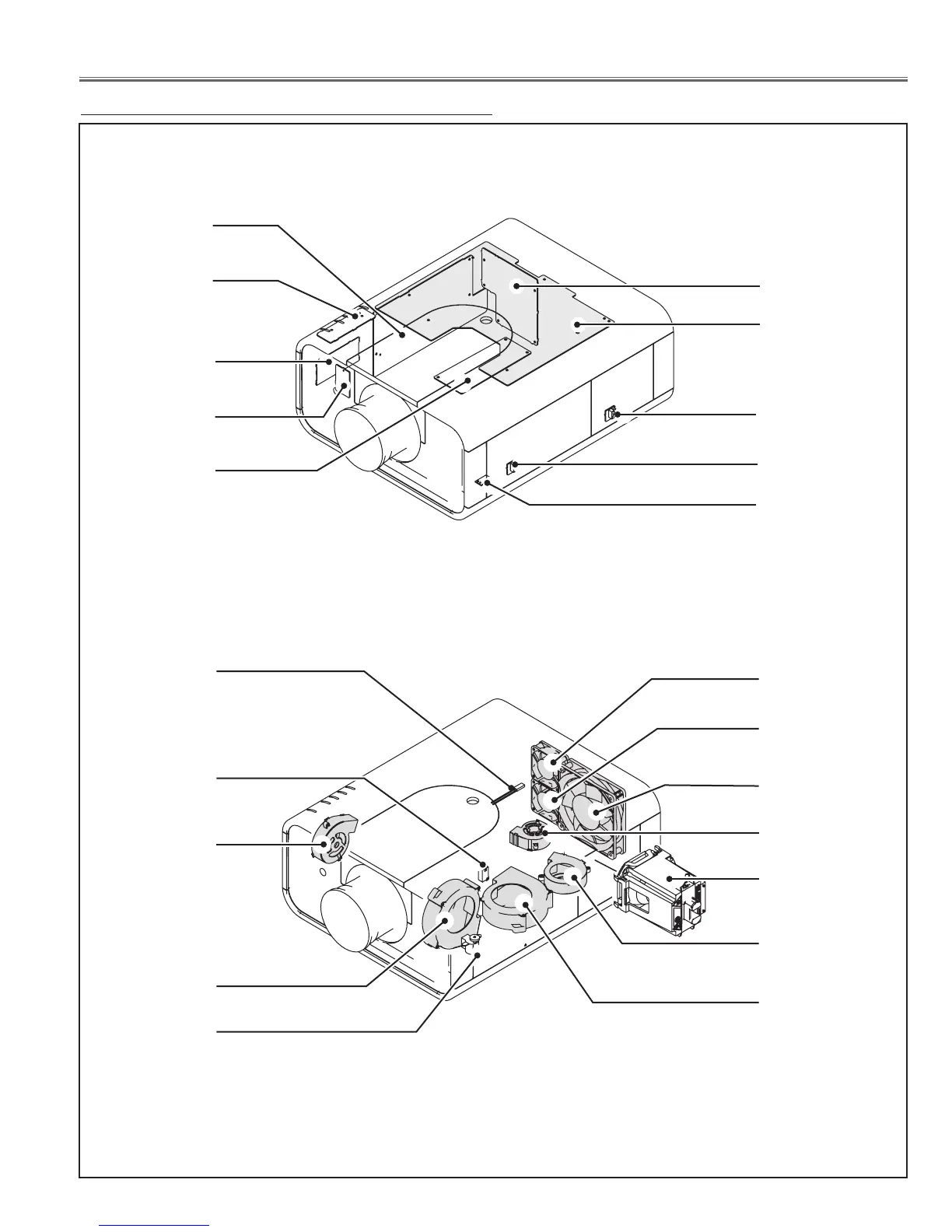

Electrical Parts Location
● Assemblied Boards
FN907
Cooling Fan
(Power)
Main Board
LP900
Lamp Ass’y
Control Board
● Out Of Circuit Board
LED Board
AV Board
FN901
Cooling Fan
FN905
Cooling Fan
SW905
Thermal
Protector
FN906
Cooling Fan
FN904
Cooling Fan
RC Front Board
Cover SW Board
Filter SW Board
Sensor Board
A901
Ballast Board
A901
Power Board
M901
Filter Motor
S901
Wind Sensor
FN903
Cooling Fan
FN902
Cooling Fan
FN908
Cooling Fan

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
