Sanyo PLC-XP200L Service Manual

-32-
Optical Parts Disassembly

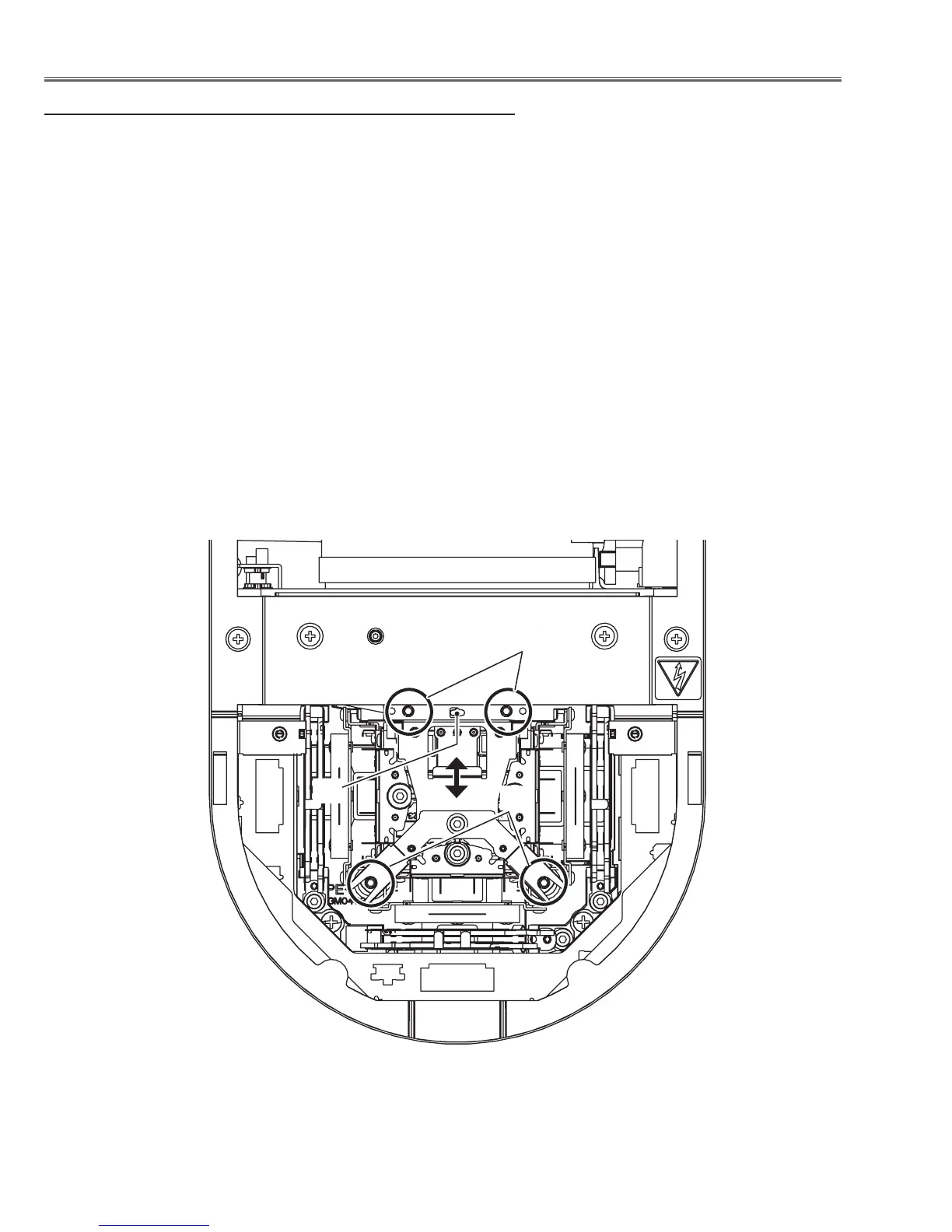

Note on LCD Panel/Prism Ass’y Mounting
After replacing or installing the LCD Panel/Prism ass’y, please make
sure to obtain the best focus in both TELE and WIDE zoom. If the
focus adjustment is required, please adjust the positioning of LCD
Panel/Prism Ass’y following to the procedure below.
Focus adjustment:
1 Loosen 4 screws A on the LCD Panel/Prism ass’y with 2.0 mm hex
driver.
2 Turn the projector on and project the image with WIDE zoom, and
adjust the FOCUS control to obtain the best focus.
3 Turn the ZOOM control to the TELE position.
4 Insert a flat screw driver into the slot B and move the LCD Panel/
Prism Ass’y backward or forward by turning the screwdriver left
or right to obtain the proper focus. Confirm the focus at TELE and
WIDE zoom.
5 Tighten 4 screws A to fix the LCD Panel/Prism ass’y.
A
A
B

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
