Optical Parts Disassembly

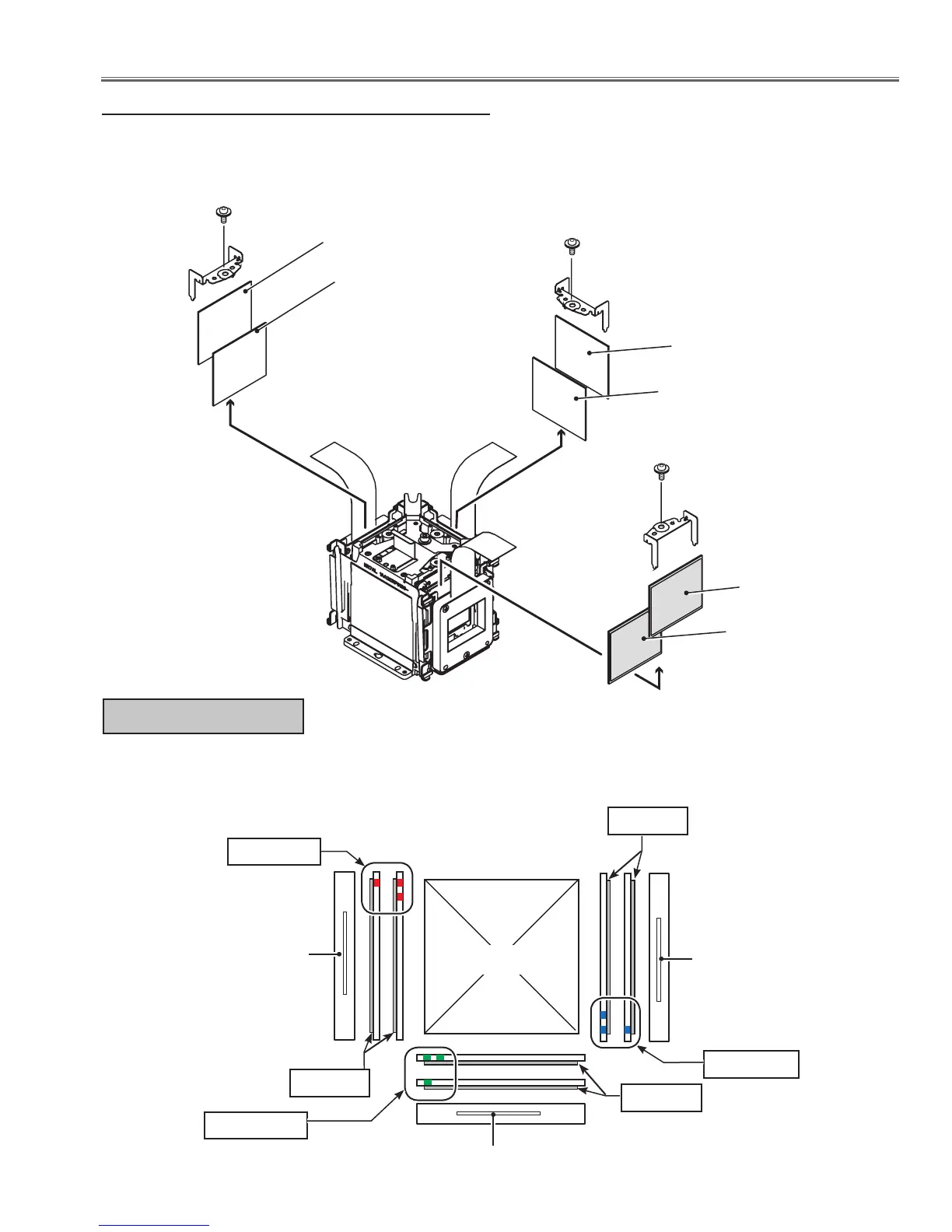

2-1 Polarized glasses-out removal
1 Remove 1 screw D (M2.5x6) on each stopper and take
the polarized glasses upward off.
D
D
D
Polarized glass-out (B)
Pre-Polarized glass (B)
Polarized glass-out (G)
Pre-Polarized glass (G)
Polarized glass-out (R)
Pre-Polarized glass (R)
(Green)
(Red)
(Blue)
Mount the pre-polarized glasses and polarized glasses as shown in the figure below.
Mounting direction
LCD panel/Prism top view
B-LCD panel
G-LCD panel
R-LCD panel
Prism
Film side
Film side
Film side
Green Marker
Blue Marker
Red Marker
