Sanyo PLC-XP200L Service Manual

-21-

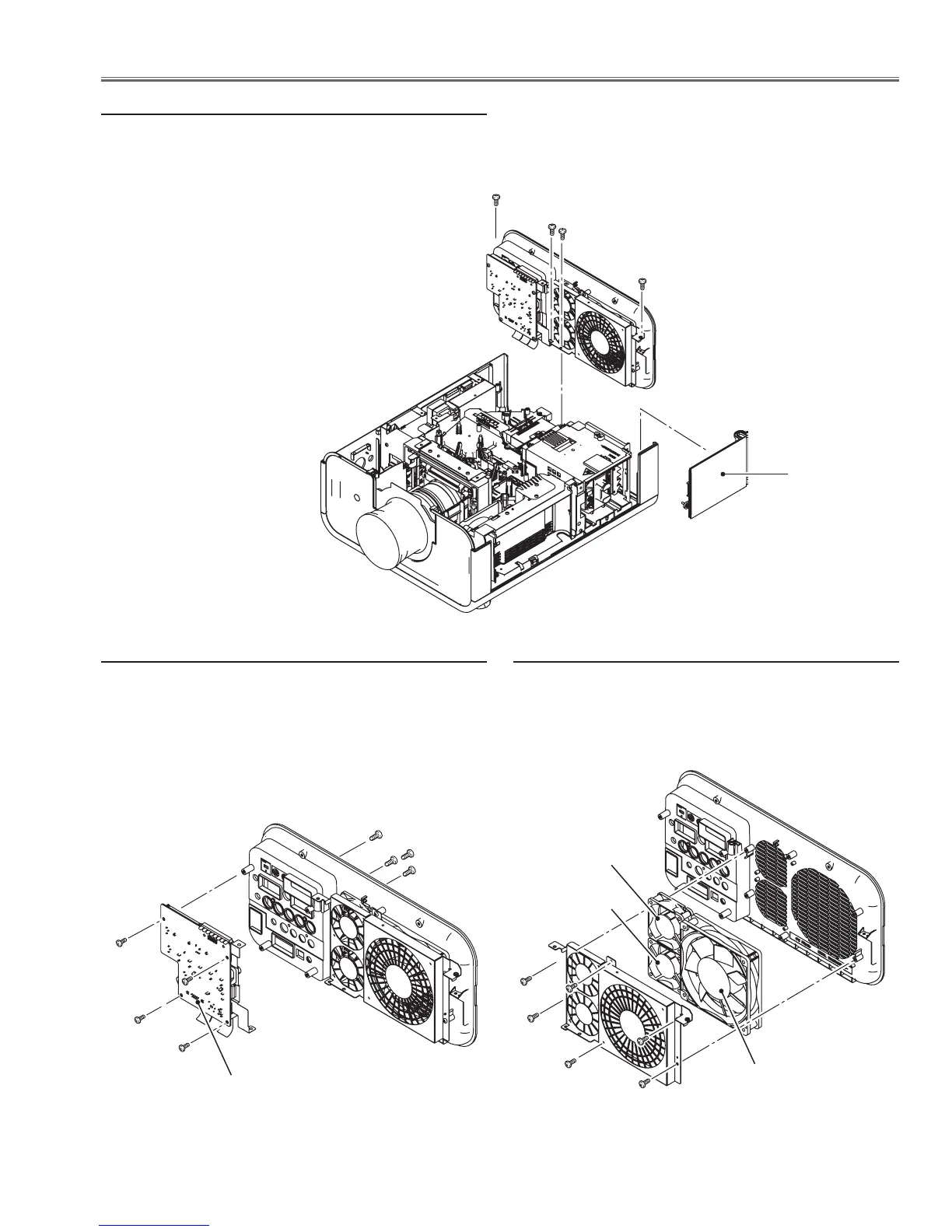

Mechanical Disassembly
5 Cabinet back ass’y removal
1 Remove 3 screws A (T3x8) and 1 screw B (M3x6) and
take the cabinet back ass’y upward off.
5-1 AV board removal
1 Remove 4 screws D (T3x8) and 4 screws E (T3x10-
black) and take the AV board off.
5-2 Fans (FN904, FN905, FN906) removal
1 Remove 6 screws F (T3x8) and take the fans (FN904,
FN905, FN906) off.
Lamp cover
A
A
B
A
D
E
F
AV board
FN904
FN905
FN906
D
D
D

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
