Sanyo PLC-XP200L - Ballast Box Removal; Ballast Box Disassembly

-23-
Mechanical Disassembly

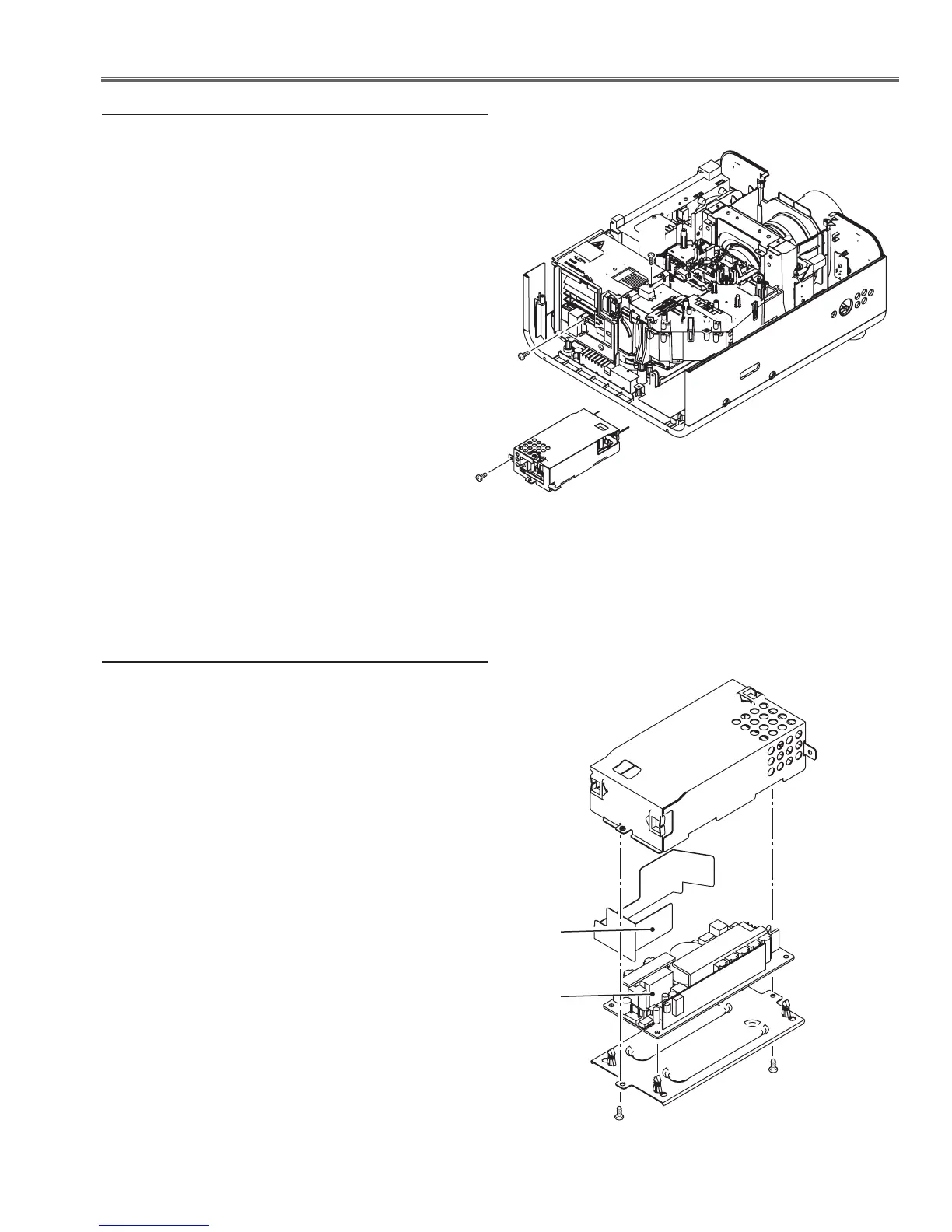

7 Ballast box removal
1 Remove 1 screw A (M3x6) and disconnect the lamp
ballast socket.
2 Remove 1 screw B (T3x10) and take the ballast trigger
off.
3 Remove 1 screw C (M4x8) and pull the ballast box
backward and remove it off.
7-1 Ballast box disassembly
1 Remove 2 screws D (M3x6) and take the shield case
top off
2 Remove ballast board from the shield case bottom.
Ballast board
Isolation sheet
C
A
B
