Sanyo PLC-XP200L Service Manual

-18-
Mechanical Disassembly
A

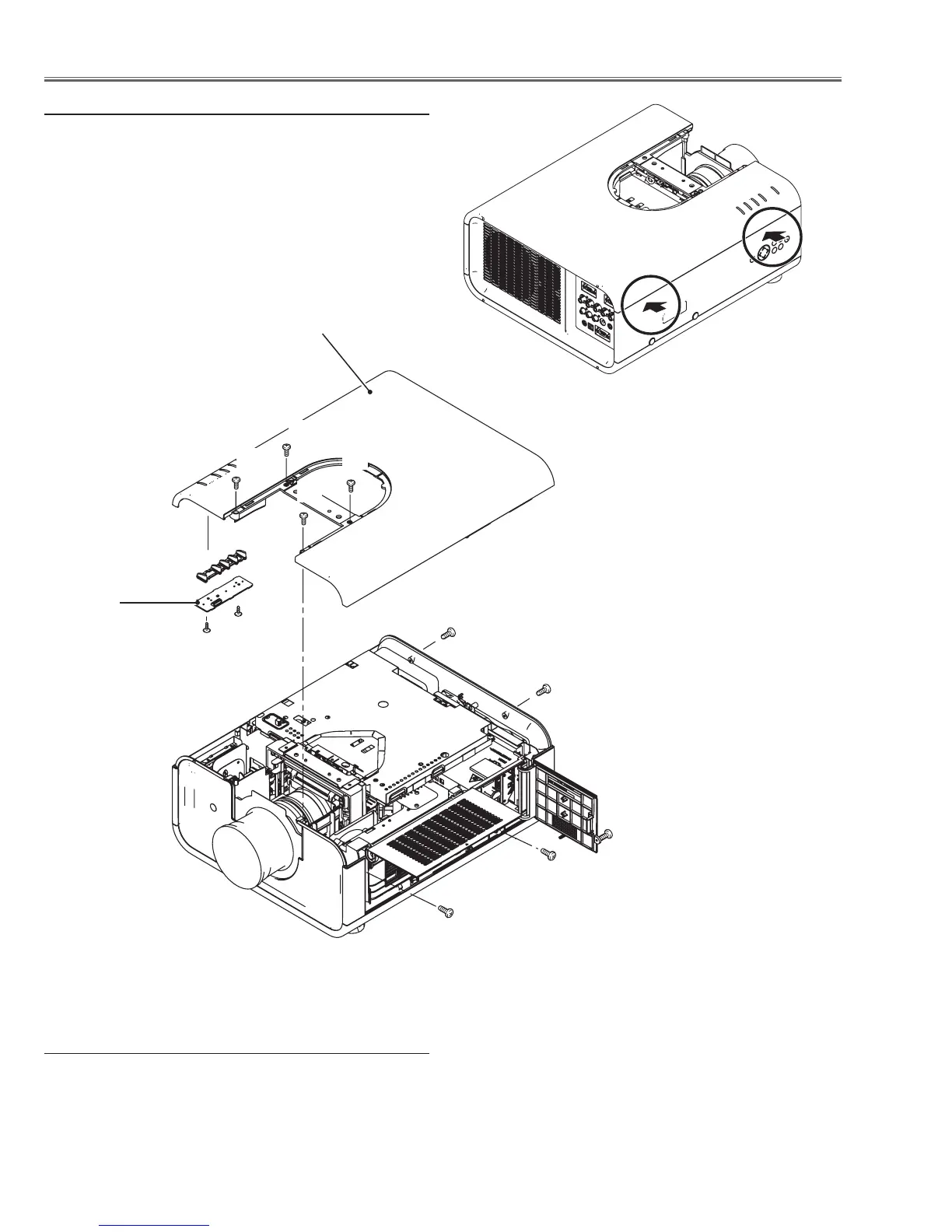

Fig. 1-2
2 Cabinet top removal
1 Open the filter cover and remove 1 screw A (M3x8).
2 Remove 1 screw B (M3x8) and open the lamp cover
and remove 1 screw C (M3x8).
3 Remove 4 screws D (M3x8) on the cabinet top and 2
screws E (M3x8) on the cabinet back.
4 Release the hooks by pressing the side part of cabinet
bottom indicated with the arrows and take the cabinet
top off.
B
D
D D
D
E
E
F
F
Cabinet top
LED board
Press here to unhook
2-1 LED board removal
1 Remove 2 screws F (T3x8) and take the LED board
and LED holder off.
C

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
