Sanyo PLC-XP200L Service Manual

-19-

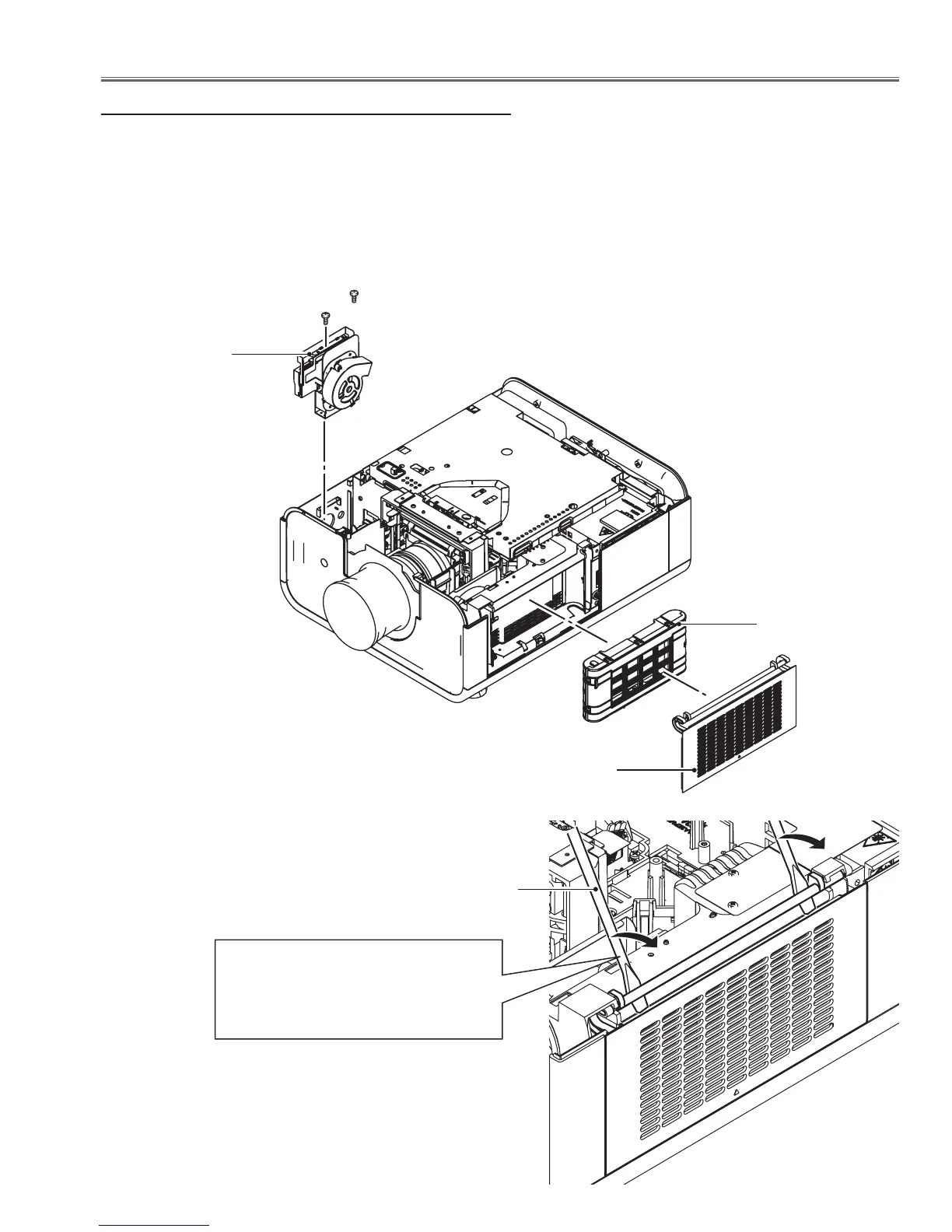

Mechanical Disassembly
3 Control board ass’y and covers removal
1 Remove 2 screws A (T3x8) and take the control board &
fan ass’y upward off.
2 Open the filter cover and take the filter cartridge off.
3 Remove the filter cover off by using a flat screw driver as
shown in the figure.
Control board &
fan(FN907) ass'y
Flat screwdriver
Filter cover
Turn the flat screwdriver in the arrow
direction to unhook the filter cover's
hinges.
Note: Be careful not to scratch the filter
cover and holder.
Filter cartridge
A
A

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
