Optical Parts Disassembly

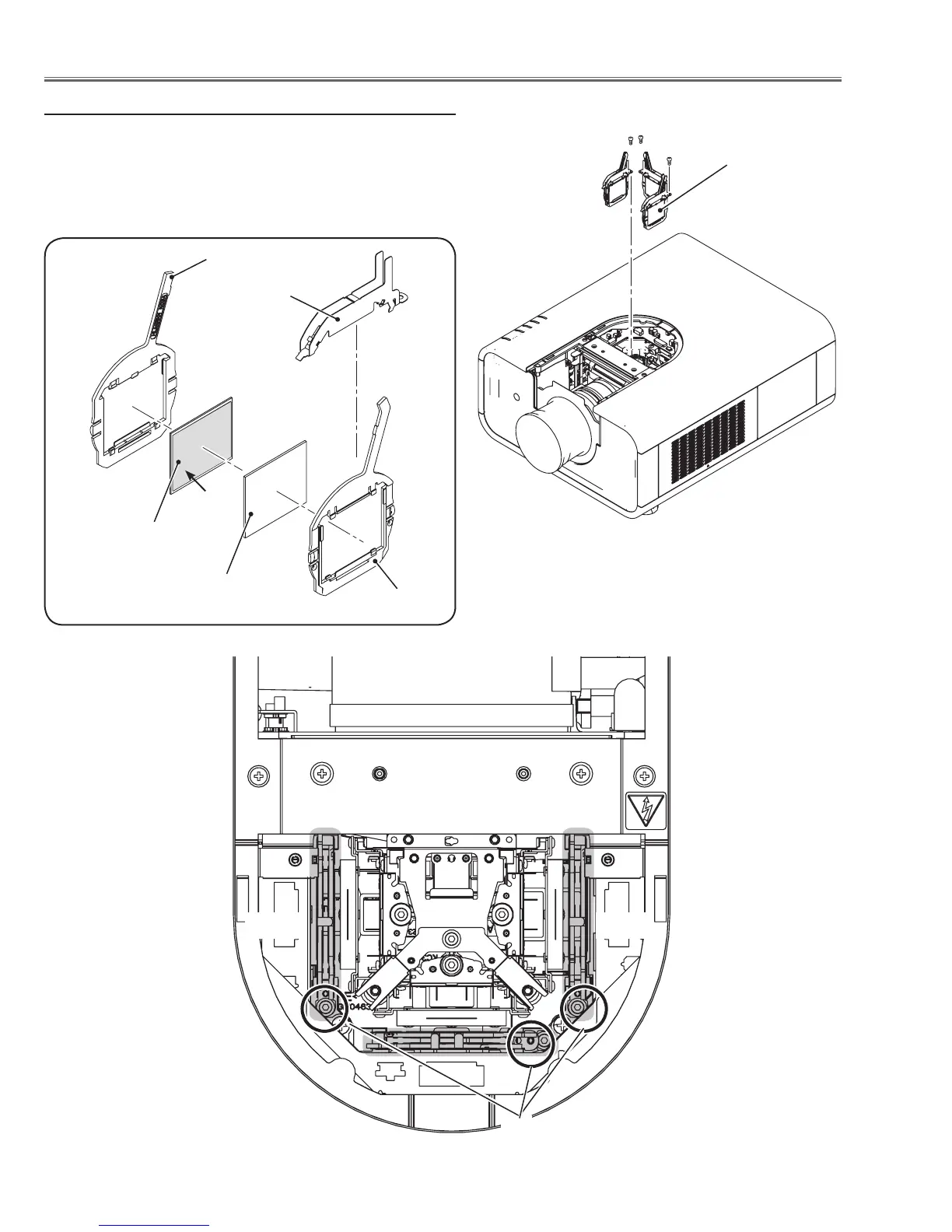

3 Polarized glass/Optical filter ass'y removal
1 Remove 1 screw A (M2.5x5) on each stopper and take the
polarized glasses upward off.
A
A
Polarized glass/
Optical filter ass'y
Glass holder
Stopper
Polarized glass (in)
Optical filter (HCP)
Glass holder
film
A
BlueRed
Green
