Sanyo PLC-XP200L Service Manual

-35-
Optical Parts Disassembly

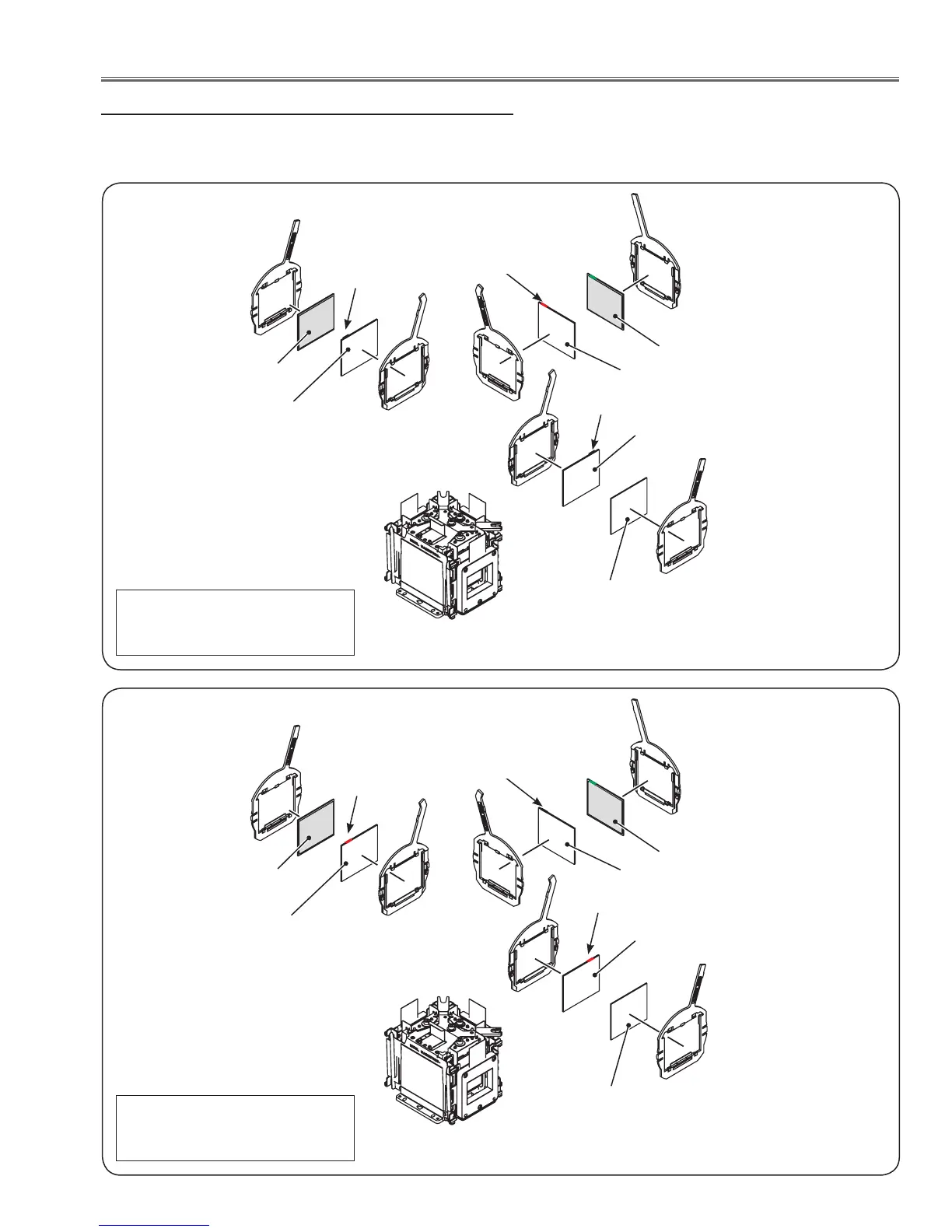

There are 2 types combination of the LCD panel/prism assembly named Type-R and Type-L. Mount the polarized
glasses and optical filters according to the type of the LCD panel assembly as shown in the figure below
3-1 Polarized glass/Optical filter mounting
TYPE-L
Polarized glass-in (B)
Optical filter-HCP-HCP (B)
Black
Marker
* Polarized glasses should be
mounted as the film attached side
is facing the LCD panel side.
Red
Marker
Polarized glass-in (G)
Optical filter-HCP (G)
Optical filter-HCP (R)
Polarized glass-in (R)
TYPE-R
Polarized glass-in (B)
Optical filter-HCP (B)
Red
Marker
* Polarized glasses should be
mounted as the film attached side
is facing the LCD panel side.
Polarized glass-in (G)
Optical filter-HCP (G)
Optical filter-HCP (R)
Polarized glass-in (R)
Black
Marker
Red
Marker
Black
Marker
Red
Green
Blue
Red
Green
Blue

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
