SATO CL4NX Programming Reference

667
IEEE1284
Basic specification
Connection diagram
Connector pin assignment
I/O signal
Timing chart of multiple receive
Parent topic Part 2 Interface Specification

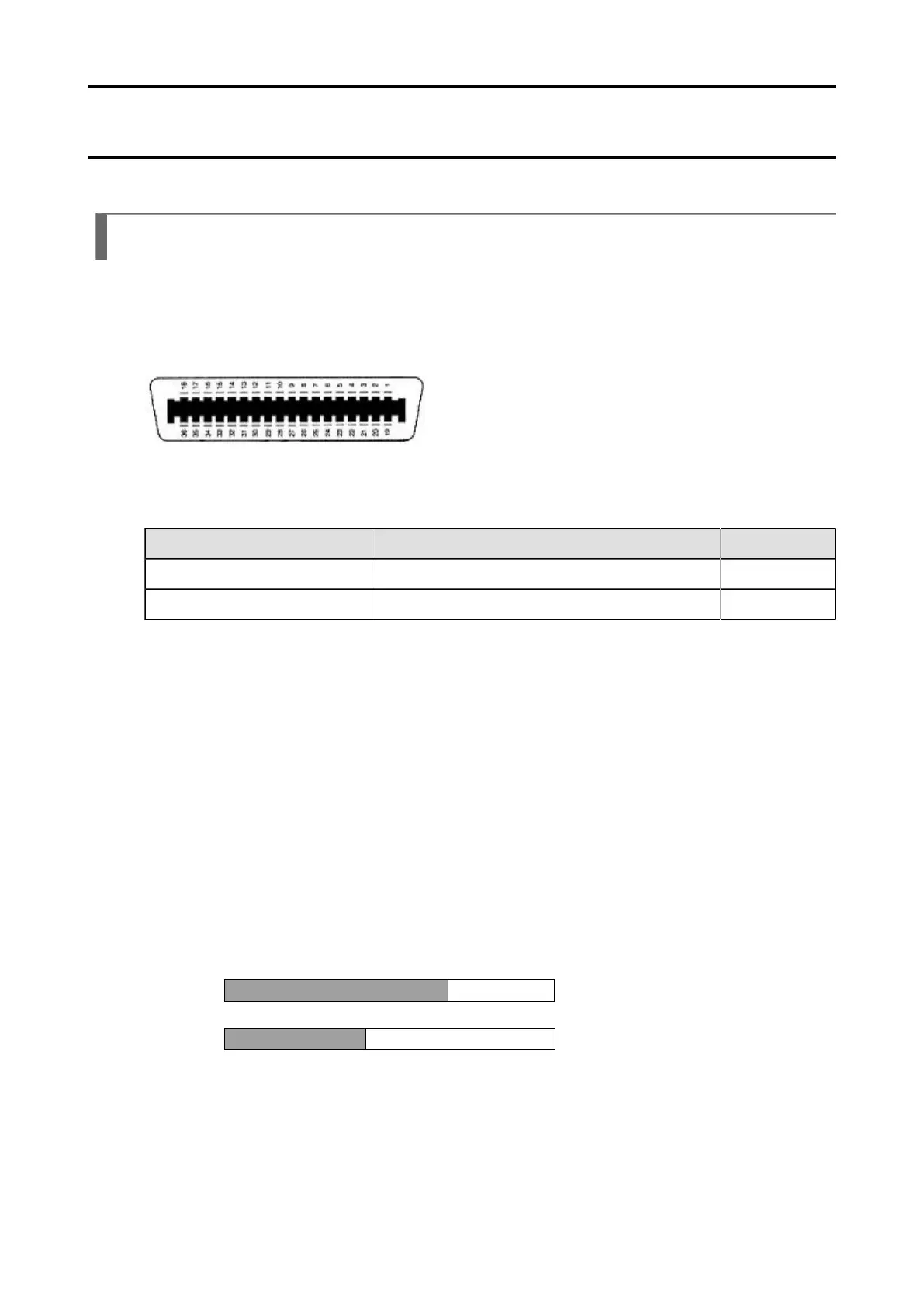

Basic specification
This interface complies with the Centronics/IEEE1284 standard.
Interface
Amphenol 36P female
Protocol
1) The range of values in communication setting mode
Item Value Default value
Protocol Status4, Status5 Status4
BCC check for Status5 Enabled / Disabled Disabled
Connector
Printer side: Amphenol 36 pin (Female)
Cable side: Amphenol 36 pin (Male)
Cable length
Equal to or less than 1.5 (m)
Signal level
High level: +2.4 ~ +5.0 V
Low level: +0.0 ~ +0.4 V
Maximum receive buffer capacity
2.95 MB
Near full occures
Near full release
0 M B
2.95 MB
0.95 MB rem ains
1. 95 M B re mai ns

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
