SATO CL4NX Programming Reference

656

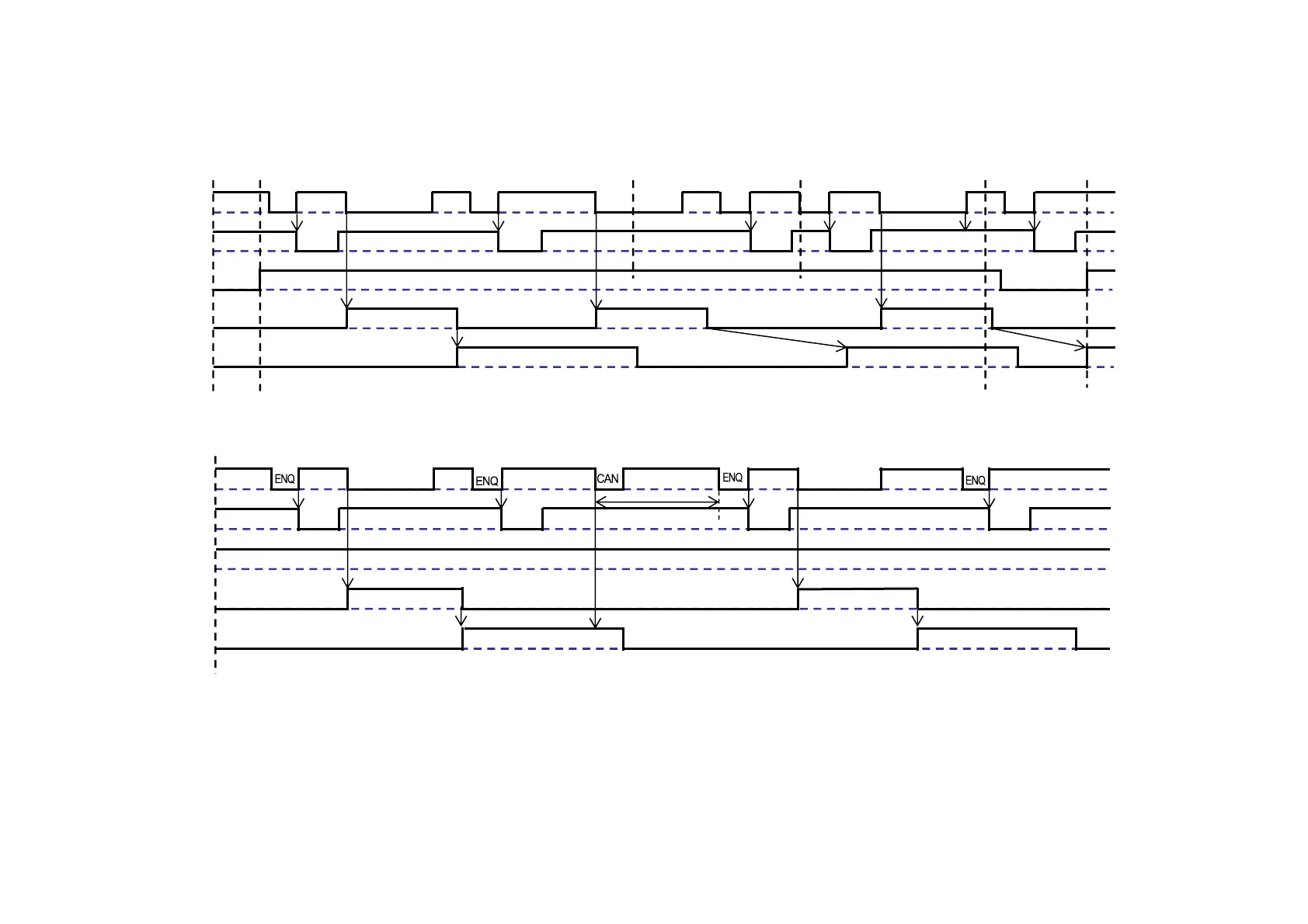

Timing chart
1) Normal process
2) Cancel process
The format of CAN will be STX SOH CAN "*****" ETX. (***** will be any item No. )
After sending CAN, please wait about 500 msec before sending the next data.
Avoid sending CAN while sending the print data (STX <A> - <Z> ETX).
With the above condition, the job may not be canceled or the item may not be printed correctly.
Status
Power On
Printer
RD
SD
Printer Status
Press the LINE
button
STX...ETX
(
1
)
EN
Q
The format of ENQ will be STX SOH ENQ "*****" ETX. (***** will be any item No. )
Avoid ENQ transmission while sending the print data (STX ESC+“A” - ESC+“Z” ETX).
By sending ENQ, the status may not be returned or there may be print error.
Status
EN
Q
Status
STX...ETX
(
2
)
Receive/Analysis/Edit (1) Receive/Analysis/Edit (2)
EN
Q
EN
Q
STX...ETX
(
3
)
Receive/Analysis/Edit (3)
Status Status
Press the LINE button
EN
Q
Printin
g
(
2
)
Printin
g
(
1
)
Initializin
g
Offline
Online
Buffer near full state
Buffer near full release
Printer
RD
SD
Printing (1)
Online
ENQ
Printing (2)
Printer Status
Receive/Analysis/Edit (1)
STX..ETX (1)
STX..ETX (2)
Status Status Status
500 msec
Status

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
