SATO CL4NX Programming Reference

734

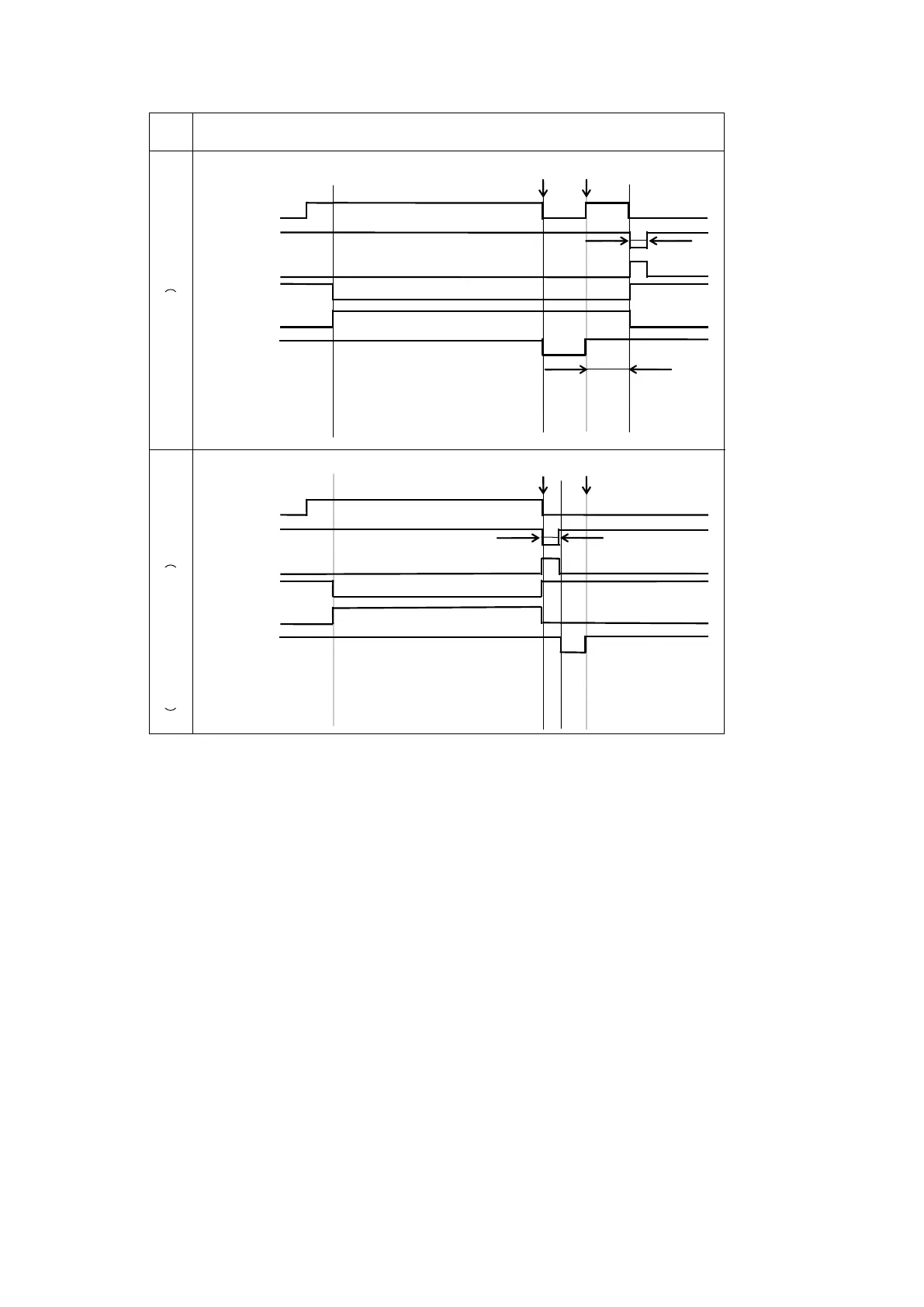

3) Output waiting for dispenser
Item
Output pulse
1
2
3
4
20ms
Print 1 label
Print
operation
Print end
(PREND)
Operation 1
Backfeed after printing
Dispenser complete
Waiting for
dispenser
500ms +
Backfeed time
1
2
3
4
20ms
Print 1 label
Print operation
Print end
(PREND)
Dispenser complete
Waiting for
dispenser
Operation 2
backfeed before printing
• Please note that Output timing of print end signal (PREND) is changed when Wait signal for
dispenser is valid.
Operation 1) Output Print End Signal after Wait label for dispenser is removed and backfeeding
of label is completed to print start position.
Operation 2) Output Print End Signal after feeding label to dispense position.
Parent topic I/O signal

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
