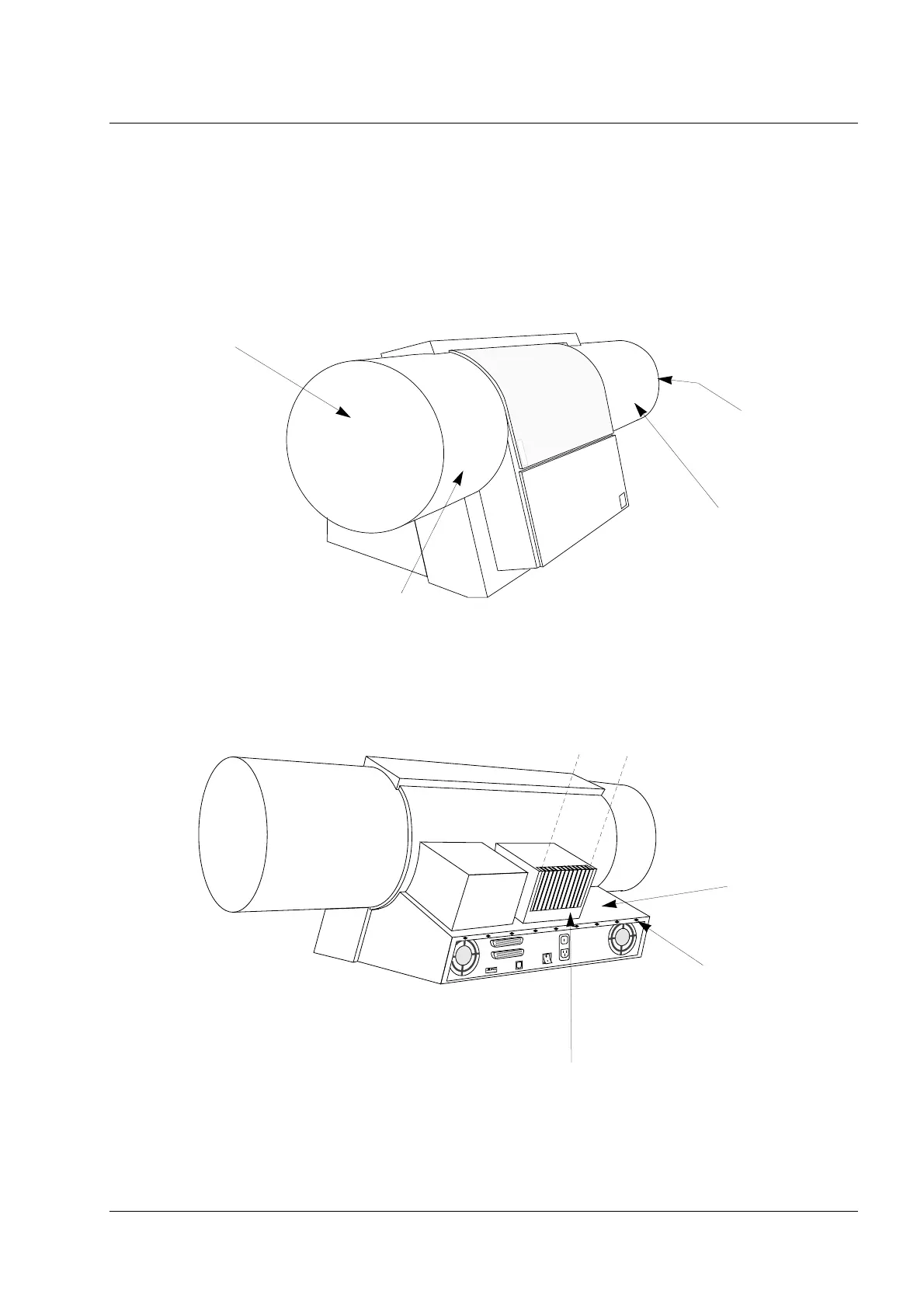

4 • PART REPLACEMENT
Access Panels
Edition 1 • January 1996 Service Manual • ScanMate 4000/5000
4•2c
Back cover
B
Lamp cover
A
Lamp cover
attachment screws
(x2)
Back cover
attachment screws
(x9)
Left hand end
plate
E
Right hand end
plate
C
Right hand drum
cover
D
Left hand drum cover
F
ScanMate 5000 shown
(covers on the ScanMate
4000 are identical)
