Chapter 5 Dismantling components
134 SMSO-2-02.05- 15.07.03
Refrigerator (optional feature)

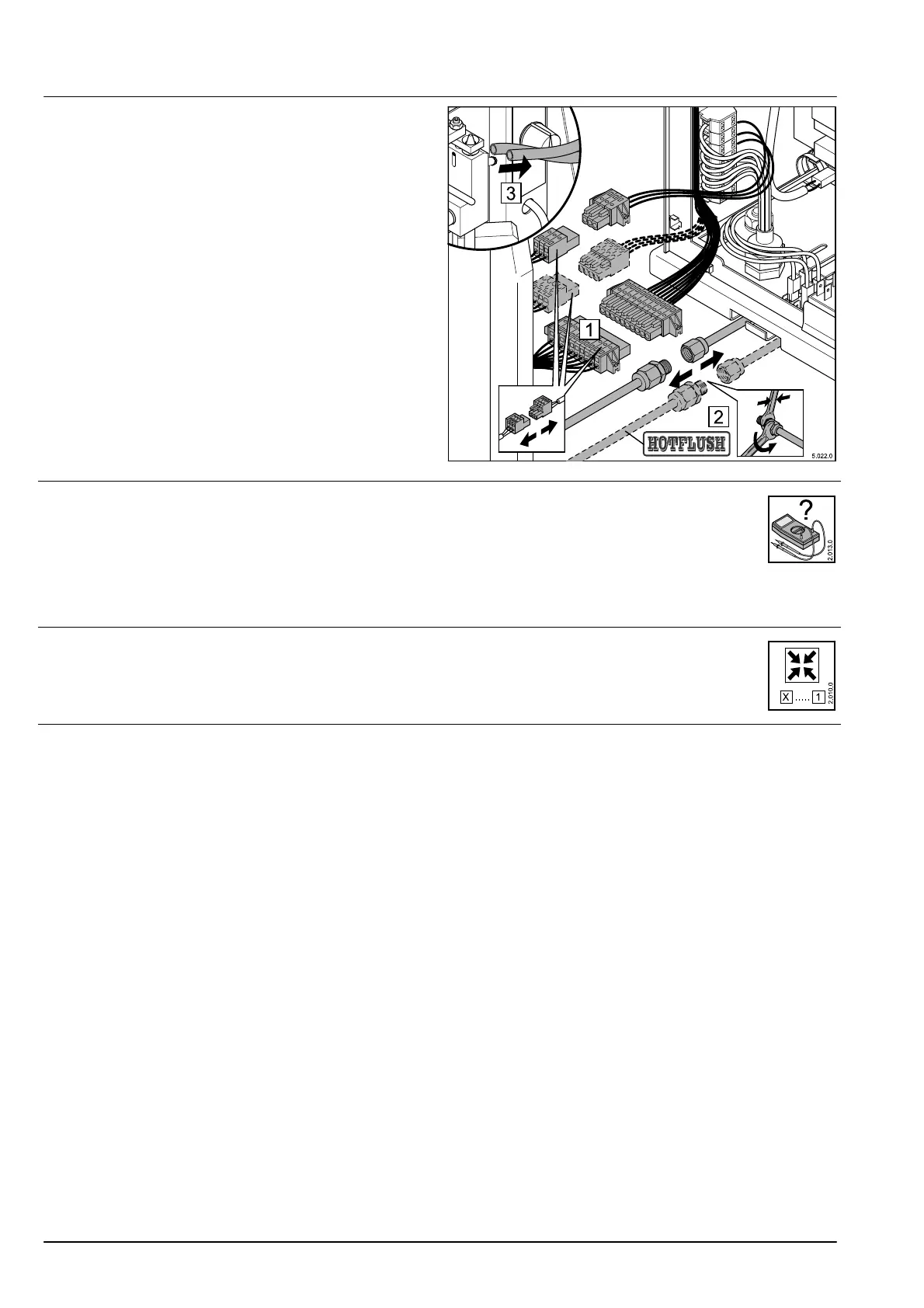

Disconnect the electrical and hydraulic connections
1. Remove electrical connector devices
2. Loosen connector nuts of the cold and hot water pipes to
the refrigerator; disconnect pipes
3 Pull the pipes for milk / milk foam from the hose sleeves
on the ventilation valve
Electrical check
See sections entitled “control system diagram, refrigerator,
cover switch; cooling unit motor; foamer head limit switch;
squeeze cylinder solenoid valve; ventilation valve; ‘milk’
rinsing valve, ‘milk foam’ rinsing valve, level probe”
Installation
Depending on the machine configuration and -{}-the state of
disassembly, the work steps should be performed in reverse
order to the dismantling procedure.
