5.4.11 Flowmeter
For safety information see the section entitled
“Safety Regulations”
Preparation
Disconnect supply connections
Dismantle the right-hand casing
Dismantling

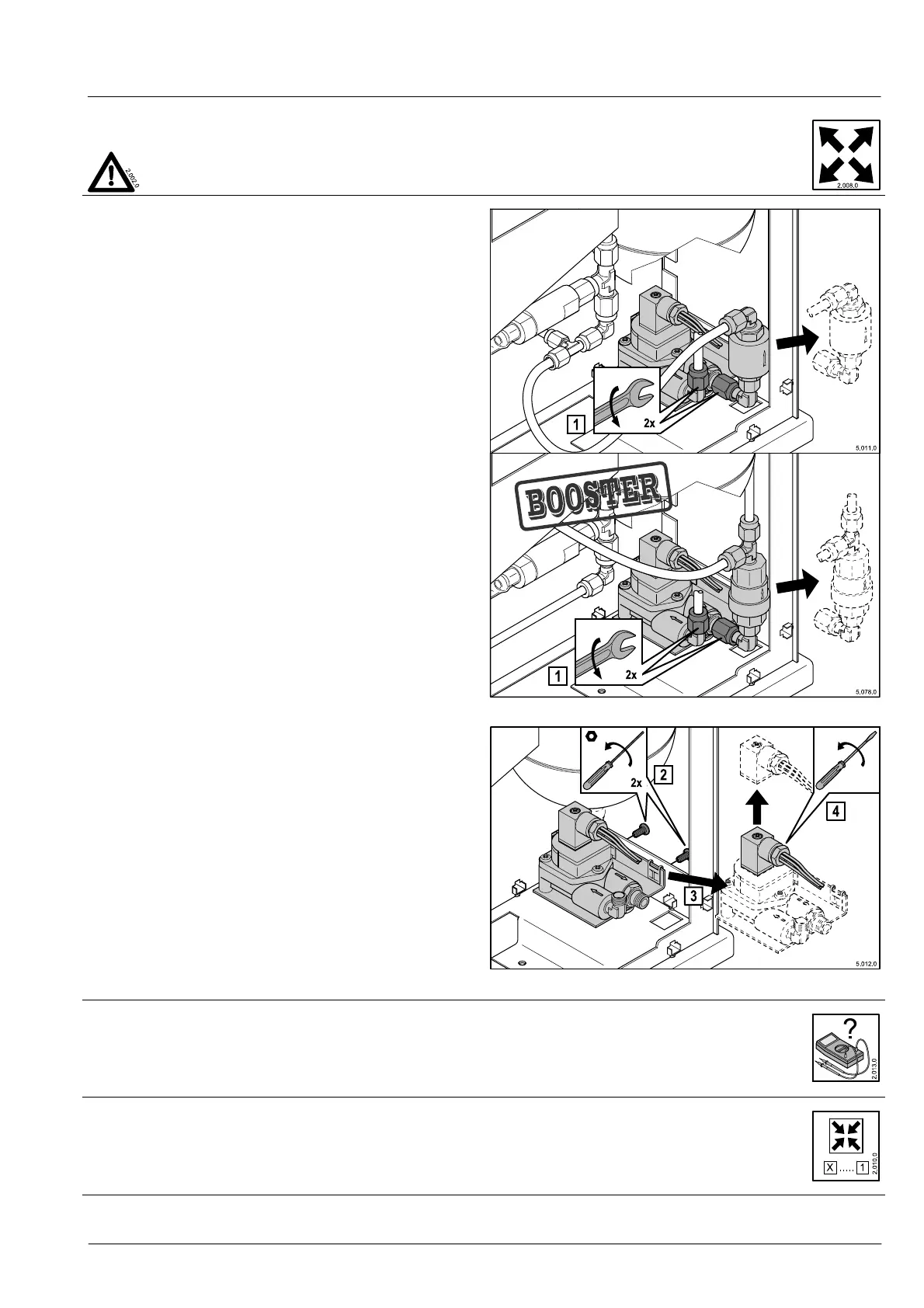

1. Loosen the union nuts on the feed pipe and the screwed
nipple on the flowmeter; remove the feed pipe and the
non-return valve.
2. Turn the fastening screw on the flow meter holder until it
comes out.
3. Remove the flowmeter from the framing, then
4. Loosen the plug on the flowmeter and pull it out
Repair (see 5.5.5)
Clean flow meter / replace O-ring
Electrical check
See section entitled “control system diagram, flowmeter”
Installation
Carry out assembly in reverse order to the dismantling pro-
cedure.
