Chapter 5 Dismantling components
SMSO-2-02.05- 15.07.03 159
5.4.18 Dispenser carriage
For safety information see the section entitled
“Safety Regulations”"
Preparation
Dismantle the bean container
Dismantle the cup plate
Open the control panel

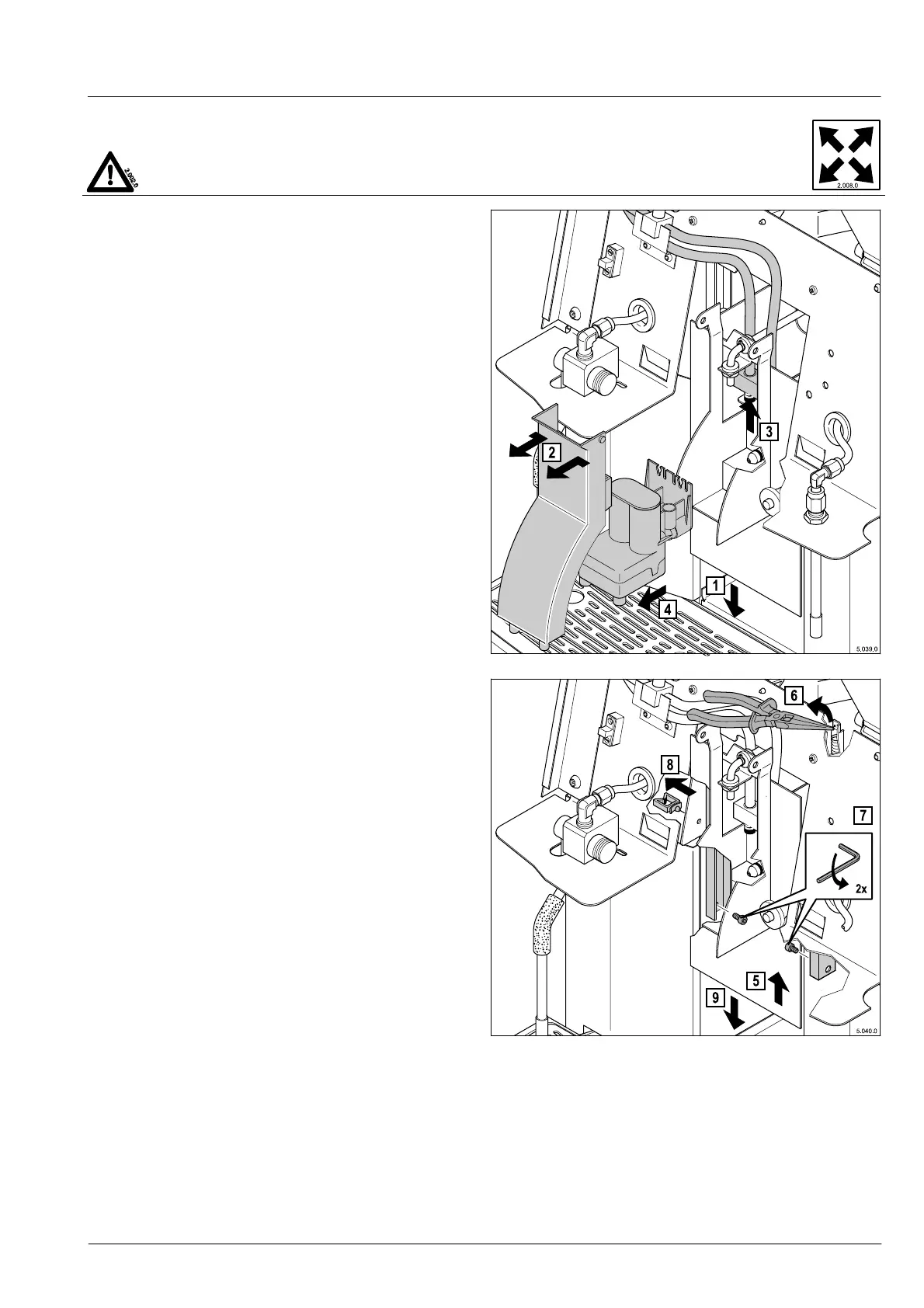

Dismantling
1. Move the dispenser carriage down
2. Remove the outlet baffle and the coffee outlet cup
3. Pull the nipple holder out of the foamer head
4. Pull the foamer head away from the nozzles
5. Move the dispenser carriage up
6. Take the upper tension spring off its hinges
7. Turn the lower screws on the guide rails until they come
out.
8. Dismantle the cable holder on the left-hand holding
blade
9. Move the dispenser back down a little
To Next Page
