Chapter 5 Dismantling components
160 SMSO-2-02.05- 15.07.03

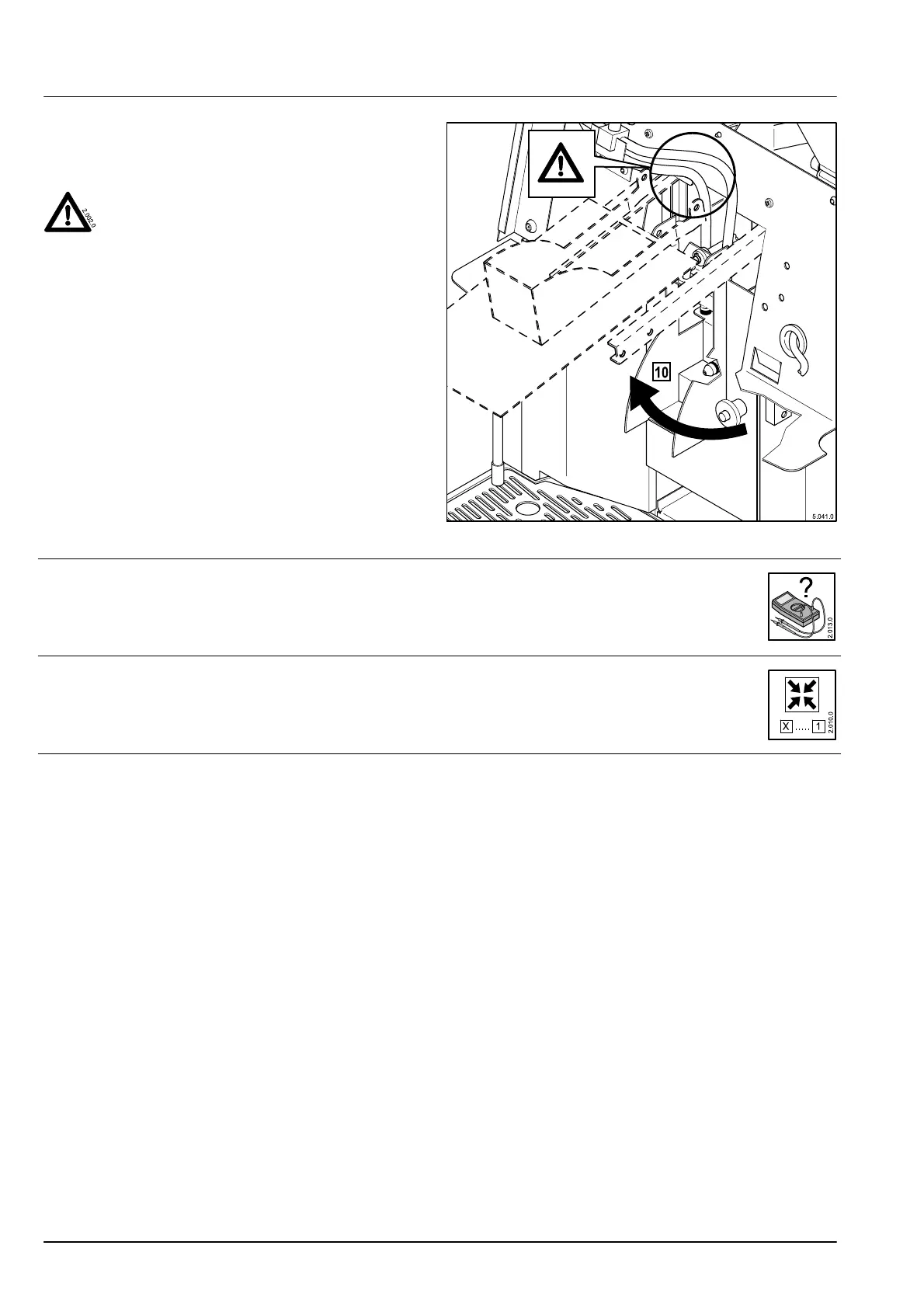

10. Swivel the dispenser carriage with the guide rails up and
forwards
MATERIAL DAMAGE
When you swivel the dispenser carriage,
hoses and cables can be squashed or torn
out by the housing sections. Swivel the
dispenser carriage upwards very carefully,
and look out for the hose and cable gui-
des.
Repair (see EKSO-2)
Electrical check
See section entitled “control system diagram”
Panel switch
“Foamer head limit switch”
Installation
Carry out assembly in reverse order to the dismantling pro-
cedure.
