Chapter 6 Control system diagram
SMSO-2-02.06- 15.07.03 189

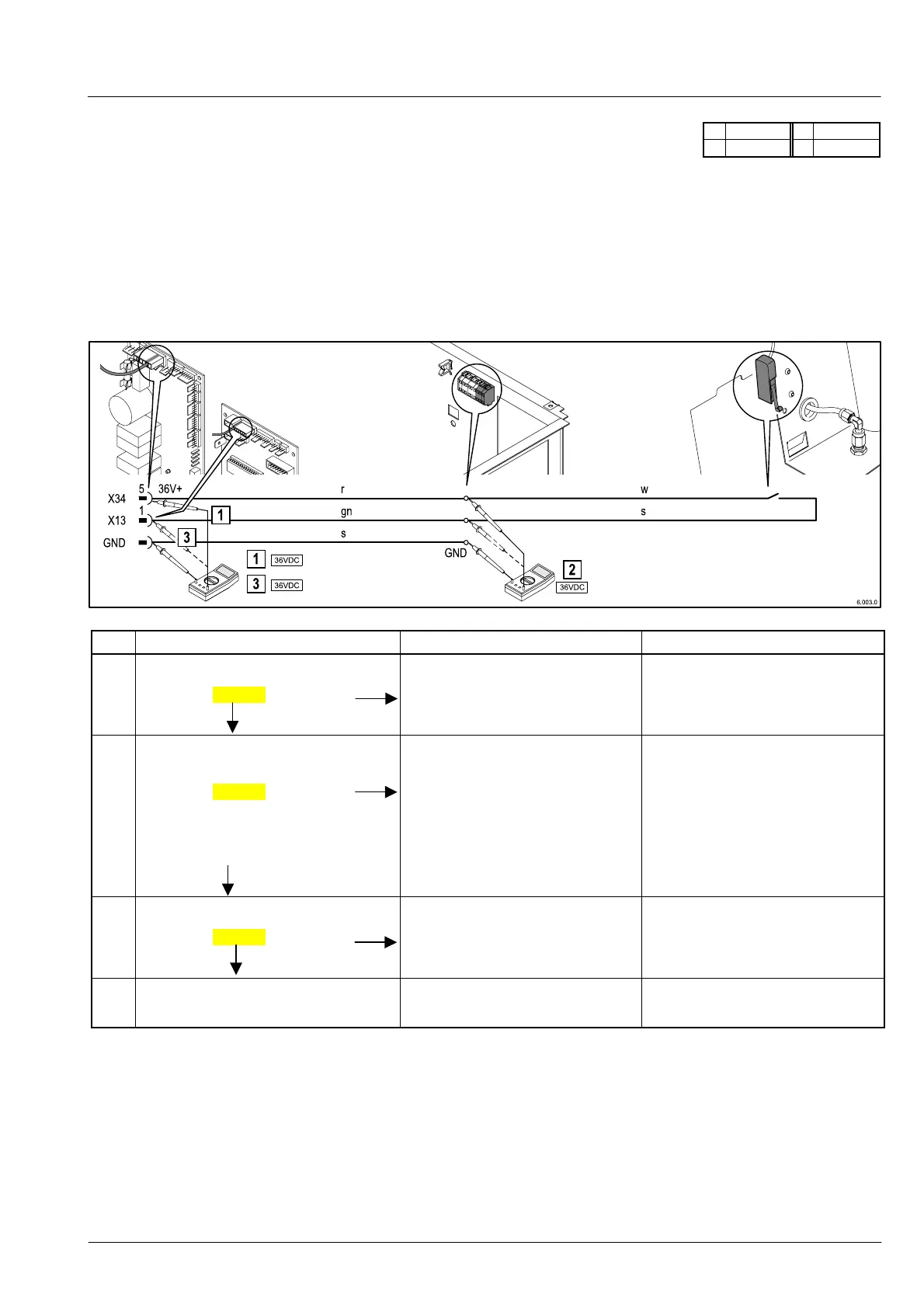

6.5.7 Panel switch
36V 5V DC
36V S L1, N
Operating condition
When the panel door is shut, there is a signal present at plug X13 1.
Symptoms
No signal present when the panel door is shut. “Door open” message displays. The 36VS electrical circuit has been interrupted
by the main relay.
Procedure
Process
step
Check Possible cause Remedy
1
Take voltage measurement at
plug X34 GND on power PCB:
36 V DC ?
Check the voltage supply (see
“Power PCB, control voltage”)
Voltage supply failure / faulty
2
Take voltage measurement at the
terminals on the rear casing
panel:
36 V DC ?
Plug contacts on power PCB
faulty / oxidised
Cable broken or pulled out of
terminal / plug
The switch is faulty
The switch is not sufficiently de-
pressed; panel door not fully clo-
sed
Mechanical defect on fastening
device
Check / replace plug contacts
Replace cable or reinsert it into
the terminal
Replace the switch
Check the switch / panel door and
adjust
Replace faulty parts
3
Take voltage measurement at plug
X 13 1 on unit control system:
36 V DC ?
Plug contacts on unit control sys-
tem faulty / oxidised
Cable broken or pulled out of
terminal / plug
Check / replace plug contacts
Replace cable or reinsert it into
the terminal
Restart the machine
If the “door open” message con-
tinues to display:
Faulty unit control system
Replace unit control system
NO
YES
YES
NO
NO
YES
To Next Page
