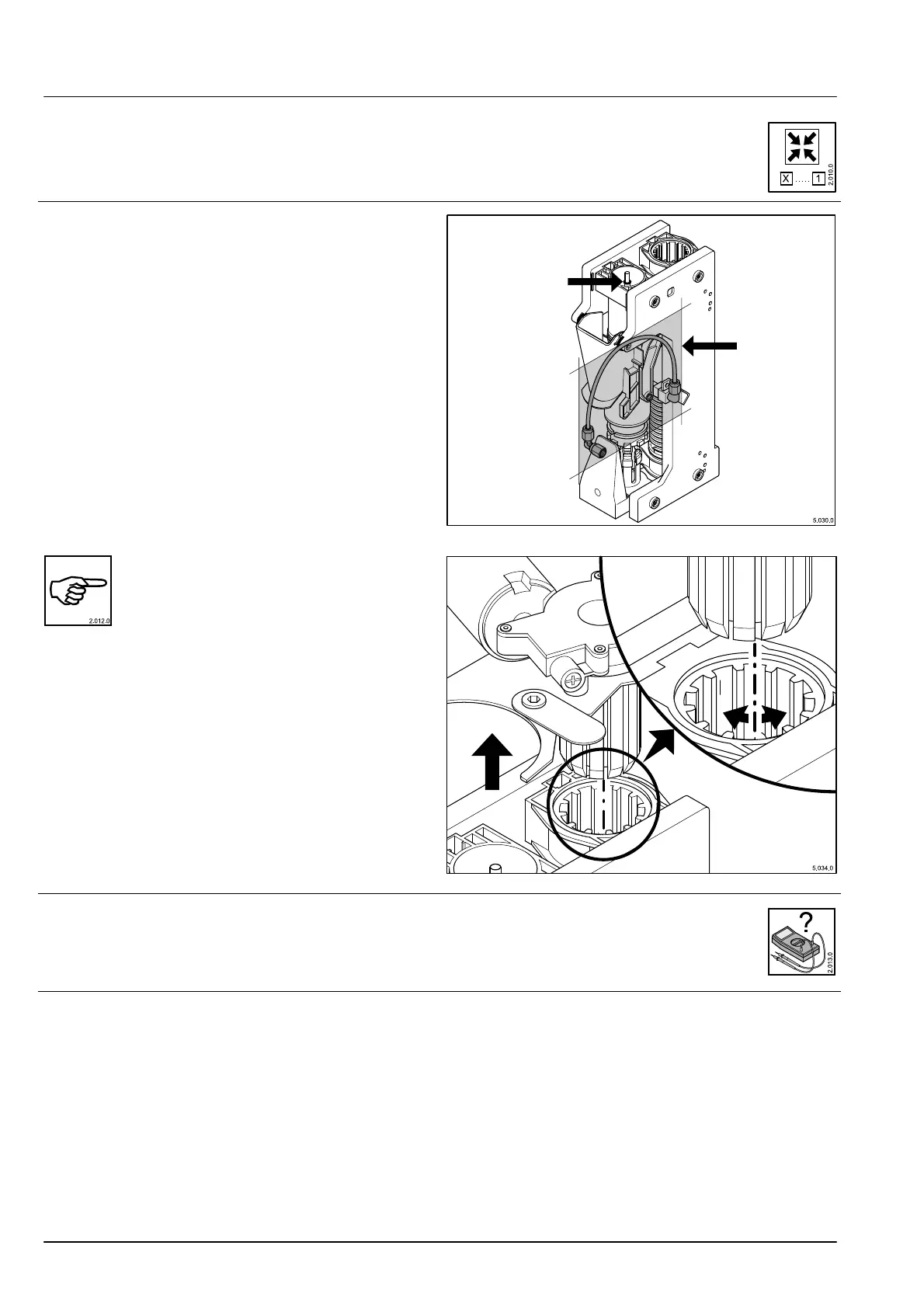

Chapter 5 Dismantling components
140 SMSO-2-02.05- 15.07.03
Installation
Checks:
O-ring on outlet connection piece
Brewing pipe not kinked or twisted
The brewing line is lying on a level parallel to the side
wall
Carry out assembly in reverse order to the dismantling pro-
cedure.
Repair (see 5.5.3)
Disassemble the brewing unit
Checks to component parts
Assembly
Dismantle the lower piston / replace the O-ring
Replace the stripper
Outlet piston Replace the O-ring
When the brewing unit is installed, the spindle
grooves must match the carrier unit on the
piston motor. The spindle therefore may need
to be turned slightly.
Electrical check
See section entitled “control system diagram”
Piston motor
Brewing unit, start position limit switch
