Schenck process Intecont Satus - Housing Dimensions

3 Housing Dimensions
The INTECONT
®
Satus is an electronic weigh system for belt weighers.
The VKG 20790 stainless steel protection class IP 65 casing is designed for horizontal
installation. The device may also be attached to the wall if the lid is rotated (downward cable
outlet).

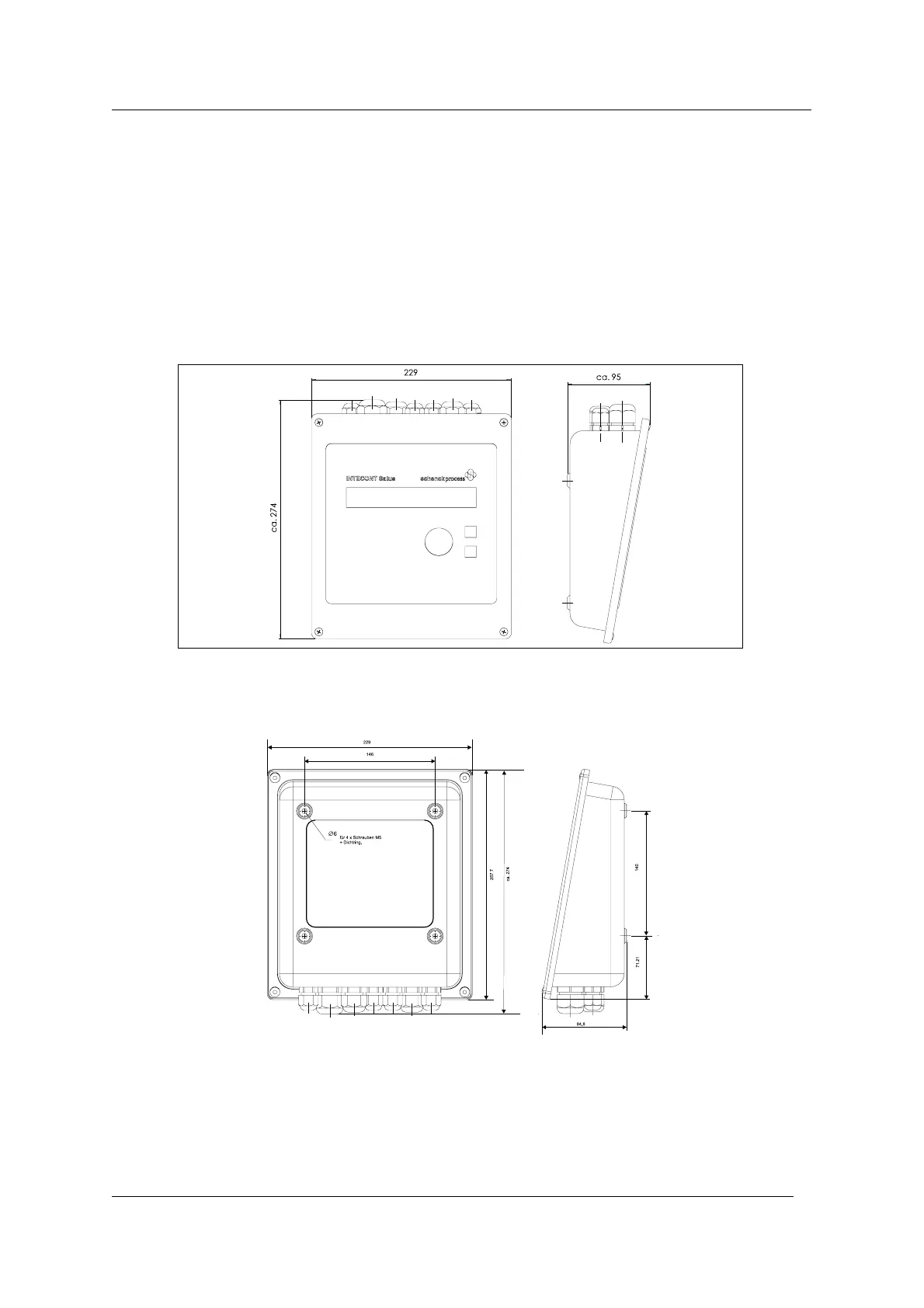

Figure 1 shows the housing dimensions.
Figure 2 shows the drilling template for wall mounting. The parts required for mounting are
supplied with the device.
Housing Dimensions
4 BV-H2346GB / 0833 Operating Manual INTECONT® Satus
© Schenck Process
Fig. 2:
Fig. 3.
