Schenck process Intecont Satus - Configuration of the Network in Rslogix 5000

17.4.5 Configuration of the network in “RSLogix 5000"
•
Create a new project in RSLogix
•
Configure the controller
•
Select the EtherNet/IP bridge
•
Configure the EtherNet/IP Bridge
•
Add the INTECONT Satus station to the I/O configuration
•

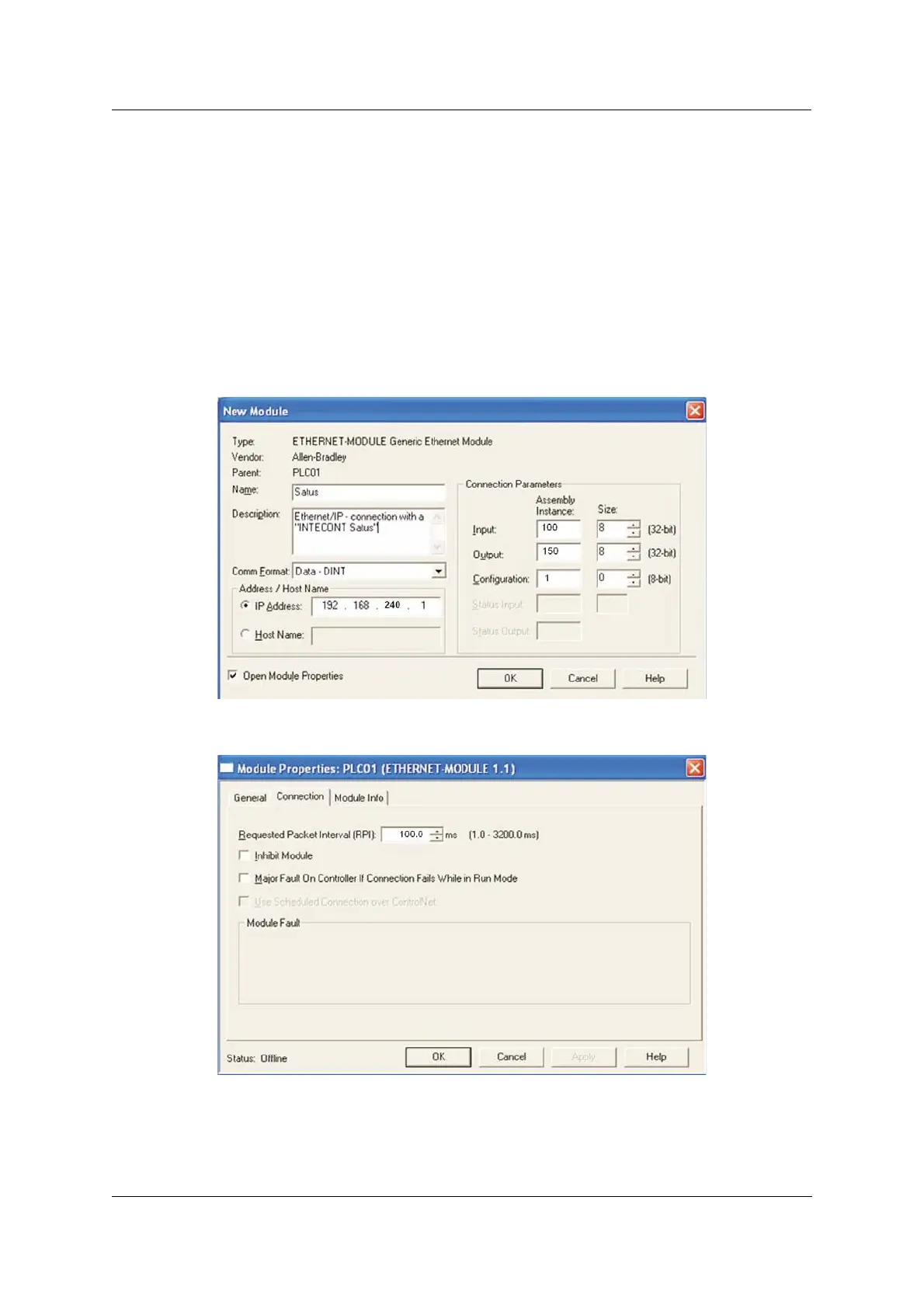

Add a generic Ethernet module
•
Configure the new Ethernet/IP module
•
Set connection options for INTECONT Satus
•
Download the configuration
