9 Setup Program
9.1 Adjustment functions
There are 3 setup programs which facilitate initial and fine adjustment.
1. Impulse/Belt circuit LB
2. Taring TW
3. Weight Control CW
They must be applied in the predetermined sequence for the initial calibration .
All programs can be found under the ADJUST function and are protected against
unintended alteration by a password.
In the time between the running of a program to acknowledgement
1. no rate of flow will be calculated, and
2. the analog output will be raised to 4mA
The procedure is the same for all programs.

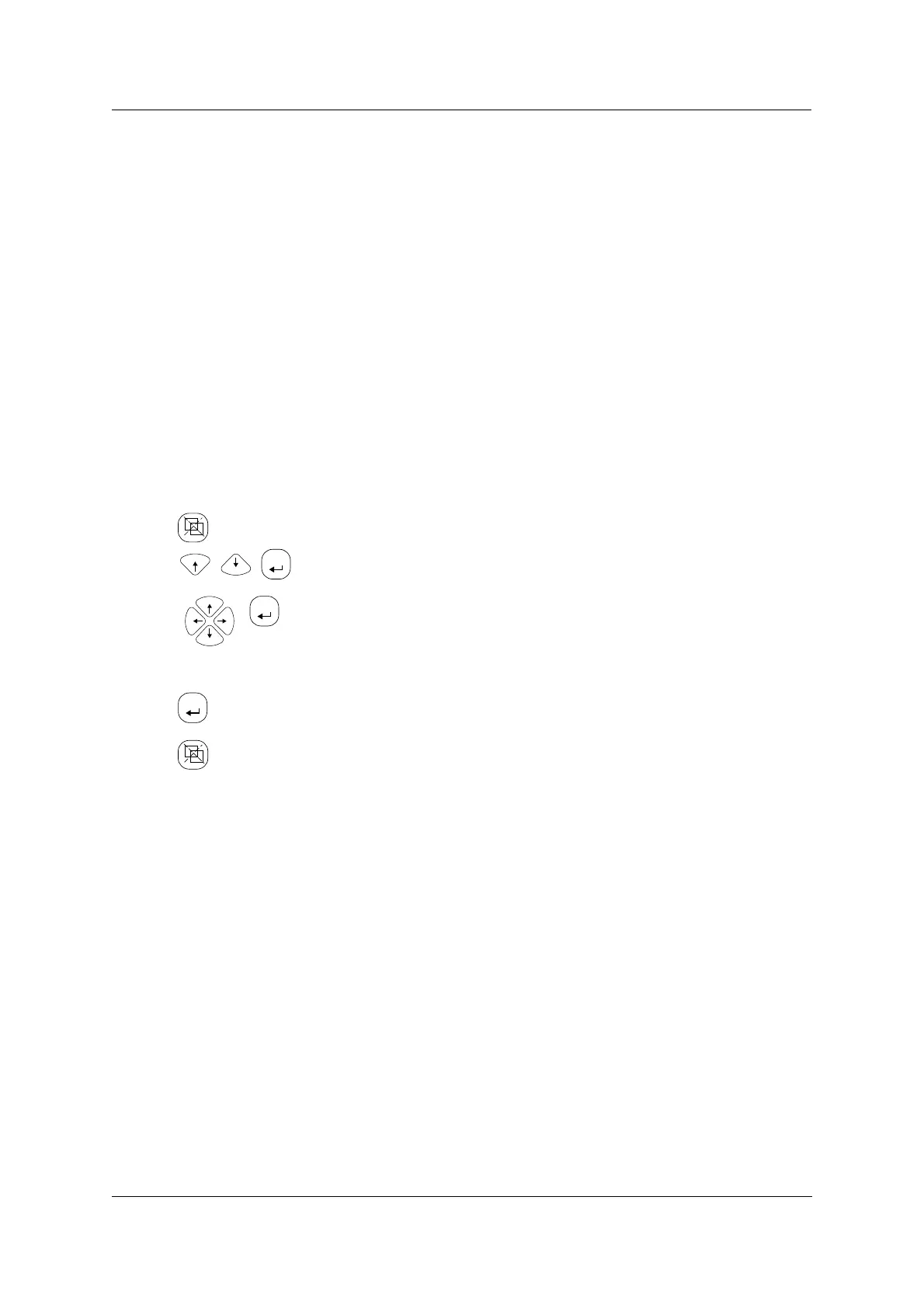

Call up the function distributor
Scroll to ADJUST FUNCTIONS in the lower part of the display and
confirm.
Enter the password 07734
One of the setup programs will be displayed, e.g. TW: Taring
Starting the setup program
Returning to the normal display.
The setup menu may be recalled for approx. 2 minutes without needing to reenter
the password.
9.2 Belt circuit LB
The LB IMP/BAND setup program only needs to be called up
1. at the initial setting
2. if a new belt is fitted or the belt tension has been altered significantly
3. if one of the parameters B 04 (characteristic value vs) or B 05 (nominal speed) have
been altered on scales which do or do not measure velocity.
The amount of impulses given by the speed sensor for one belt circuit is calculated.
This amount then serves as the characteristic value for the programs
a. Taring TW
b. Weight Control CW
The LB setup program must be called up before the other setup programs for the intial
setup.
This also applies for scales with no velocity measurement.
Setup Program 9.2 Belt circuit LB
INTECONT® Satus Operating Manual BV-H2346GB / 0833 23
© Schenck Process
