10 Service values
Detailed information on the system is contained in the service table.
The call-up does not interfere with any weigh functions.

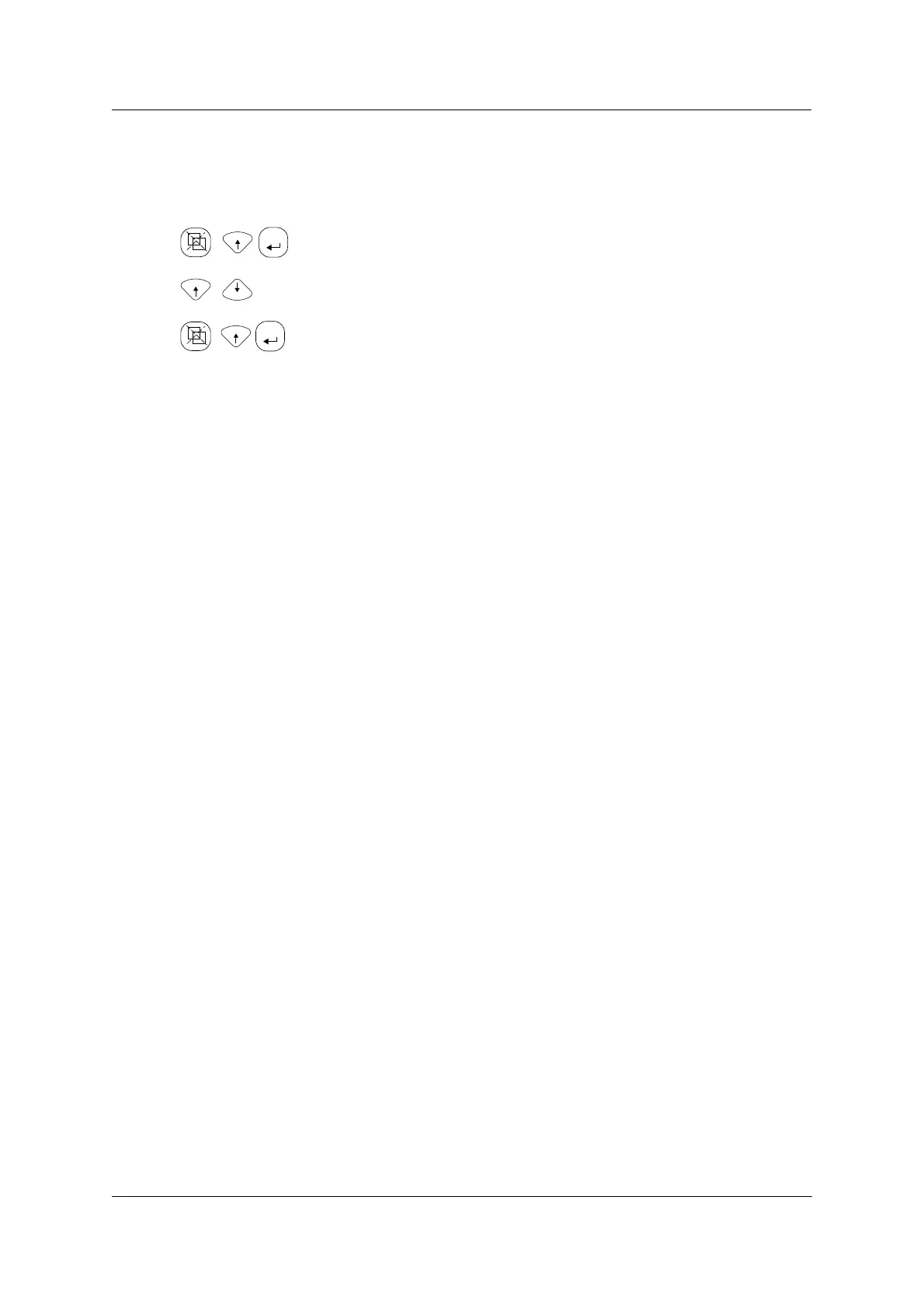

Call up and activate the SERVICE VALUE function.
Scroll through the service values.
Call up the function ‘Normal Display’ to exit the service value menu.
Display:
1. VBW 20790-01 3126 Version number of the software
2. Date and time
3. Relay Outputs Switching State
VFE: DO=1110
“1” = Contact closed
“0” = Contact open
4. Inputs Switching State
VFE:DI= 11 11 + -0
“1” = Contact closed;
“0” = Contact open.
The Namur input for the tachometer is input 5
‘+’ short circuit; ‘-’ cable breakage;
‘1’ = sensor covered; ‘0’ = sensor uncovered
Input 6 is not used
Input 7 shows the condition of write-protection
“1” Write-protection is active
“0” No write-protection
5. EL = 22h
Power supply duty cycle
6. ED=19h
Duty cycle of scales and belt conveyor.
Preconditions : V > VMIN and no ALARM event
7. Tachometer = 96.6 Hz
velocity sensor input frequency.
The frequency must be within the range 0.04 - 3,000 Hz.
8. aw = 30.988 %
Weigh cell load, based on the sum of the weigh cell nominal loads.
The weigh cells are overloaded if the values exceed 100%.
The message H4 : LC-Input > MAX occurs upwards of 110%.
Service values
INTECONT® Satus Operating Manual BV-H2346GB / 0833 29
