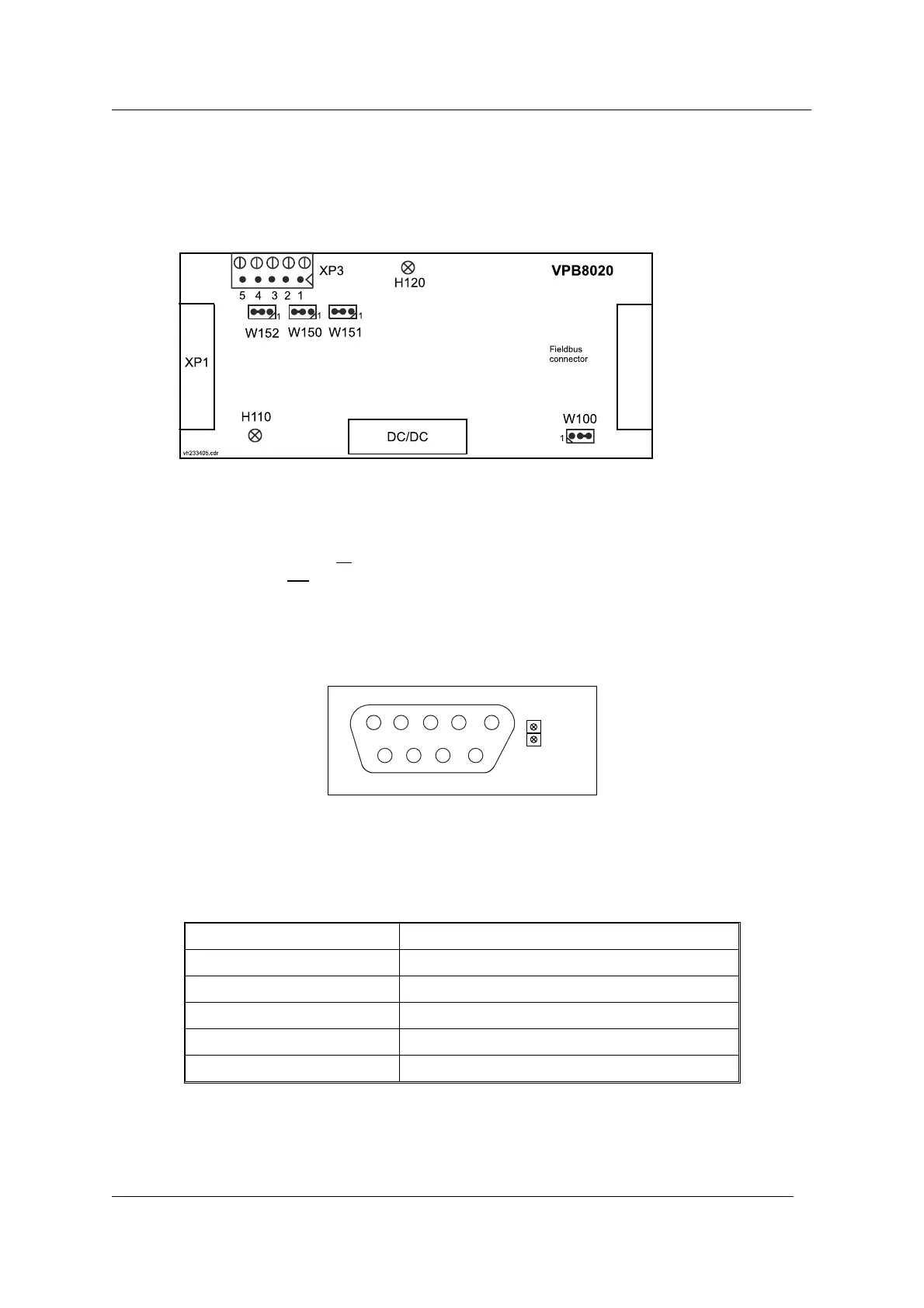

14.6 Profibus module (VPB8020)
The module may be attached to the main board of the INTECONT® Satus to create an
interface to the Profibus.
Bus termination
The bus termination resistances must be activated at the first and last station of the bus.
This is done by setting all
jumper plugs into position 1-2 on the card. As a rule the
resistances are not
activated (position 2-3).
Bus addresses:
n
The addresses are set using parameters.
Meaning of the LEDs on the Profibus connection
On the Profibus connection (VPB8020), the LED is lit
Opertion Mode
Status Indication
Off Not online/No power
Green Online, Date exchange
Flashing Green Online, clear
Flashing Red (1 Hz) Parametrization error
Flashing Red (2 Hz) PROFIBUS Configuration error
72 BV-H2346GB / 0833 Operating Manual INTECONT® Satus
© Schenck Process
14.6 Profibus module (VPB8020) PROFIBUS DP
Status-LED
Operation Mode
Front View
12
3
4
5
6
7
8
9
