6 Overview

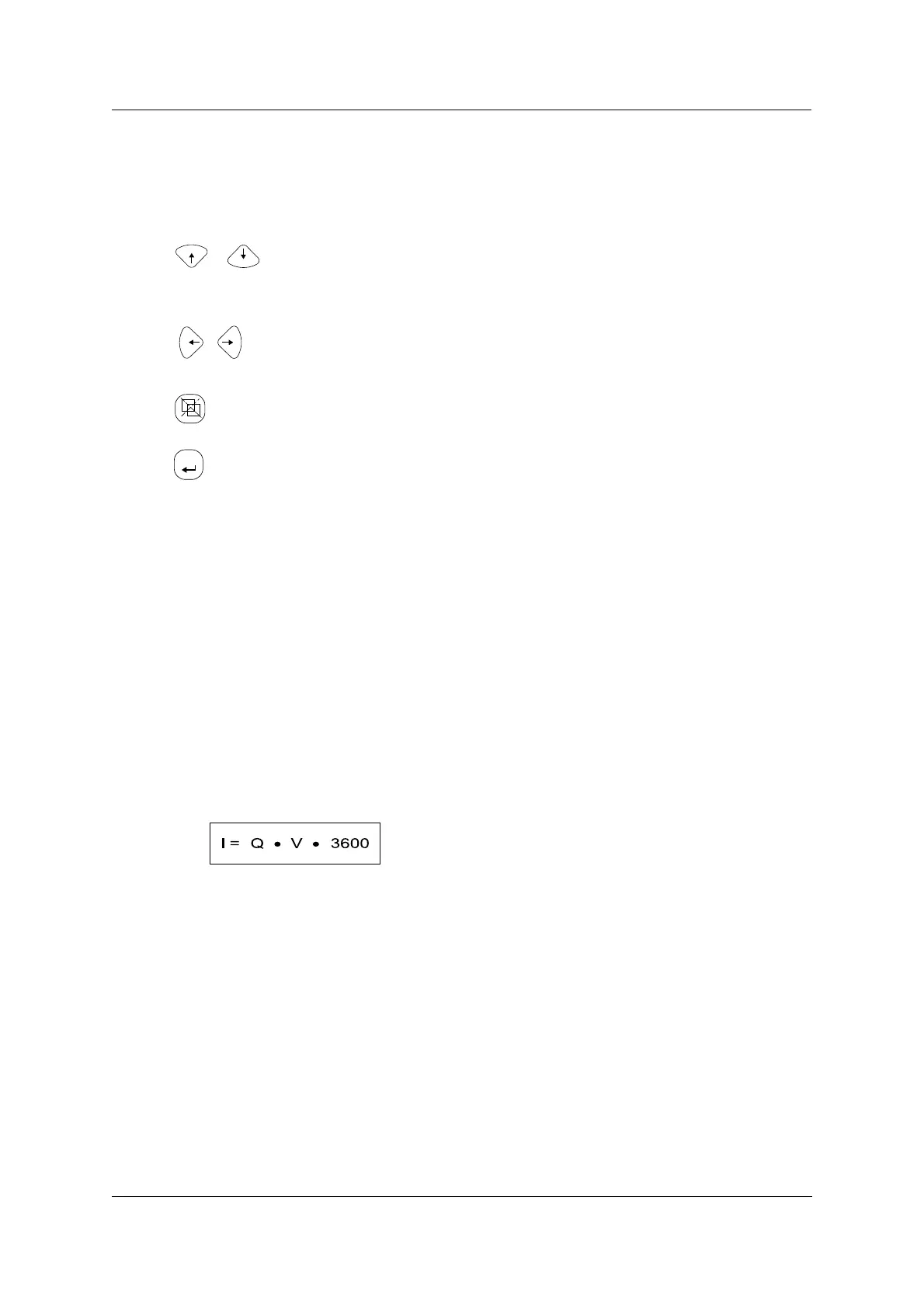

Keyboard: Flexible membrane keyboard with action point
·
Preselect display
·
Select function
·
Increase or decrease the blinking digit to enter a
number
·
Switch to the left or right to continue entering the
number.
FUNC or ESC Open function distributor or abort entry
ENT
·
Start functions
·
Confirm entry
Some definitions:
I = Feed rate quantity of material per unit of time transported
by the belt conveyor
in kg/h or t/h
Z = Flow rate amount of material transported in kg or t = feed
rate x feed time
V = Belt conveyor speed in m/s
Q = Belt load in kg/m
Weight of material on one meter of belt
Measuring principle
Belt load Q and speed V are continuously measured and factored together.
The result is the feed rate I, from which the flow rate is determined
I in kg/h
Q in kg/m
V in m/s
Zero Drop Out:
Totalizing can be suppressed with measurements around the zero point so that the counter
stops when the belt idles (refer to parameters H09 and H10).
Measuring technique:
–
High-precision AC-voltage amplifier with continuous zero-point and range correction.
–
High-resolution analog-digital converter
–
Effective suppression of external noise
–
32 Bit Microcontroller
–
Unlimited storage of counter readings, configuration and adjustment presets.
Overview
INTECONT® Satus Operating Manual BV-H2346GB / 0833 13
© Schenck Process
