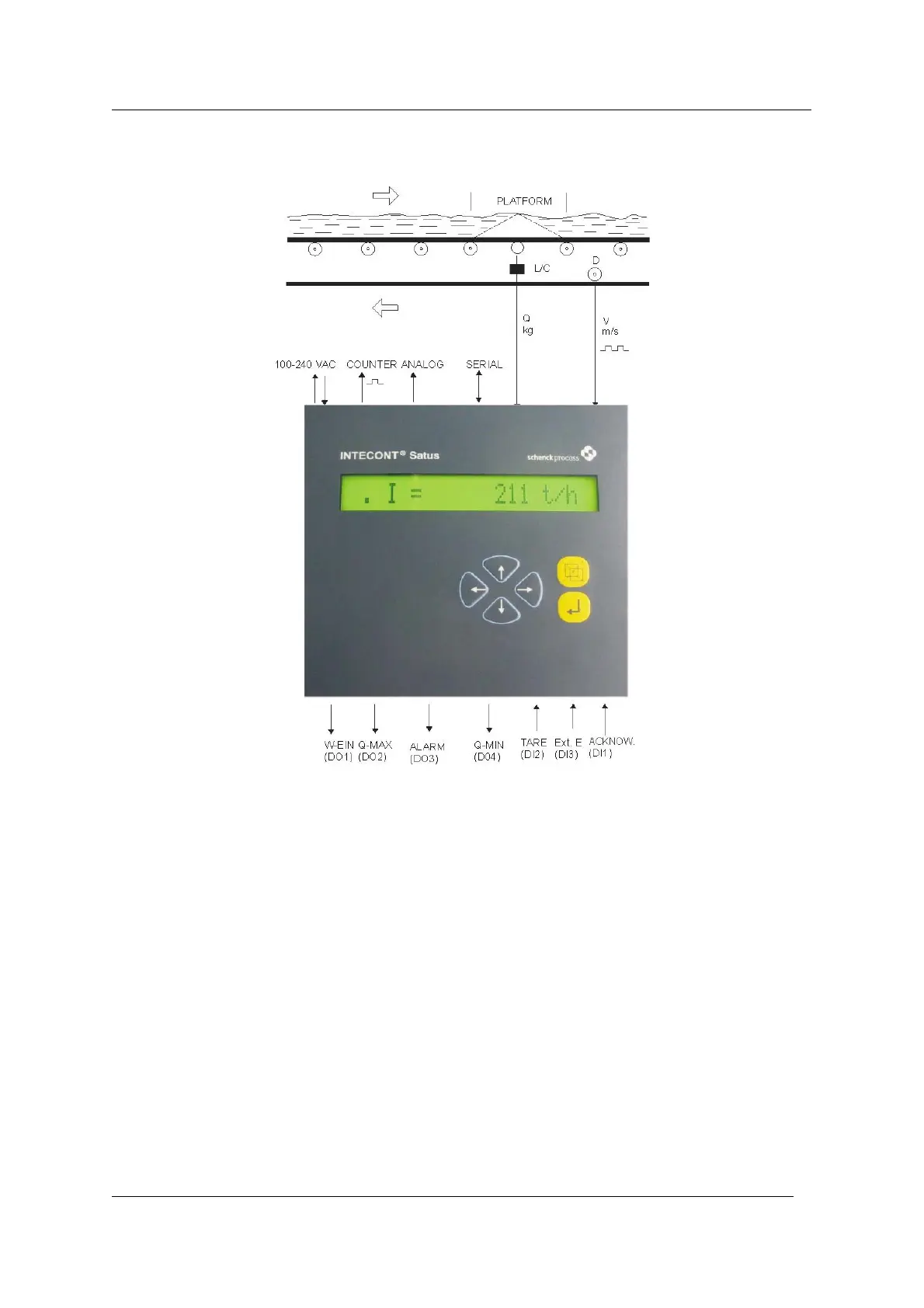

The block circuit diagram shows all inputs and outputs.
100-240VAC = Power supply
COUNTER = Pulse output point for connection of an external totalizing
counter.
ANALOG = Analog outputs for the feed rate
SERIAL = Serial interface for EasyServe and host computer
LC = Load cell for determining belt-load Q
D = Speed sensor for determining belt speed v.
If the belt speed is constant, D can be ignored for simple
measuring tasks.
W-IN (DO1) = Control output for belt drive
Closed = On
Q-MAX (DO2) = Relay output for Q-max monitoring
Open = Limit value exceeded.
ALARM (DO3) = Relay output for alarms
Open = Alarm
Q-MIN (DO4) = Relay output for Q-min monitoring
Open = Limit value exceeded.
