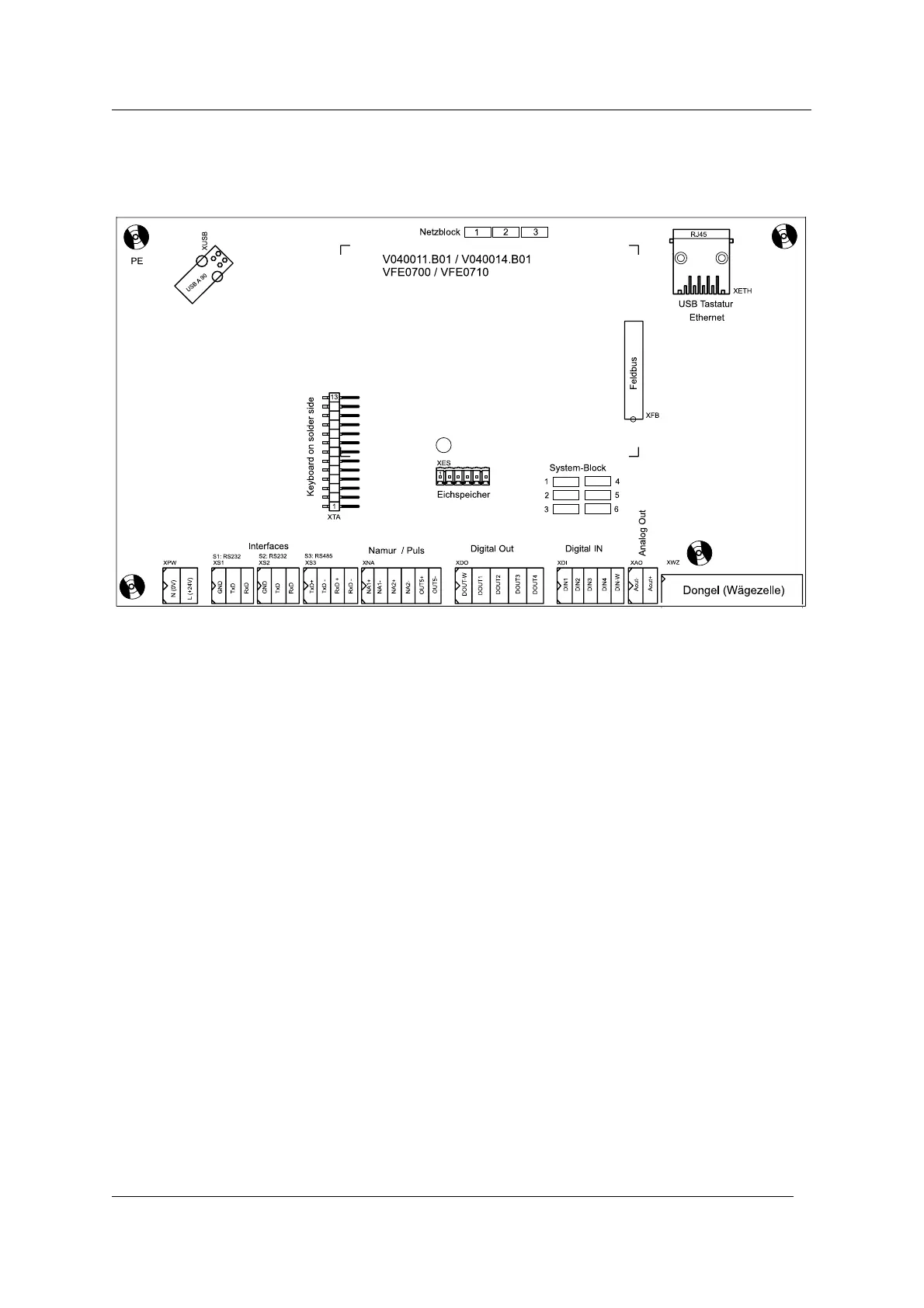

Meaning of the LEDs
System Block:
1 PWRST (green): Supply voltage present
2 Idle: (yellow): Indication of system load. Greater operating time = Lower load
3 Fault (red): Error message
5 SYS-CL (yellow): System clock, blinks in normal operation
4, 6 Diag (green / red): no function
Network Block:
1 Link (green): Ethernet connection available
2 FDX (yellow): Full duplex
3 100 (red): 100 Mbaud (otherwise 10 Mbaud)
Connecting the Device
6 BV-H2346GB / 0833 Operating Manual INTECONT® Satus
© Schenck Process
Abb. 6:
