SciCan STATCLAVE G4 - 9 Left Side Components

101
9. LEFT SIDE COMPONENTS
ITEM
PART #
PART NAME
INVENTORY DESCRIPTION
1
01-115399S
Venturi device (not visible)
Venturi Water Jet Kit, STATCLAVE
2
01-115392S
Condenser check valve
Check Valve, Barb, AF, No Spg
3
01-115401S
Water cooling pump
Water Cooling Pump Comp,
STATCLAVE
4
01-115393S
Steam generator
Steam Generator, 120V, STATCLAVE
4
01-115394S
Steam generator
Steam Generator, 230V, STATCLAVE
5
01-115404S
Blower
Air Blower 120V
5
01-115405S
Blower
Air Blower 230V
6
01-115403S
Heat exchanger
Heat Exchanger
4
3
2
1
9
8
7
6
5
10
11

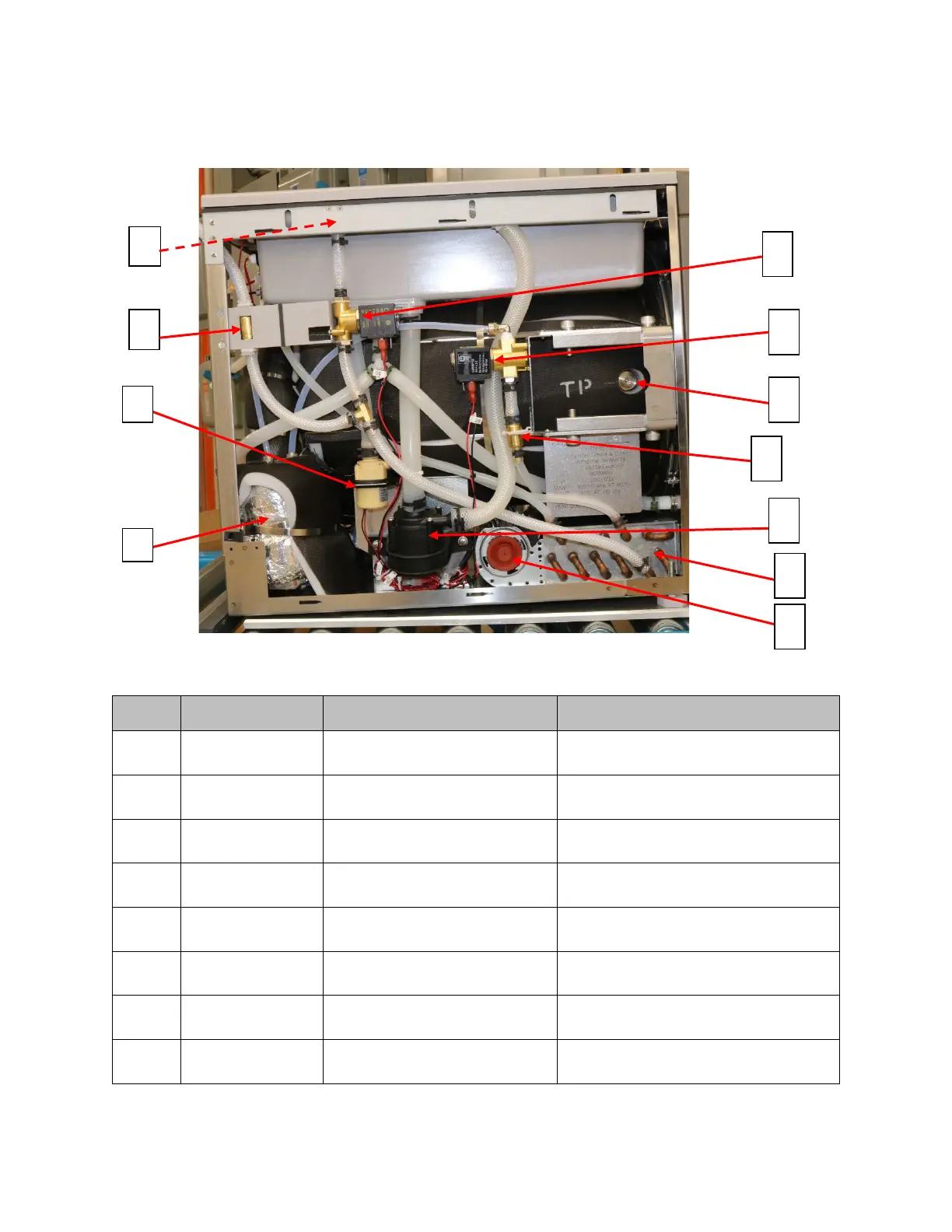

Figure 9-1
