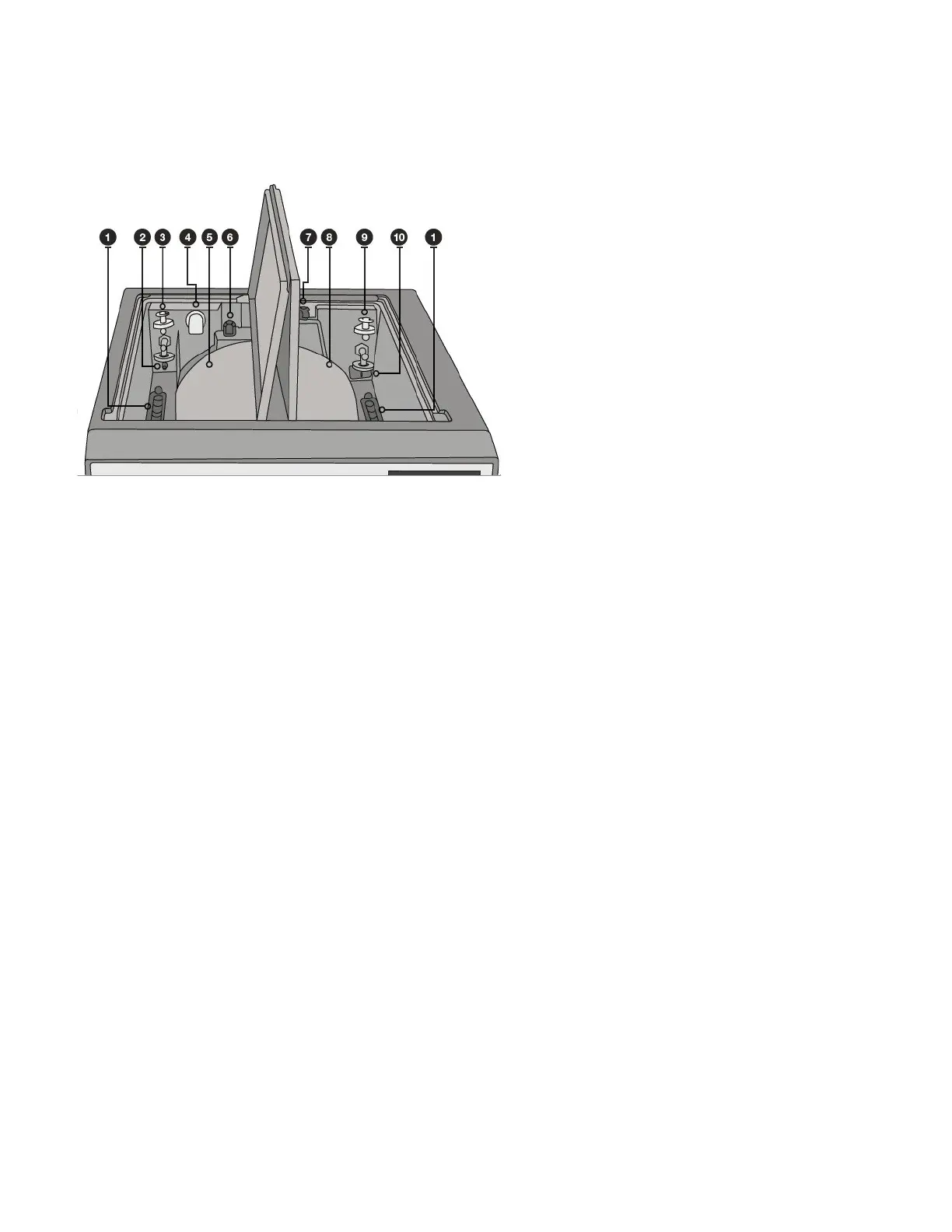

Top of the unit – inside reservoirs
1. Reservoir filters
2. Venturi reservoir temperature
sensor
3. Venturi reservoir level sensors (max.
and min.)
4. Venturi recirculation tap
5. Venturi reservoir
6. Water cooling recirculation tap
7. Clean water fill tap
8. Clean water reservoir
9. Clean water reservoir level sensors
(empty and full)
10. Clean water conductivity sensor
