Electrical connections and power

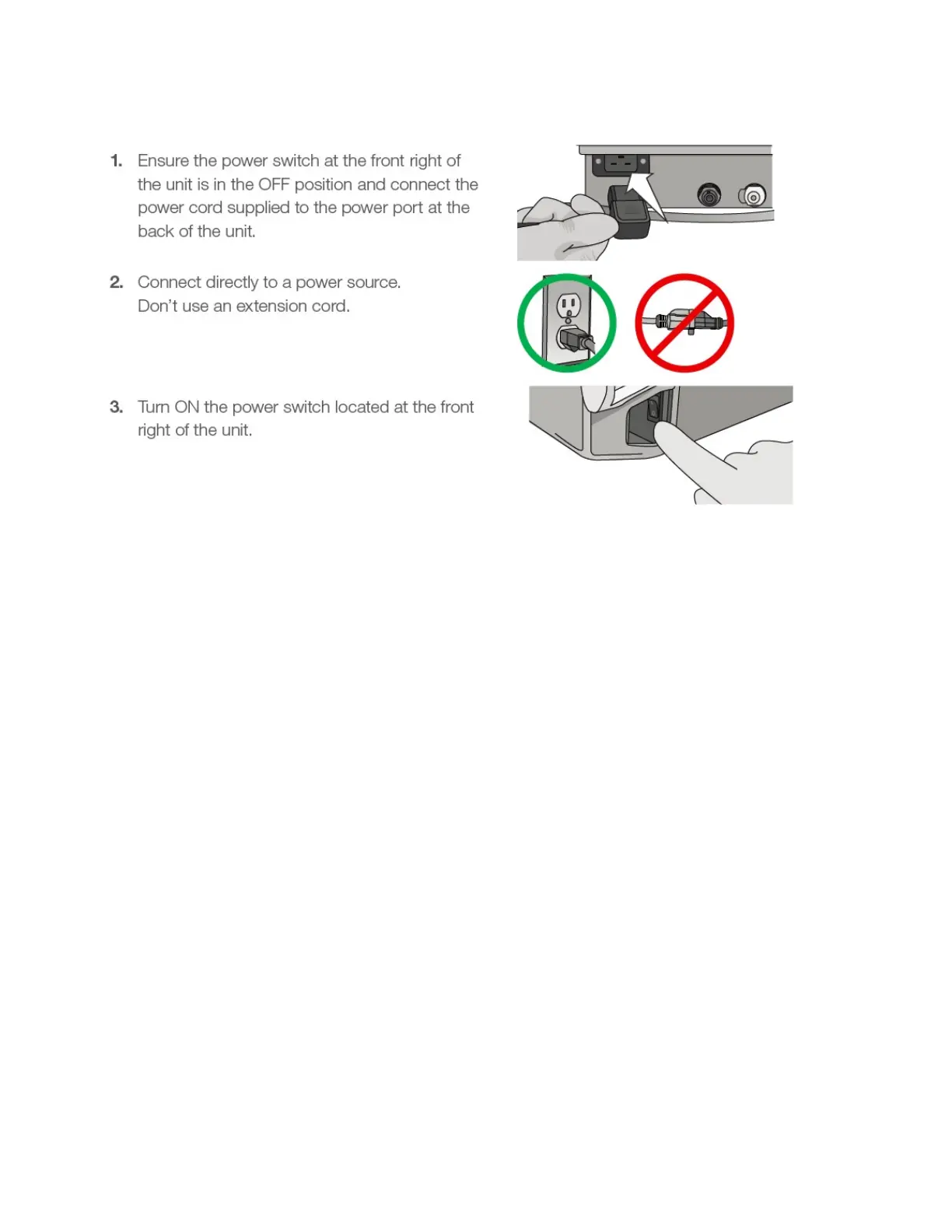

Electrical Connections
To power your unit, use properly grounded and fused power sources with the same voltage rating as
indicated on the serial number label at the back of your STATCLAVE G4.
•
DO use an outlet that is protected by a suitable breaker.
•
DO use a dedicated circuit, single phase 120 V~ 60Hz, 12A or 208-240 V~60Hz, 12A, depending
on the voltage rating indicated on the serial number label at the back of the unit.
Unit Electrical Characteristics:
•
Protection class 1 device.
• Maximum power consumption of the sterilizer is 1,440 Watts for 120V and 2,250-3,000 Watts
for 208-240V.
Connecting the exhaust tubes
IMPORTANT: For the unit to function, BOTH reservoirs must be full and BOTH drain tubes must be
connected.
The STATCLAVE G4 uses water from the Venturi reservoir to generate vacuum draws at the beginning
and end of each cycle. For the unit to operate, BOTH the clean water reservoir and the Venturi reservoir
must contain the minimum required water levels.
When the chamber releases steam it travels through the condenser and drains from the condenser
exhaust tube. Excess water in both the Venturi reservoir and the clean water reservoir drains from
the reservoir overflow tube. BOTH elbow fittings at the back of the unit must be connected to a water
draining system.
