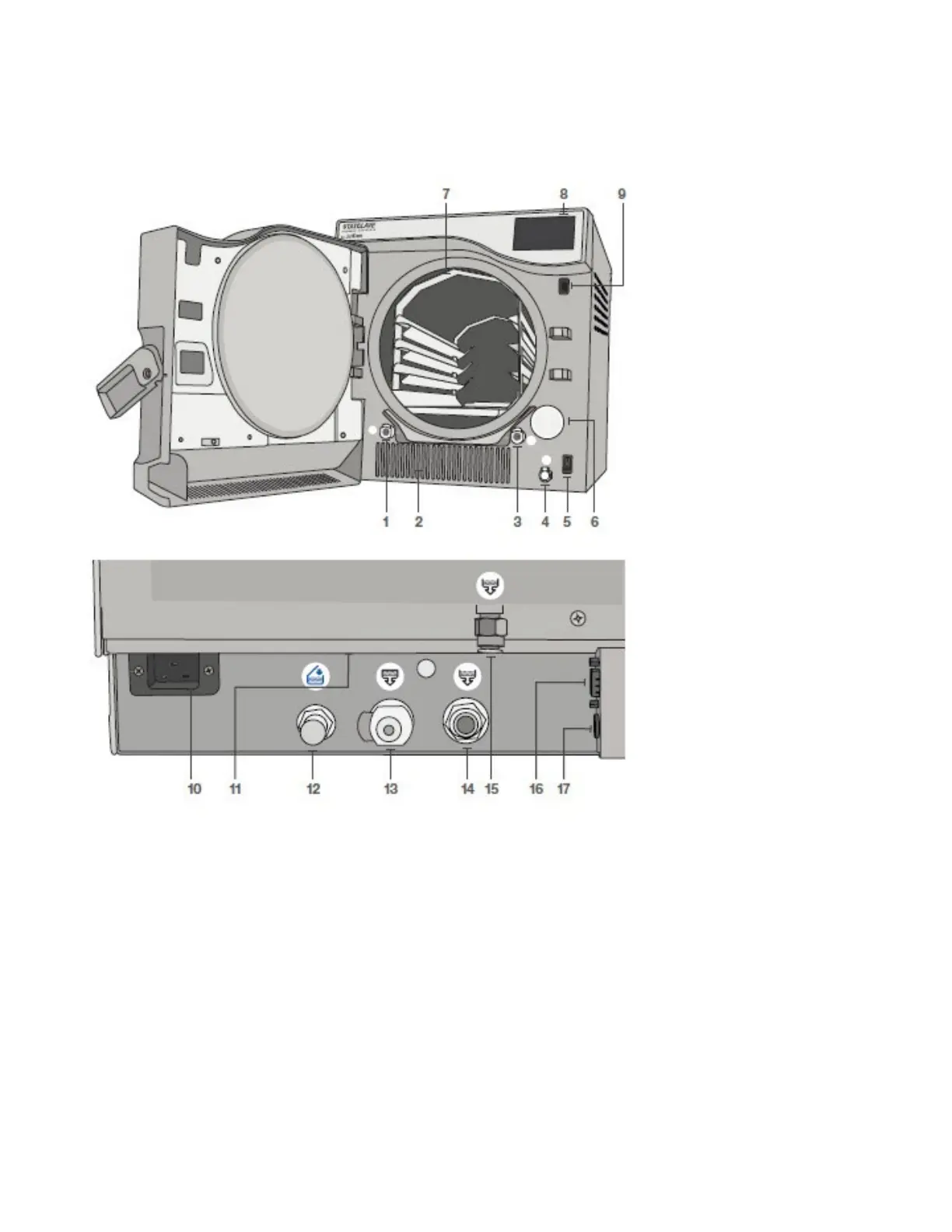

Front and back of the unit
1. Venturi reservoir drain quick-connect
(OUT)
2. Warm air exhaust
3. Clean water reservoir drain quick-connect
(OUT)
4. Clean water reservoir fill quick-connect
(IN)
5. Power switch
6. Bacteriological filter (bacteria-retentive air
filter)
7. Chamber rack
8. Touchscreen
9. USB port
10. Power cord input
11. Ethernet port (not visible)
12. Auto fill port for clean water reservoir
13. Condenser drain port (to drain for
shipping)
14. Overflow drain port for reservoirs
15. Exhaust drain port
16. RS232 port
17. Power port for external fill pump (option)
