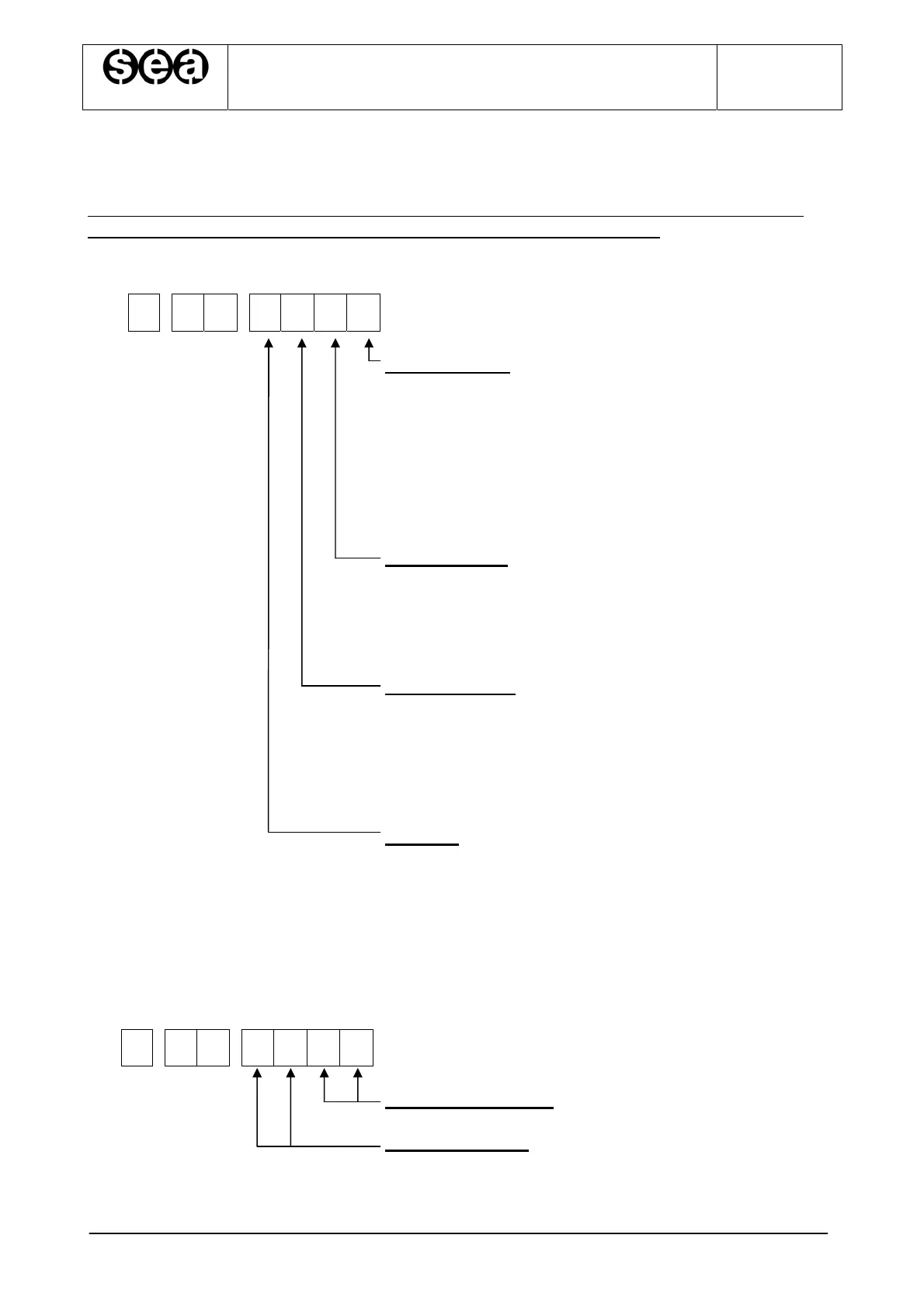

3.5.PROGRAMMING THE LIFT, OPERATION, SELECTOR.
In order to be able to modify the parameter values, it is necessary to disconnect the FA
automatic valve while, to only display the same, this is not necessary.
DG0 DG1 DG2 DG3 DG4 DG5 DG6
1 0 0
MASTER / SLAVE
0= Single Lift
1= Master control panel for Duplo with two signalings
‘Coming’
2= Master control panel for Duplo with one signaling
‘Coming’
3= Slave control panel for Duplo
4= Not used
SELECTOR TYPE
0= Shaft with magnetic switches without safety circuit
(CS1)
1= Shaft with magnetic switches with safety circuit
(CS1)
OPERATION TYPE
0= APB
1= Not enabled
2= Down collective
3= Up and down Collective
4= Pick-Up
LIFT TYPE
0= 1 speed Electric lift
1= 2 speed Electric lift
2= 2 speed Electric lift with ACVV
3= Electric lift for Inverter without encoder
4= Electric lift for Inverter with encoder
5= Hydraulic lift
DG0 DG1 DG2 DG3 DG4 DG5 DG6
1 0 1
NUMBER OF SERVICES
NUMBER OF STOPS
