SETRONIK1 Pagina 35 di 54
3.11.P
ROGRAMMING OF SERVICES.
In order to modify the parameters values, it is necessary to disconnect the FA automatic
valve while, to only display the same, this is not necessary.

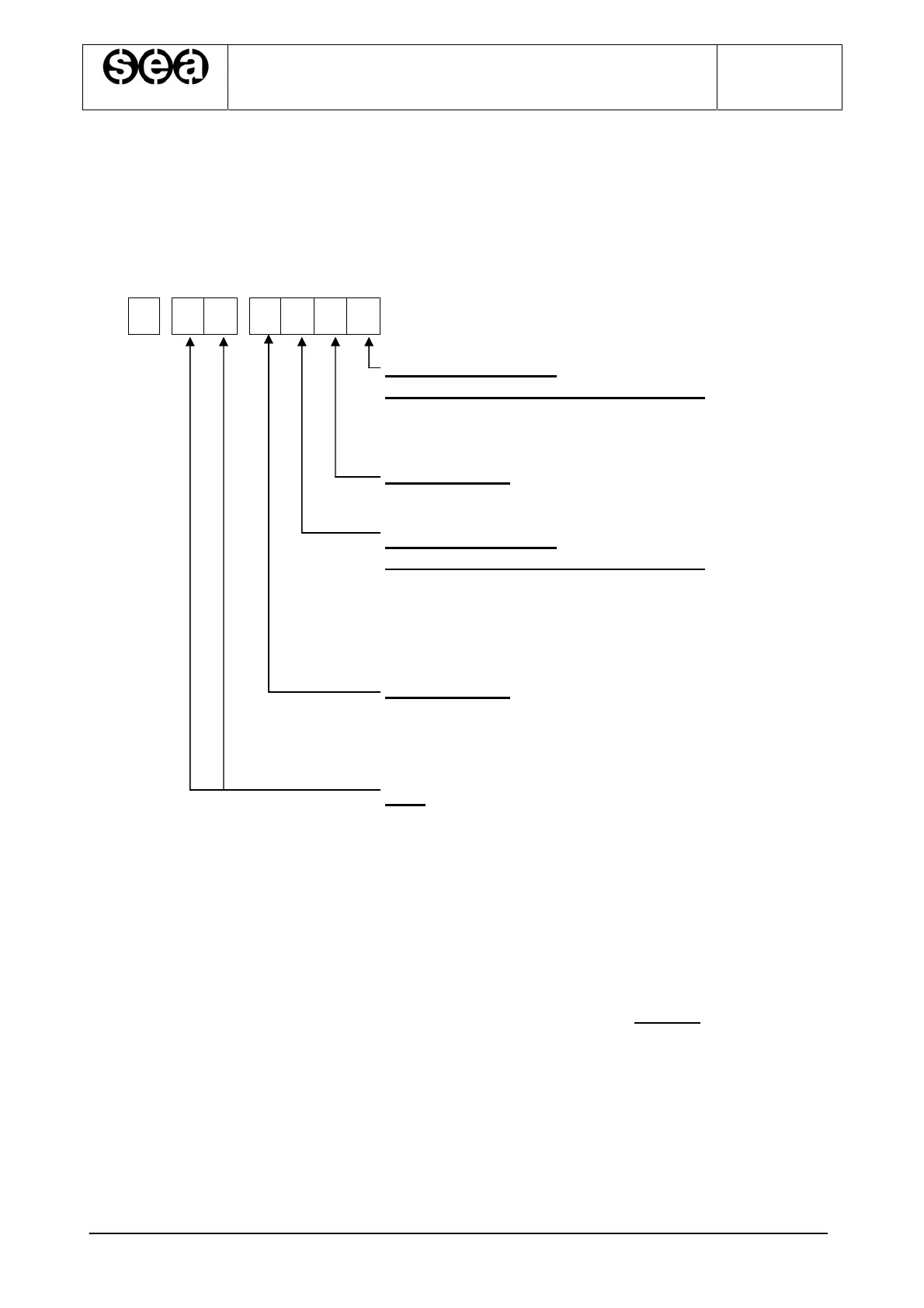

DG0 DG1 DG2 DG3 DG4 DG5 DG6
2
TYPE OF OPENING AND
DOOR STATUS IN PARKING FOR B ACCESS:
See Type of Opening and Door status in parking for A
Access
B ACCESS TYPE:
See A access Type
TYPE OF OPENING AND
DOOR STATUS IN PARKING FOR A ACCESS:
0= Selective, doors open parking
1= Simultaneous, doors open parking
2= Selective, doors closed parking
3= Simultaneous, doors closed parking
A ACCESS TYPE:
0= There is no service
1= Simplex Access (*)
2= Duplo Access (*)
STOP
01= Stop1
02= Stop2
03= Stop3
04= Stop4
.
.
.
12= Stop12
(*) Simplex / Duplo Access= The Access has to be programmed Simplex if the relative
stop is served by only one lift (in this case the Simplex access has to be
programmed on this lift);
The access has to be programmed Duplo if the relative stop is served by both the
lifts (in this case the Duplo Access has to be programmed on both the lifts).
To Next Page
