SEA SYSTEMS
INSTALLATION AND USE MANUAL
CONTROL PANEL and PREWIRED SYSTEM STK1
For Electric and Hydraulic Lifts
MSTK12-GB
Rev.01
30/12/05
SETRONIK1 Pagina 43 di 54
4.4.C

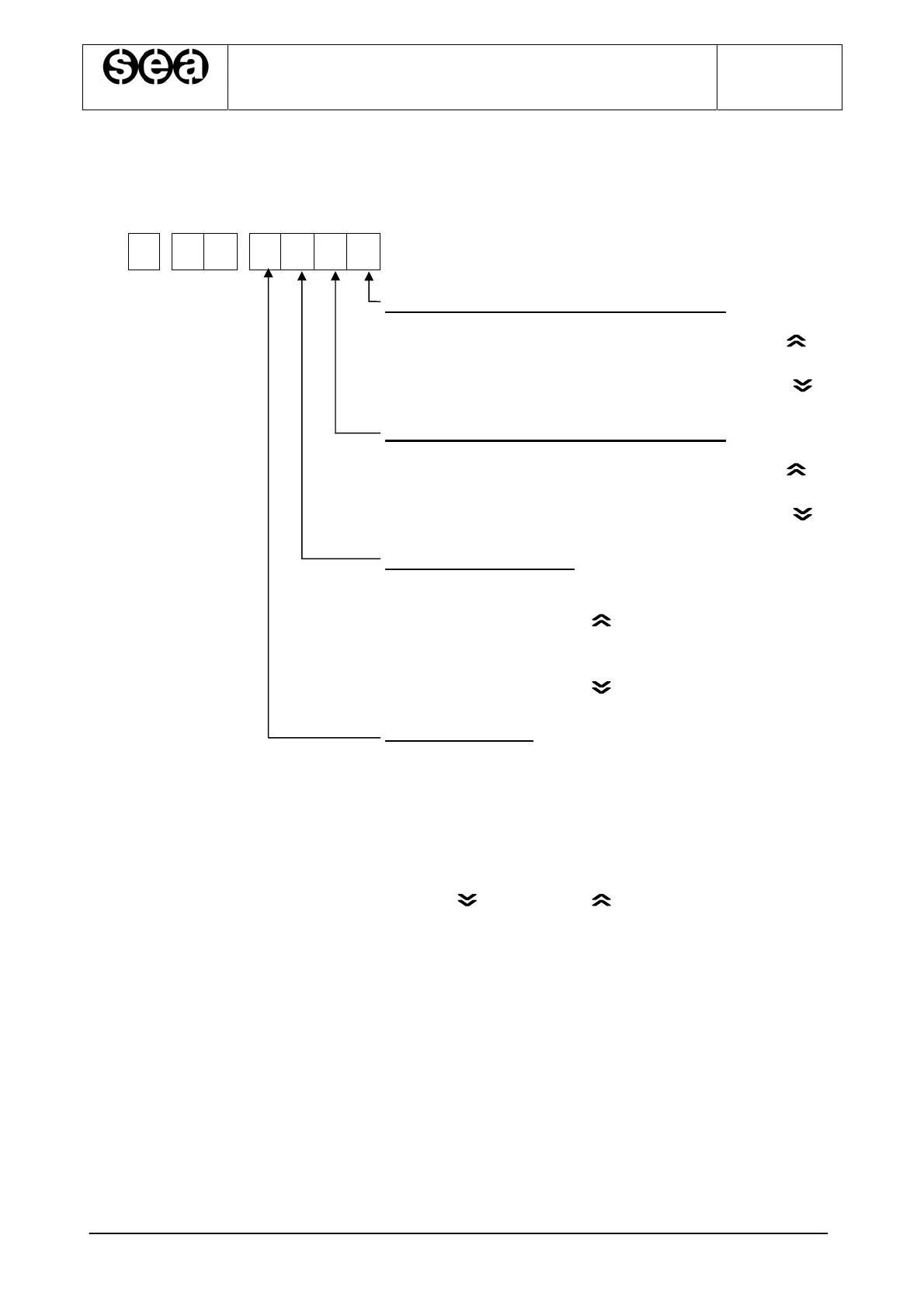

OMMANDS FOR LIFT OPERATION IN THE MACHINE ROOM:
DG0 DG1 DG2 DG3 DG4 DG5 DG6
0
0 9
B OPERATOR CLOSING\OPENING OPERATION:
A=Doors opening in progress, or already open.
To perform the closing, select DG6 and press .
C=Doors closing in progress, or already closed.
To perform the opening, select DG6 and press
A OPERATOR CLOSING\OPENING OPERATION:
A=Doors opening in progress, or already open.
To perform the closing, select DG5 and press .
C=Doors closing in progress, or already closed.
To perform the opening, select DG5 and press
OUTMOST FLOORS CALL:
1=Call at lower outmost floor in progress.
To perform the call to the upper outmost floor,
select DG4 and press .
2=Call at upper outmost floor in progress.
To perform the call at the lower outmost floor,
select DG4 and press .
AUTOMATIC CALLS:
0=Function disabled. The lift works normally.
1=Calls on all floors in automatic mode, it stops if
DG3=0 or if the lift goes Out-of-service.
2=Calls on all floors in automatic mode, it stops if
DG3=0 or if any type of failure occurs.
3=It controls the car motion in low speed.
Position on DG4
Press to go down, to go up.
(For these commands the safety devices must be
closed and the lift must not be in maintenance
condition)
