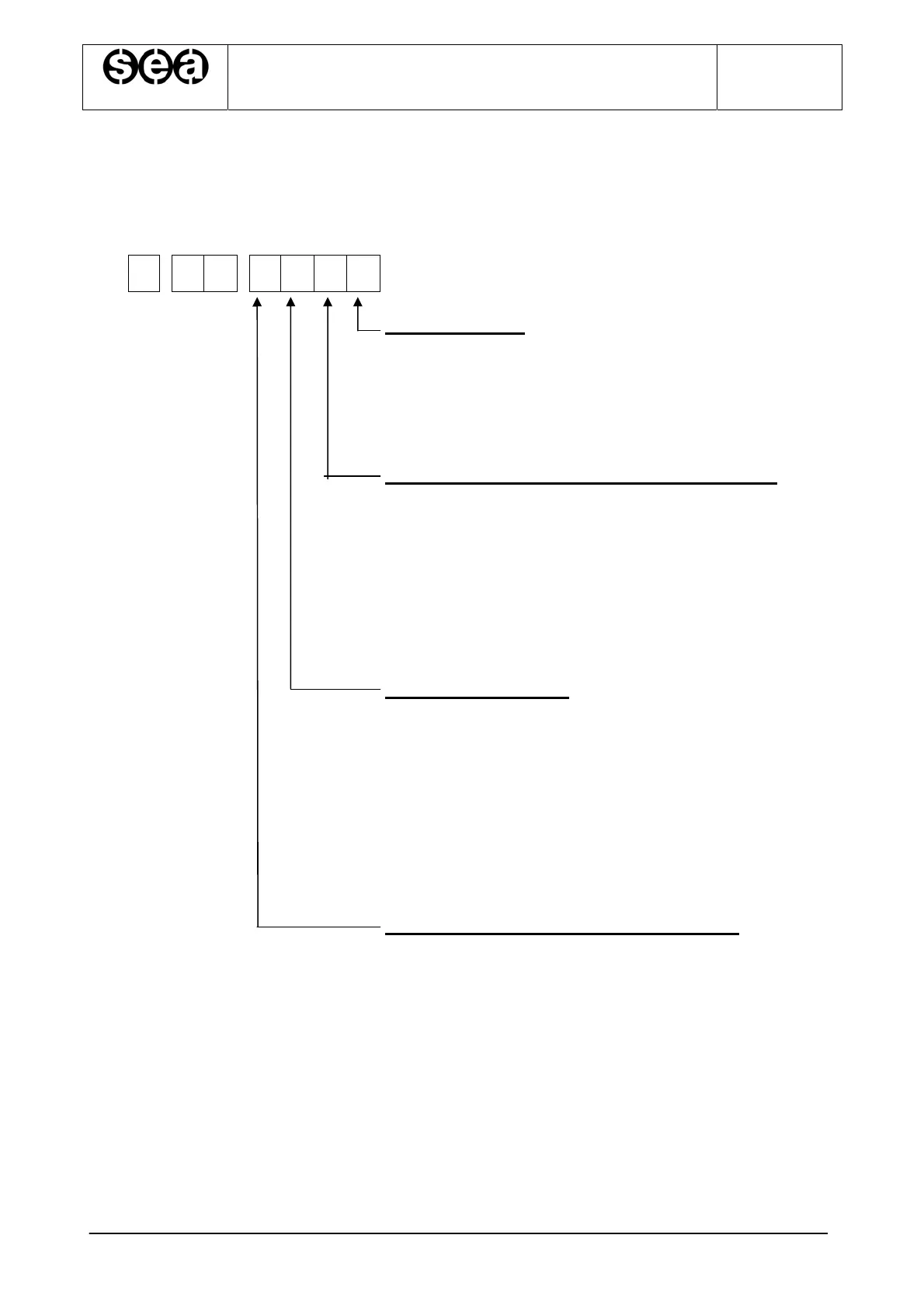

3.9.PROGRAMMING OF SPEED AND STOP MODE DURING INSPECTION, MOVABLE
PLATFORM
, ADVANCE DOORS OPENING, RE-LEVELLING, GONG
DG0 DG1 DG2 DG3 DG4 DG5 DG6
1
0 7
GONG ACTIVATION
0= Upon speed change only for external calls
1= On floor only for external calls
2= Upon speed change for internal or external calls
3= On floor for internal or external calls
ADVANCE DOORS OPENING AND FLOOR LEVELLINGS
0= No function enabled
1= Advance door opening enabled during run, safety
circuit required (CS1)
2= Floor levelling enabled, safety circuit required
(CS1)
3= Advance doors opening and floor levelling, safety
circuit required (CS1).
MOVABLE PLATFORM (*)
0= NA contact, in APB operation when closed it
disables external calls
1= NA contact, in APB operation and upon call when
closed it enables internal calls
2= NC contact, in APB operation when open it
disables external calls
3= NC contact, in APB operation and upon call when
open it enables internal calls
SPEED AND STOP MODE DURING MAINTENANCE
0= Low speed, stop on resetters
1= High speed, stop on resetters
2= High speed, stop on pre-limit switches
3= Low speed, stop on pre-limit-switches
(*) MOVABLE PLATFORM= If there isn’t the movable platform, program to 0
