Secutron MR-2306-DDR User Manual

19
Mechanical Installation

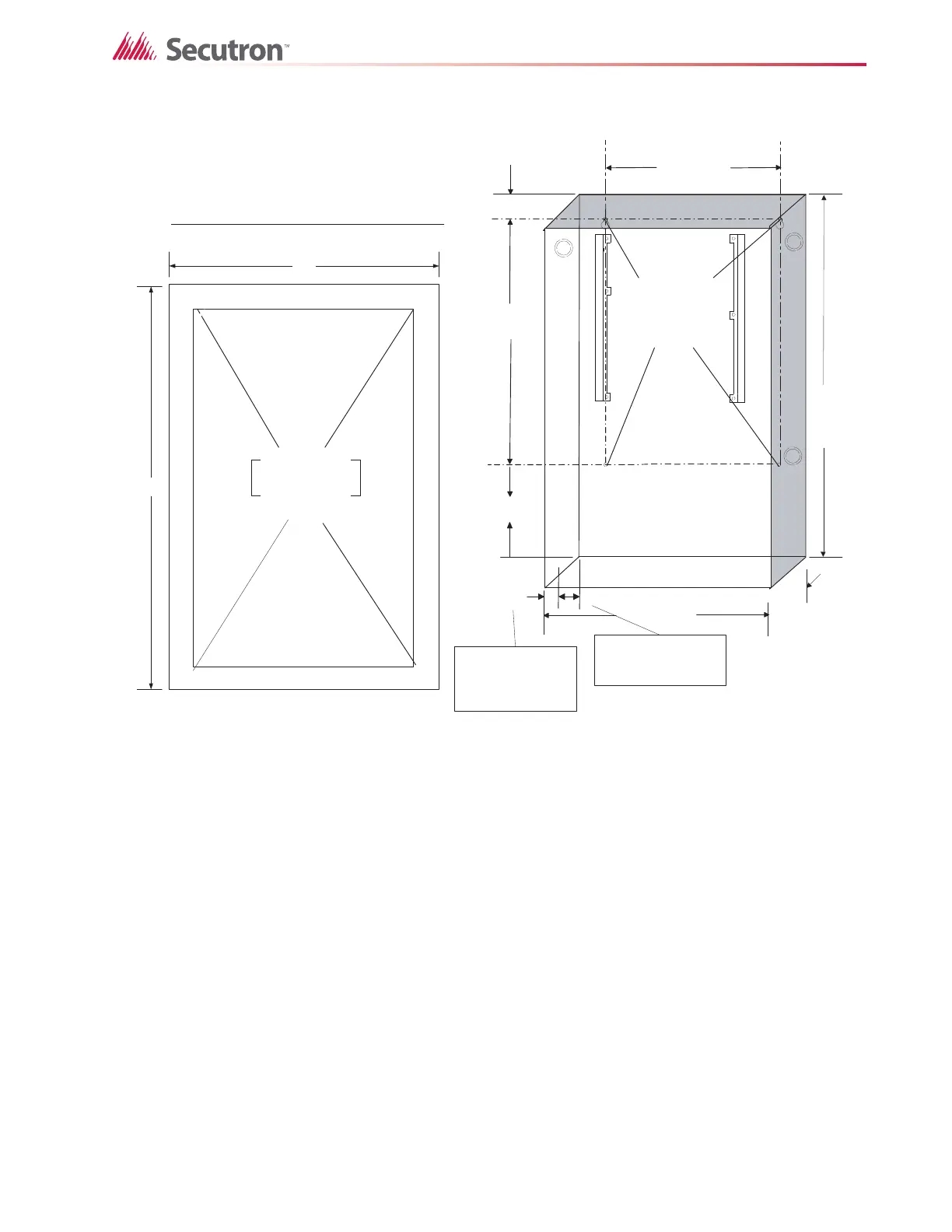

Figure 4 MR-2306-DDR/MR-2306-DR Box dimensions, mounting and trim ring
17"
22.5"
Adhere trim ring to
wall surface around
the MR-2306 backbox.
PLACE MR-2306-FT TRIM RING OVER BACKBOX
14.5"
4
.
5
"
11"
20.0"
1.5"
5.425"
14.5"
3.5"
1"
3.5" is the maximum depth
for semi-flush mounting
using the flush trim ring
1" is the minimum depth
above the wall required
for semi-flush mounting
using the flush trim ring
4 Mounting
Holes for
Surface
Mounting
