Sega Project DIVA Arcade Future Tone - Page 100

LCD
91
10

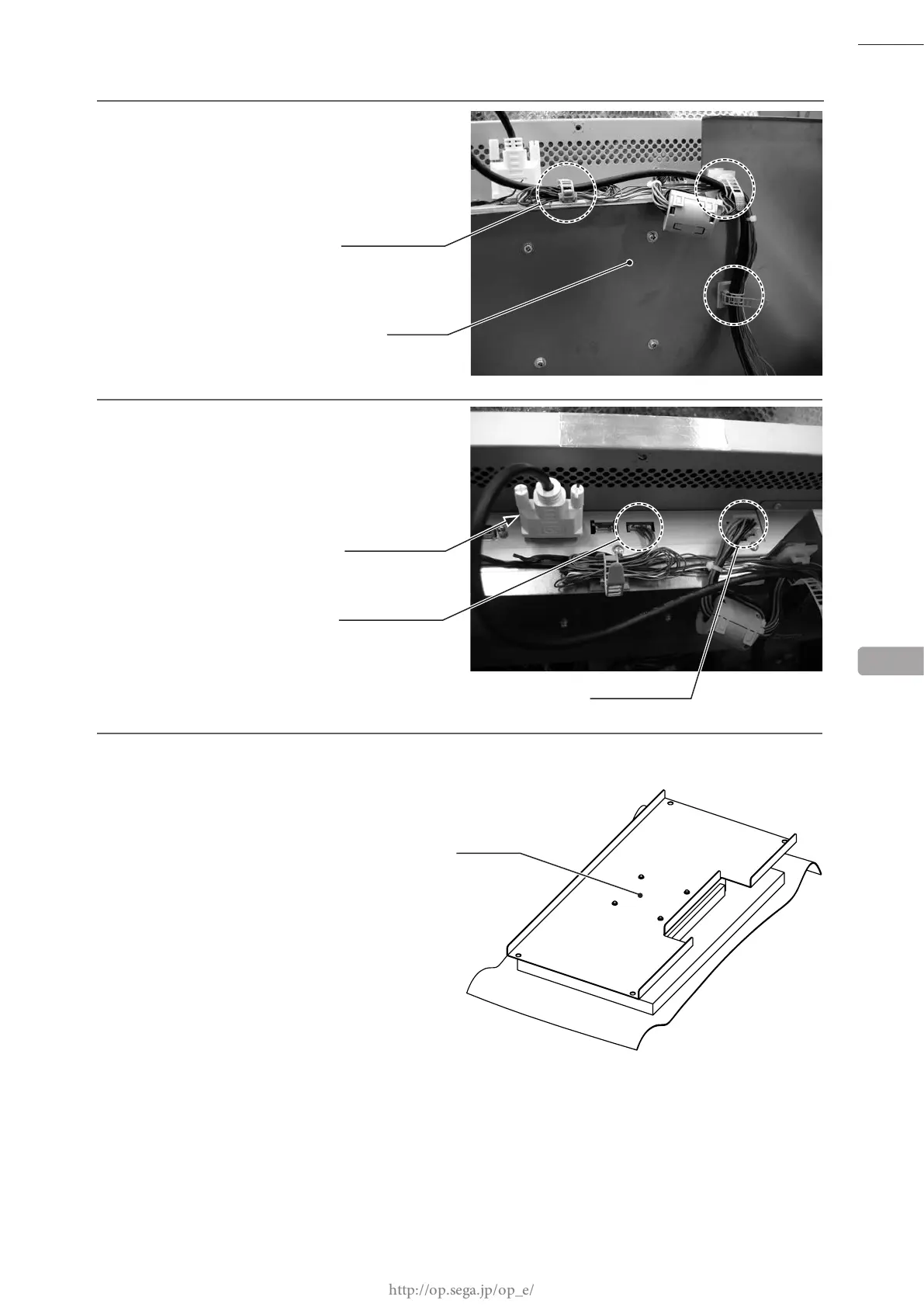

Undo 3 cord clamps on the rear face of the
LCD unit.
11
Disconnect the 3 connectors.
12
Take off the LCD unit from the cabinet and then place it screen side facing down on a at surface. Lay it
on protective material to protect the screen.
13
LCD UNIT
5557MOLEX8P
LCD UNIT
CONNECTOR (1)
DVI
CONNECTOR (1)
ZR9P
CONNECTOR (1)
CORD CLAMP (3)
