Sega Project DIVA Arcade Future Tone - Page 76

TOUCH SLIDER
67
11
8

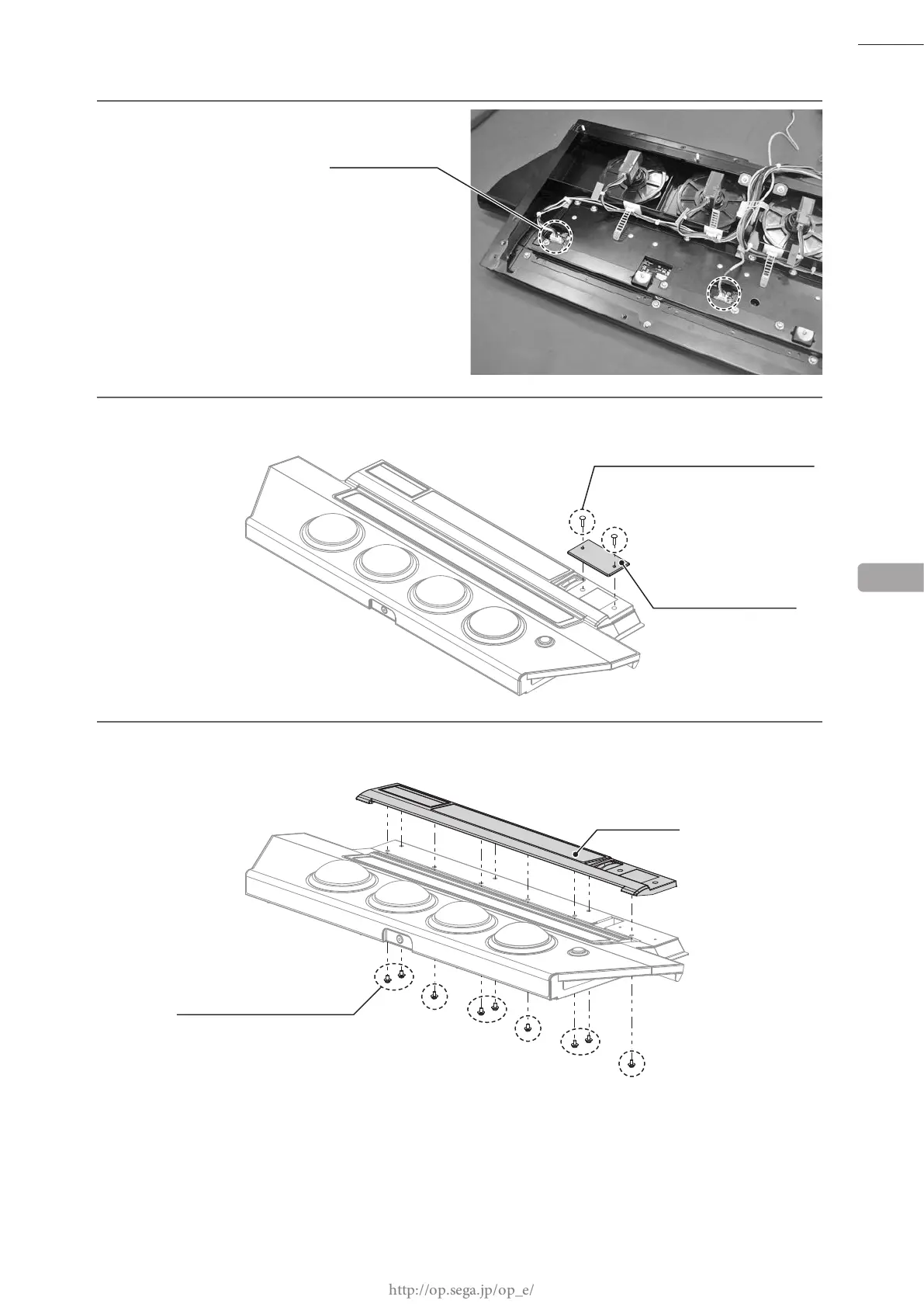

Disconnect the 2 connectors.
9
Remove 2 tamperproof screws and take off the denomination plate.
10
Remove 9 screws and take off the entry base.
CONNECTOR (2)
XA3P, XA4P
DENOMINATION PLATE
ENTRY BASE
TAMPERPROOF SCREW (2), chrome
M4 x 16
SCREW (9)
M4 x 8, w/at & spring washers
