Operator control
8.1 Device interface
SENTRON PAC4200
116 System Manual, 09/2009, A5E02316180B-02
Information structure and navigation
(1) Displaying measured variables
(2) "MAIN MENU" menu
(3) "SETTINGS" menu
(4) Submenu. Some device settings group the fields in submenus
(5) Displaying the device settings
(6) Edit mode of the device settings

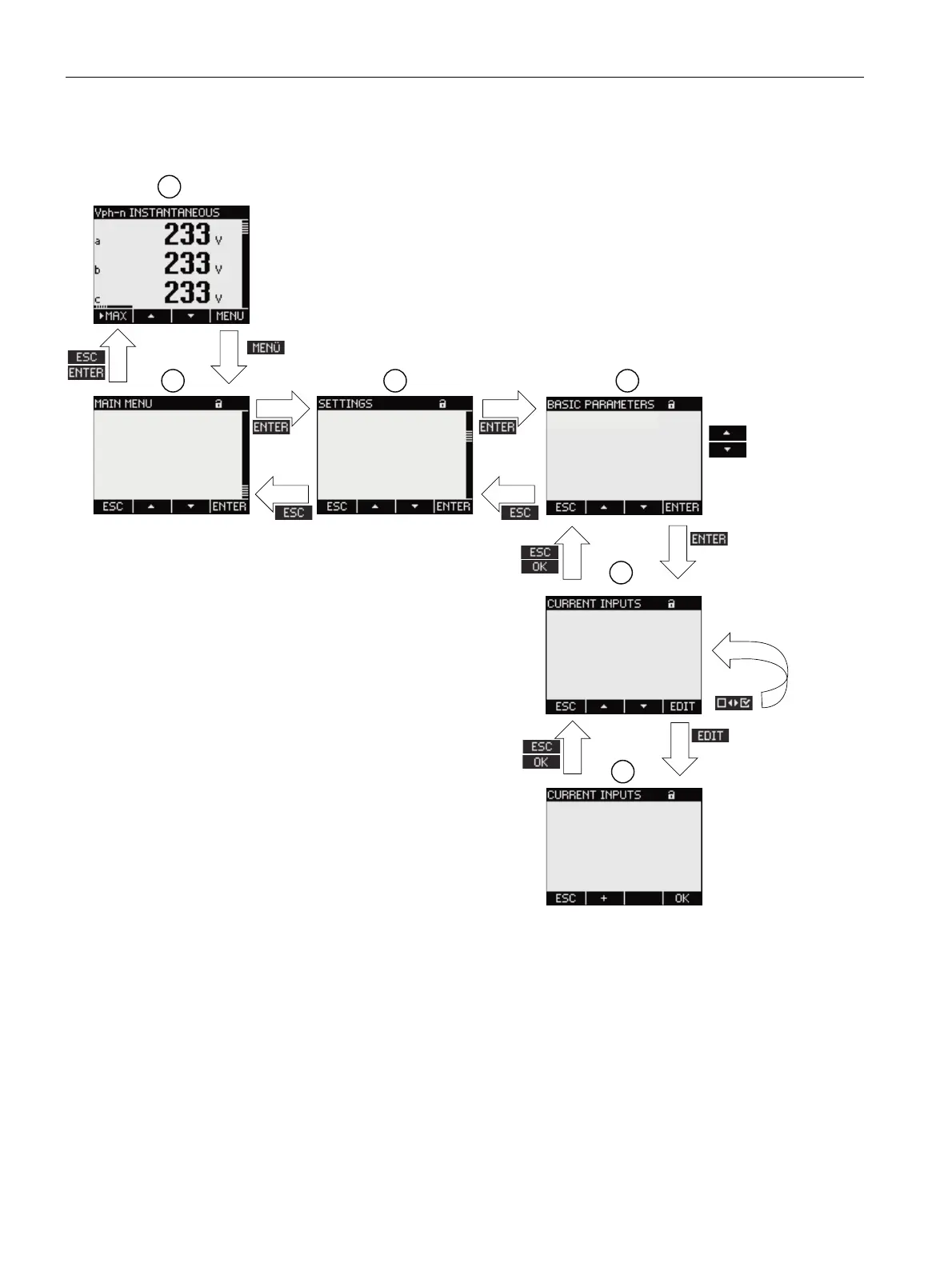

Figure 8-2 Information structure and navigation
